Trou027 Trouville bourg
WN · StP.Gruppe Trouville · AOK 15 Haute-Normandie · France
Wn Trou027 Trouville bourg
This position seems to be an accommodation set of two R622 twin group bunkers holding around 30men each. The 1948 air photo shows that a lot of clearing up after the war has started. Trenches filled in, bunkers starting to have houses built around them. Also in the photo shows some circles that may have been two or three anti-aircraft guns.

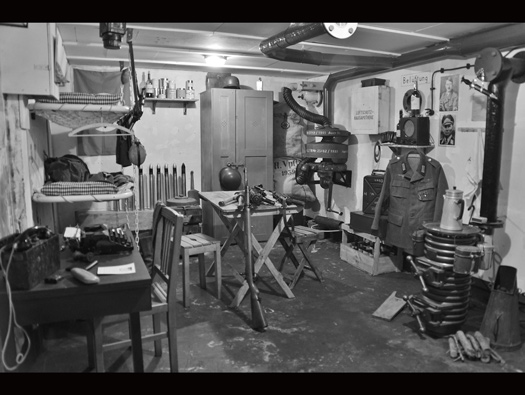

Photo: showing what it may have looked like in one of the bunkers.
Wn Trou027 Trouville bourg
Wn Trou027 Trouville bourg
2 x R622 twin group bunkers.

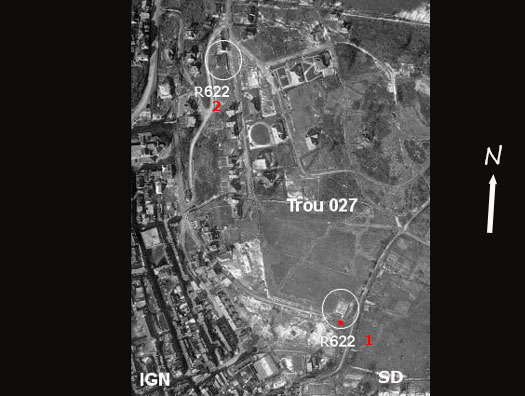

The 1948 air photo of this part of Trouville. As far as we know there are two R622 twin group bunkers and quite far apart.
IGN from SD
Wn Trou027 Trouville bourg

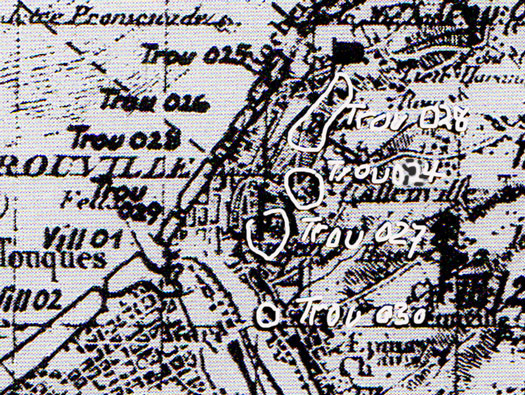

1944 plan of the defences of Trouville.
1944 plan
Wn Trou027 Trouville bourg

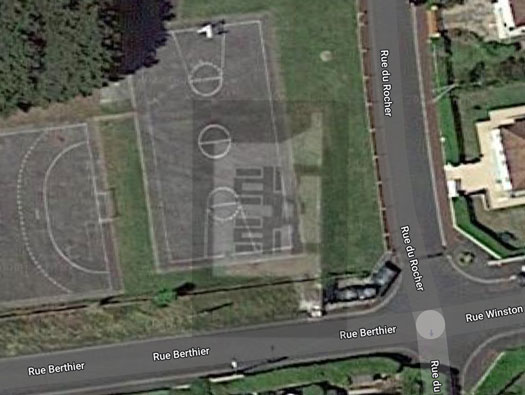

Google earth photo with an overlay of a plan of an R622 bunker. The only parts to be found today are part of the Tobruk and a piece of the back wall. There is also a circular piece of concrete which may be a radio aerial coming out of a bunker, but we see no bunker there.
Wn Trou027 Trouville bourg

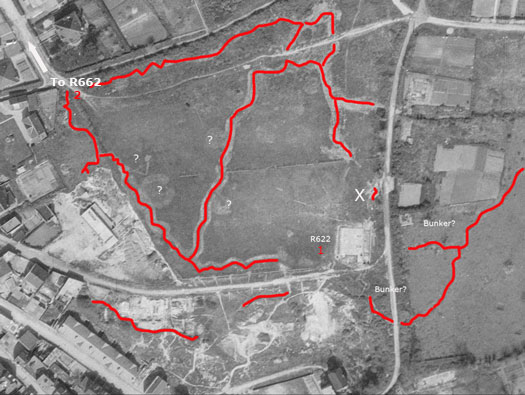

The 1948 air photo showing the R622 (1), what looks like a lot of digging below it and trenches radiating around the area. X is where the round object is and there are also what also looks like two more bunkers. In the field seems to show three large circular objects and a V shaped item.
02 November 2010
Wn Trou027 Trouville bourg

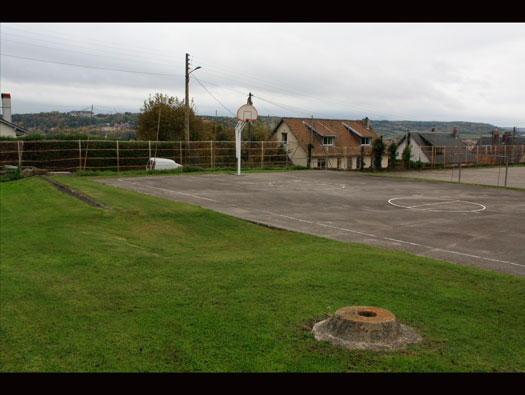

This could be a radio aerial socket??
02 November 2010
Wn Trou027 Trouville bourg

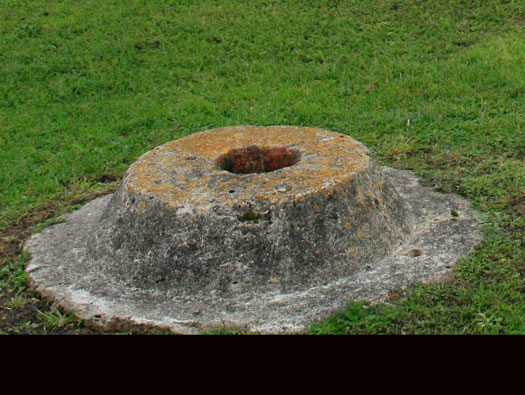

A closer look at the socket.
02 November 2010
Wn Trou027 Trouville bourg

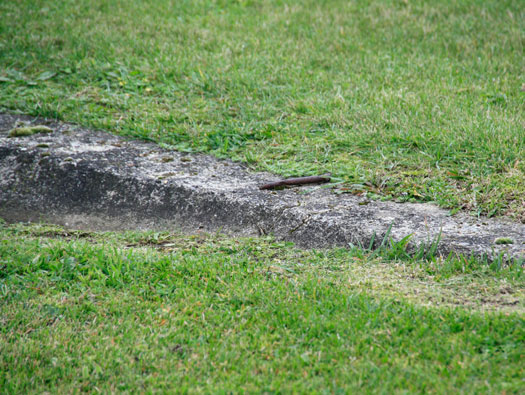

Reinforcement rods left sticking out of the concrete to hook camouflage netting on.
02 November 2010
Wn Trou027 Trouville bourg

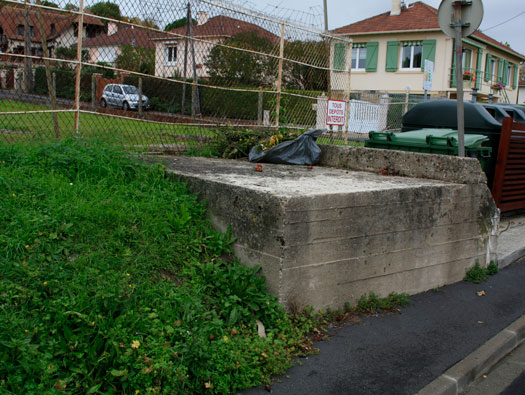

This is an extension that holds a Tobruk defence which can have a machine gun on a turning mounting
02 November 2010
Wn Trou027 Trouville bourg
This is a plan of an R622 with the Tobruk on the right side, here the Tobruk is on the left side. Two entrances coming into a gas lock and then two doors into the two crew rooms which could hold around 15men. So 30men per bunker on folding wire mesh beds, a heater on each side and a hand powered anti-gas Hes pump, to suck in filtered air from outside, slightly pressurise the bunker to keep out gas.
plan kurt
Wn Trou027 Trouville bourg
Details
02 November 2010
Wn Trou027 Trouville bourg

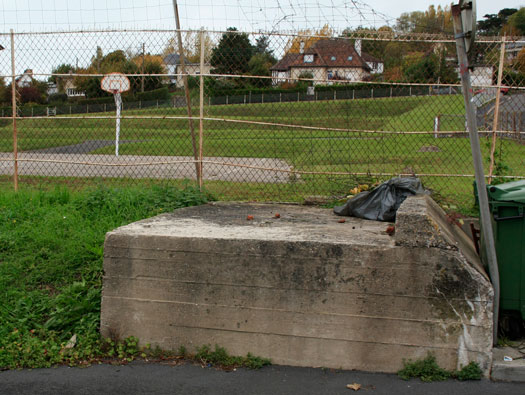

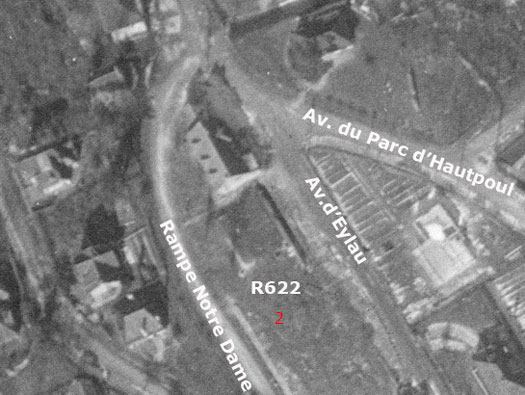

This is the second R622 (2) situated just along the road to the west. It may be part of Trou027?
IGN 1948
Wn Trou027 Trouville bourg
