Trou08 Criqueboeuf plage

WN · StP.Gruppe Trouville · AOK 15 Haute-Normandie · France

Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Criqueboeuf plage is a small promontory to the east of Villerville and can be accessed from along the beach from Villerville or parking in Criqueboeuf and walking down to the beach.

SHM

5cm KwK 39 L/60.
5cm KwK 39 L/60.
Schnabelstand, (Vf observation).
Schnabelstand, (Vf observation).
Skoda 4.7cm gun.
Skoda 4.7cm gun.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

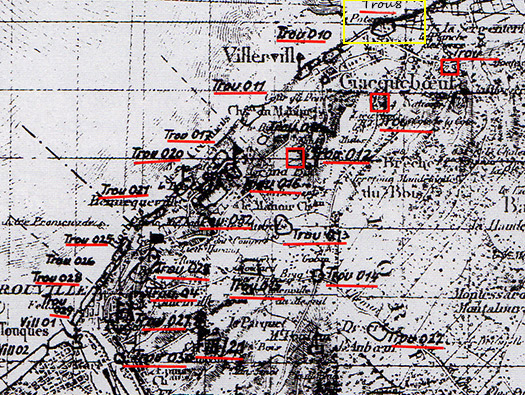

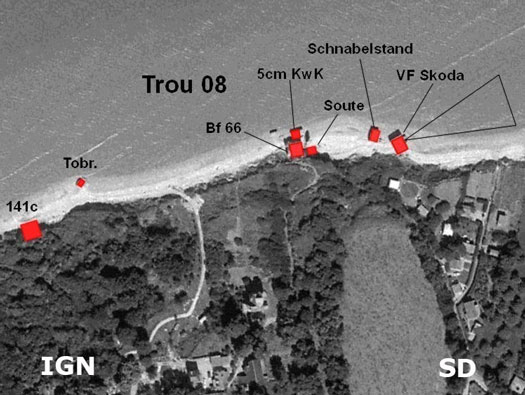

Plan of most of StP Gruppe Trouville, K.V.A.'G'.

Map

Wn Trou08 Criqueboeuf plage
Wn Trou08 Criqueboeuf plage
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

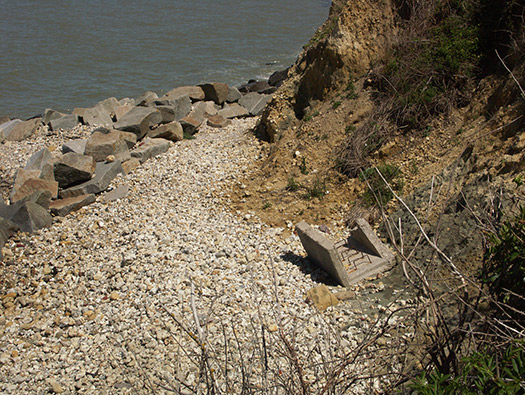

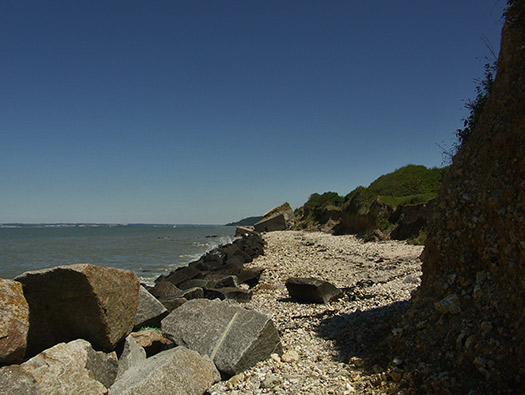

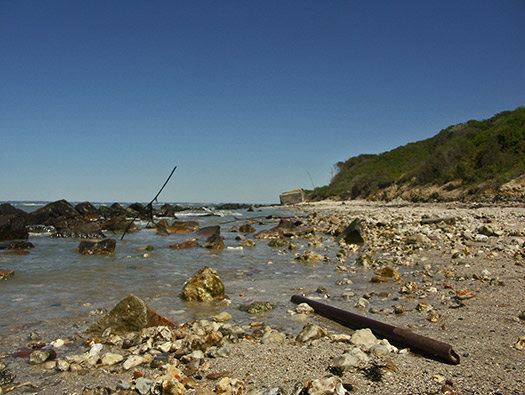

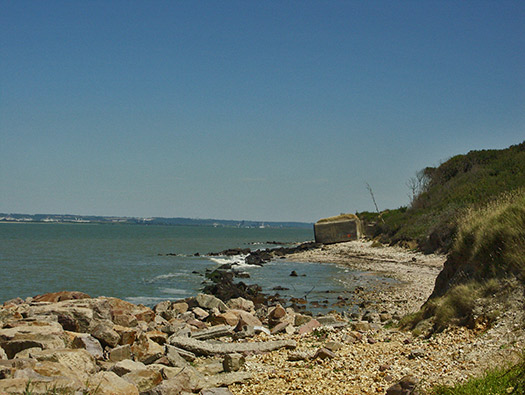

The walk from Villerville with debris all over the beach.

22 July 2008

Even a fossil.
Even a fossil.
Barbed wire.
Barbed wire.
Foundations.
Foundations.
Pipes.
Pipes.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

1 x Vf Skoda bunker (SK Pak).
1 x Schnabelstand, (Vf observation).
1 x R141c (Gruppe bunker).
1 x Vf58c Tobruk.
1 x NR1694 Ringstand 5cm KwK.
1 x SK. (Bf66) for 5cm Kwk.
1 x 4.7 Pak K.36(t).
1 x 5cm KwK L/60 Pak gun.

22 July 2008

Vf58c plan.
Vf58c plan.
NR1694 Ringstand.
NR1694 Ringstand.
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker.

22 July 2008

A lovely old side valve engine.
A lovely old side valve engine.
Wn Trou08 Criqueboeuf plage
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker.

22 July 2008

A lovely old side valve engine.
A lovely old side valve engine.
Wn Trou08 Criqueboeuf plage
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

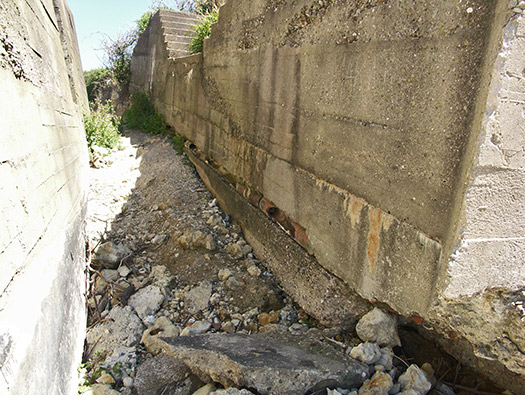

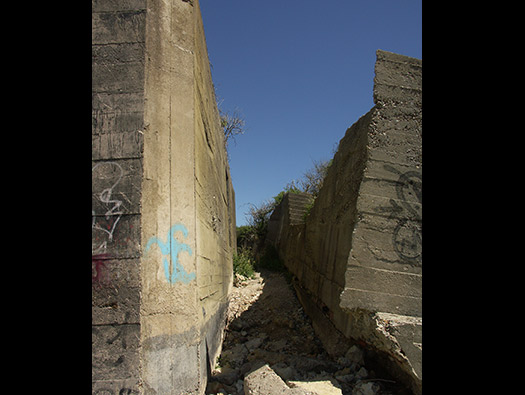

R141c Gruppe bunker on the left and the protective wall on the right. Some may have a Tobruk actually fitted into the wall to protect the rear door.

22 July 2008

here
here
Alarm!
Alarm!
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

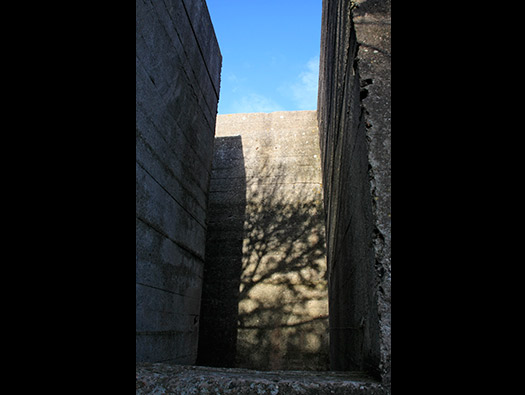

R141c Gruppe bunker a closer look at that wall.

22 July 2008

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

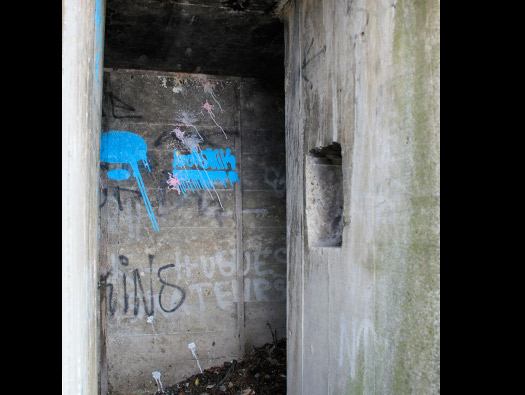

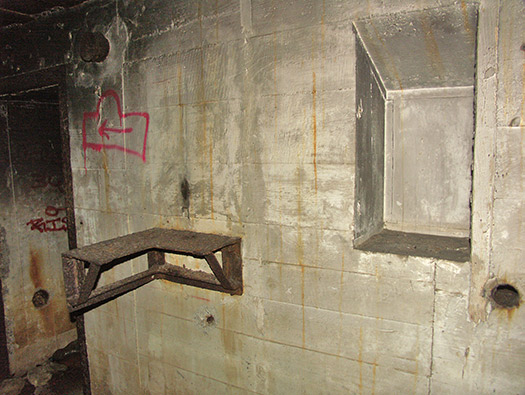

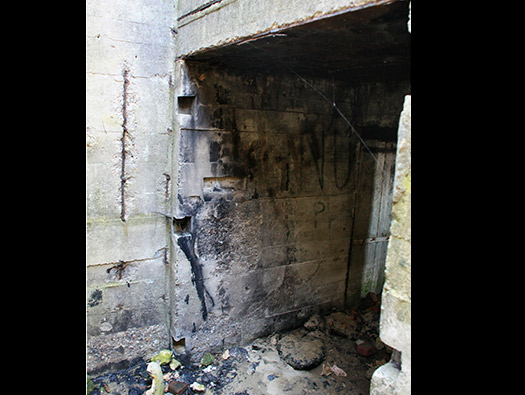

R141c Gruppe bunker entrance with its close combat window and the niche on the right may have held a speaking tube?

22 July 2008

Speaking tube.
Speaking tube.
Plan.
Plan.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker turning right

22 July 2008

Plan.
Plan.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

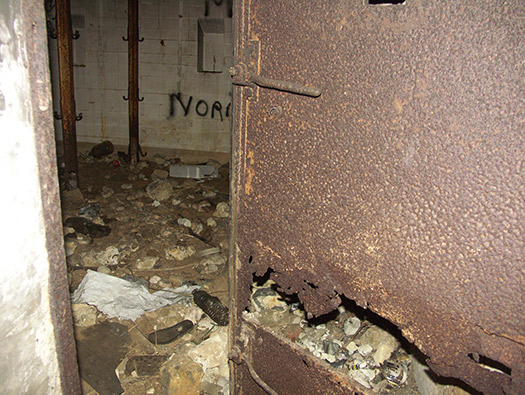

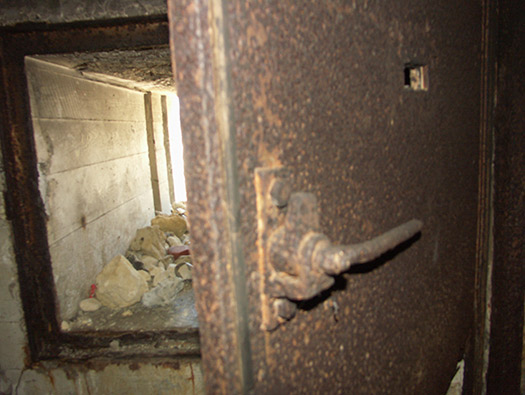

R141c Gruppe bunker 19P8 door.

22 July 2008

Plan.
Plan.
19P8 steel door with a small glass window and a rubber gas seal.
19P8 steel door with a small glass window and a rubber gas seal.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

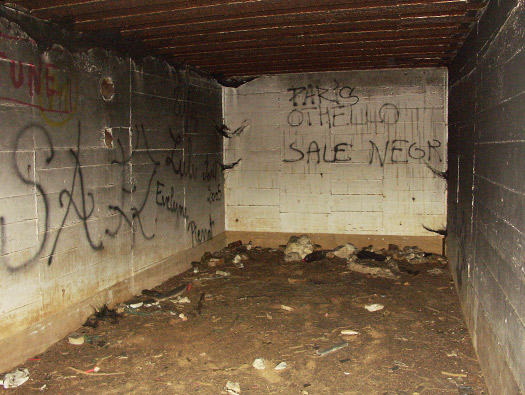

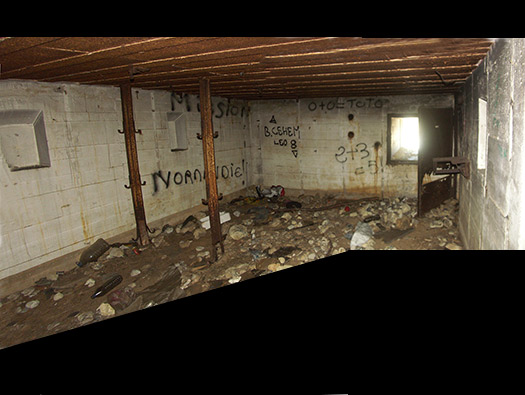

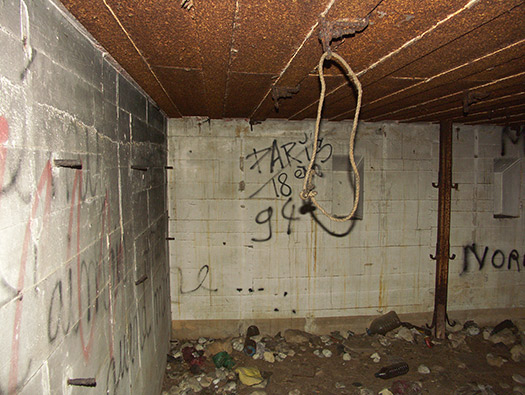

R141c Gruppe bunker crew room. The uprights have hooks on to hold bed bunks. There would be steel strips bolted to the wall with corresponding hooks.

22 July 2008

Bed in storage.
Bed in storage.
How the bunk beds looked.
How the bunk beds looked.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker the bolts in the wall to hold the steel uprights.

22 July 2008

Wn Trou08 Criqueboeuf plage
Bunk fittings.
Bunk fittings.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

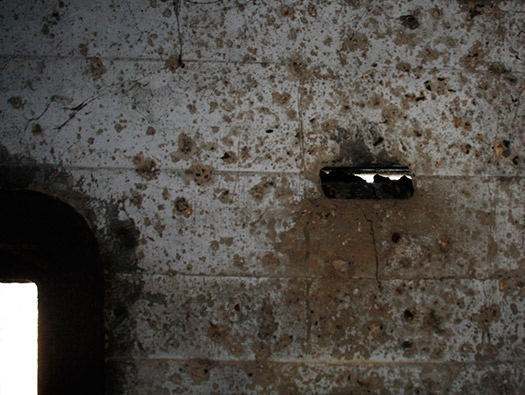

R141c Gruppe bunker close combat window.

22 July 2008

48P8 close combat window.
48P8 close combat window.
Wn Trou08 Criqueboeuf plage
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker frame of the gas pressure pump to overpressure the air inside the bunker to stop gas entering the bunker. The pump would be hand driven.

22 July 2008

An almost complete system.
An almost complete system.
German gas mask.
German gas mask.
Gas filter.
Gas filter.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker behind the 410P9 door is the escape hatch.

22 July 2008

410P9 escape door.
410P9 escape door.
Escape.
Escape.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker store room.

22 July 2008

141c plan.
141c plan.
Rations.
Rations.
Stores.
Stores.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

R141c Gruppe bunker showing the steps down into the bunker.

22 July 2008

141c elevation.
141c elevation.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

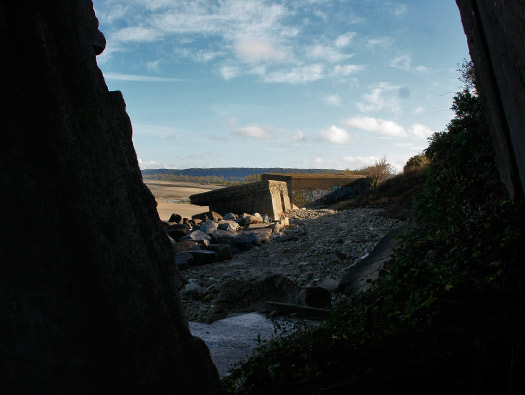

R141c Gruppe bunker in the distance.

31 October 2010

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Ringstand for a 5cm KwK..

22 July 2008

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

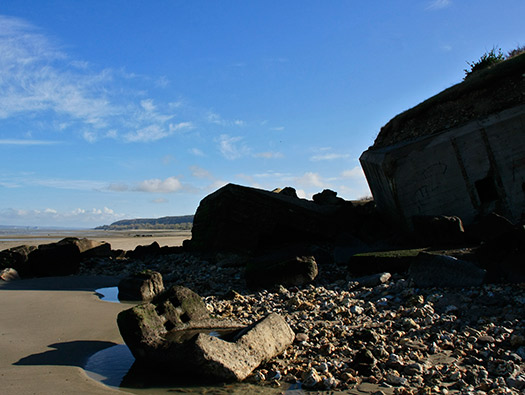

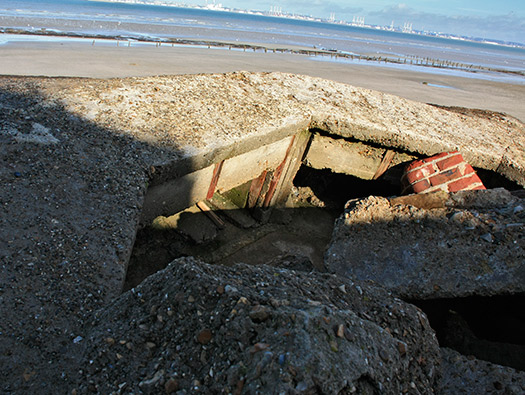

Escape with its steel steps broken away from a bunker.

22 July 2008

The different ways of making the escapes.
The different ways of making the escapes.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

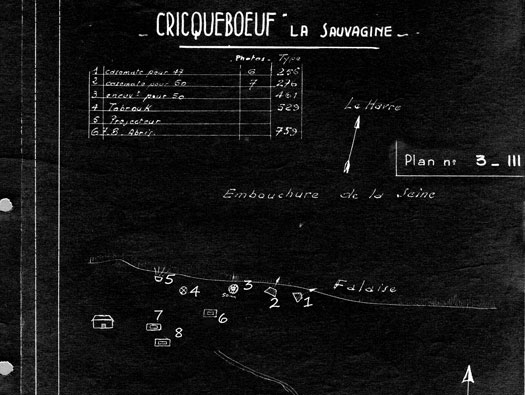

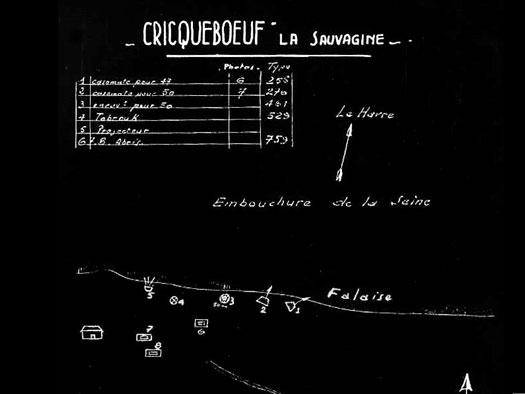

SHM plan.

SHM

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Ringstand for a 5cm KwK.

22 July 2008

How it may have looked.
How it may have looked.
5cm KwK emplacement.
5cm KwK emplacement.
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Ringstand for a 5cm KwK.

22 July 2008

Ringstand for a 5cm KwK and a Vf66 bunker.
Ringstand for a 5cm KwK and a Vf66 bunker.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Ringstand for a 5cm KwK.

22 July 2008

Bf66 and ringstand.
Bf66 and ringstand.
Ammunition niches all the way around.
Ammunition niches all the way around.
Ammunition niche broken away.
Ammunition niche broken away.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

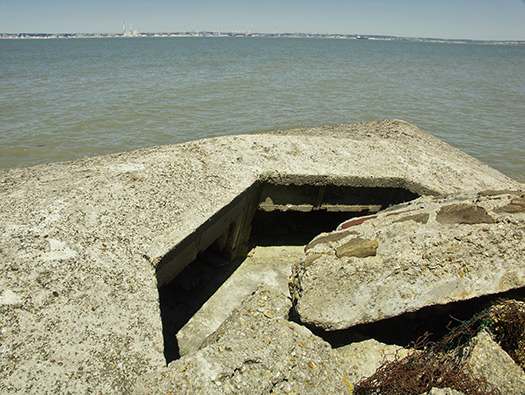

Ringstand for a 5cm KwK.

30 October 2010

Wn Trou08 Criqueboeuf plage
It may have looked very much like this one at Trou04.
It may have looked very much like this one at Trou04.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Ringstand for a 5cm KwK.

30 October 2010

5cm KwK Pak L/60.
5cm KwK Pak L/60.
5cm KwK Pak L/60.
5cm KwK Pak L/60.
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage


22 July 2008

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Bf66 entrance.

22 July 2008

Bf66 plan.
Bf66 plan.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Bf66 possibly the ammunition room.

22 July 2008

Stacked ammunition.
Stacked ammunition.
Bf66 ammunition room.
Bf66 ammunition room.
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

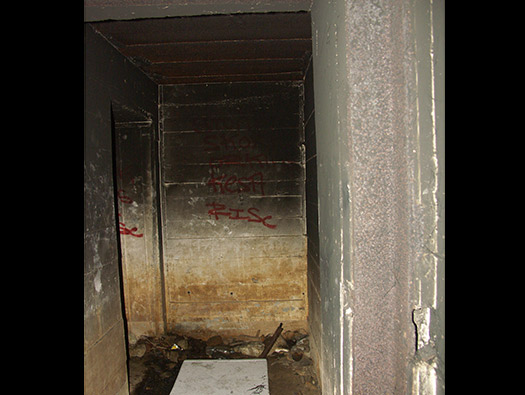

Bf66 crew room with the escape hatch in the rear wall.

22 July 2008

Crew room.
Crew room.
Bf66 plan.
Bf66 plan.
410P9 escape door.
410P9 escape door.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

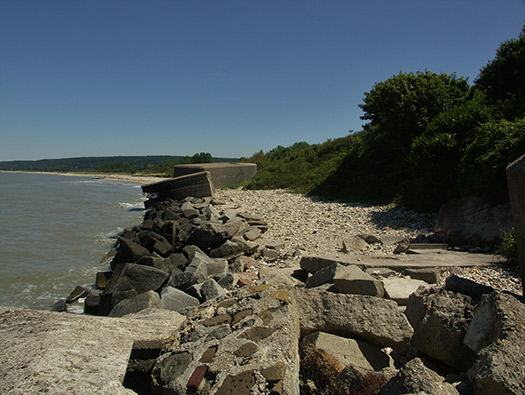

Schnabelständ, (Vf observation) and SK Pak..

22 July 2008

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

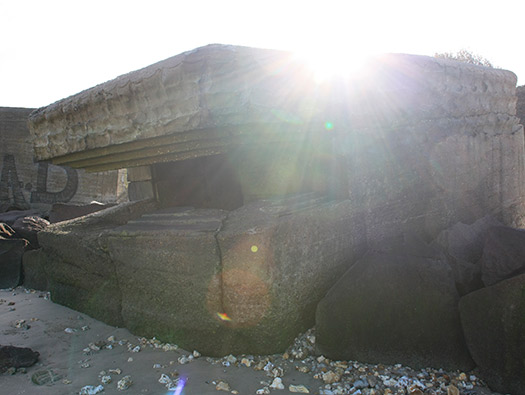

Schnabelständ, (Vf observation).

30 October 2010

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

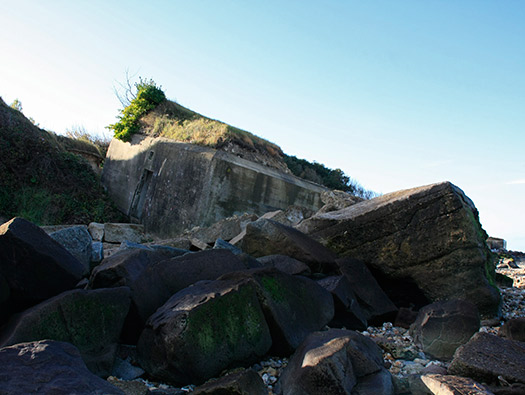

Schnabelständ, (Vf observation). Note the camouflage effect above the main structure.

22 July 2008

Schnabelstand, (Vf observation). Vf Skoda bunker (SK Pak).
Schnabelstand, (Vf observation). Vf Skoda bunker (SK Pak).
Schnabelstand, (Vf observation).
Schnabelstand, (Vf observation).

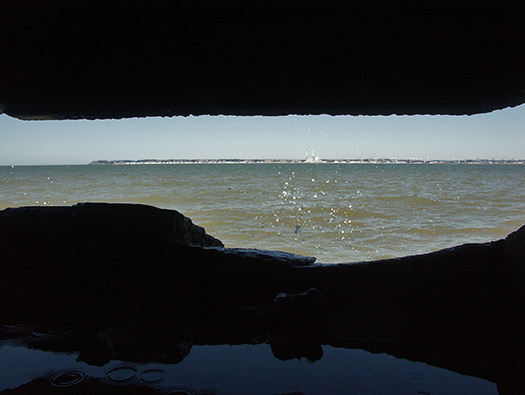

Observation room.
Observation room.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Schnabelstand, (Vf observation).

22 July 2008

Crew room.
Crew room.
Schnabelstand, (Vf observation).
Schnabelstand, (Vf observation).

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

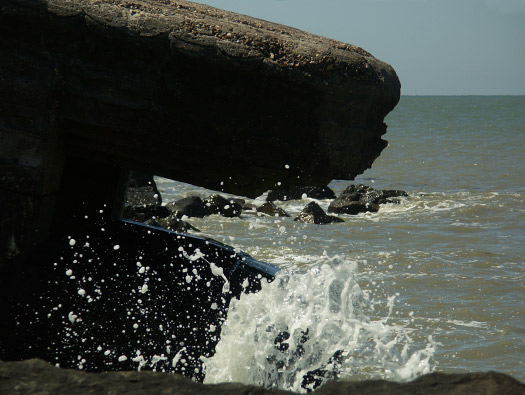

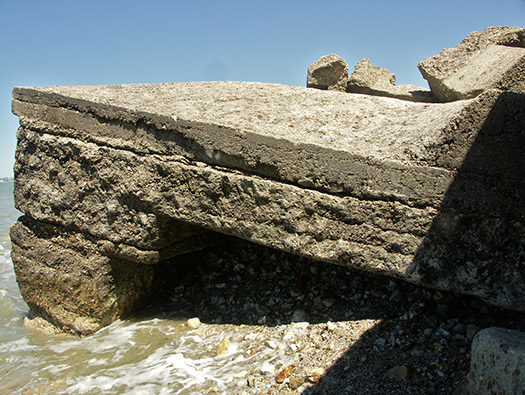

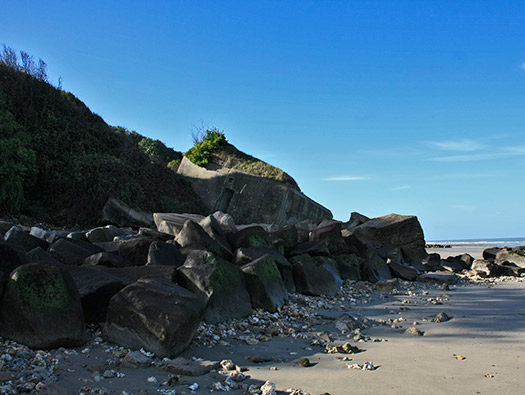

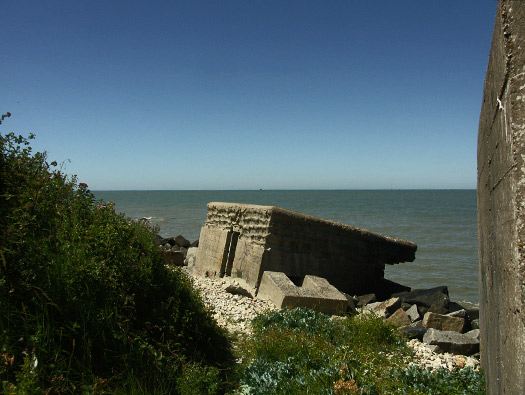

Schnabelständ, (Vf observation) with the tide coming in.

22 July 2008

Observation room.
Observation room.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Schnabelständ, (Vf observation).

30 October 2010

Observation room.
Observation room.
Observation room.
Observation room.
Close up of the camouflaged concrete.
Close up of the camouflaged concrete.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Schnabelständ, (Vf observation).

22 July 2008

During construction.
During construction.
During construction.
During construction.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

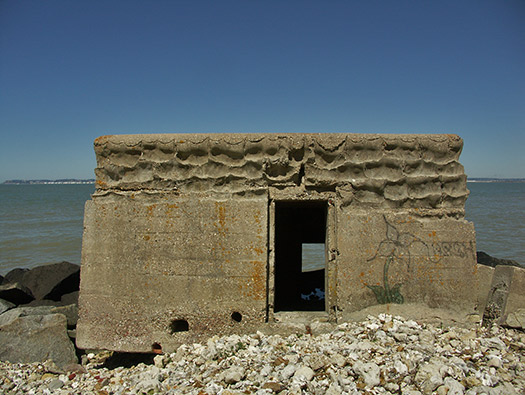

Schnabelständ, (Vf observation).

22 July 2008

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage


30 October 2010

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Schnabelständ, (Vf observation) from SHM. Behind is the 5cm KwK Ringstand and gun.

SHM

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Vf Skoda bunker (SK Pak).

30 October 2010

Wn Trou08 Criqueboeuf plage
Wn Trou08 Criqueboeuf plage
Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

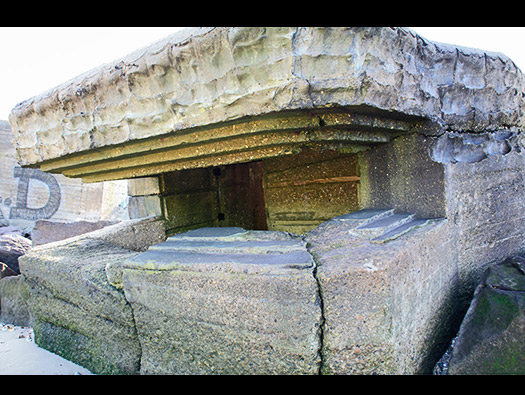

Vf Skoda bunker (SK Pak). The embrasure with the spent ammunition vat in front to catch the shells from the 4.8cm cannon.

30 October 2010

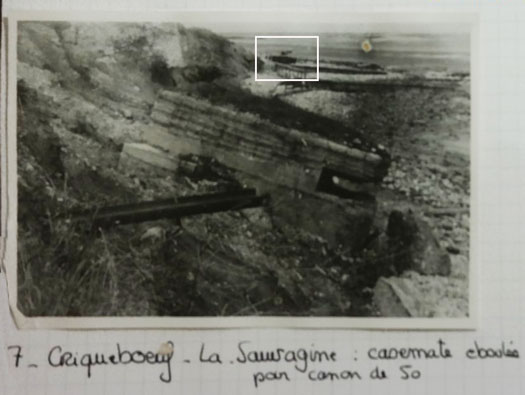

An original picture of the bunker and I have outlined the camouflage effects painted on it.
An original picture of the bunker and I have outlined the camouflage effects painted on it.
4.7cm cannon shell.
4.7cm cannon shell.
4.7cm shell case.
4.7cm shell case.
4.7cm ammunition.
4.7cm ammunition.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Vf Skoda bunker (SK Pak) rear entrance.

30 October 2010

Vf Skoda bunker (SK Pak) showing the chicane entrance.
Vf Skoda bunker (SK Pak) showing the chicane entrance.
Vf Skoda bunker (SK Pak) showing the chicane entrance.
Vf Skoda bunker (SK Pak) showing the chicane entrance.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Vf Skoda bunker (SK Pak). The main door either its all been removed or it was never fitted??

30 October 2010

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Vf Skoda bunker (SK Pak).

30 October 2010

Vf Skoda bunker (SK Pak).
Vf Skoda bunker (SK Pak).

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

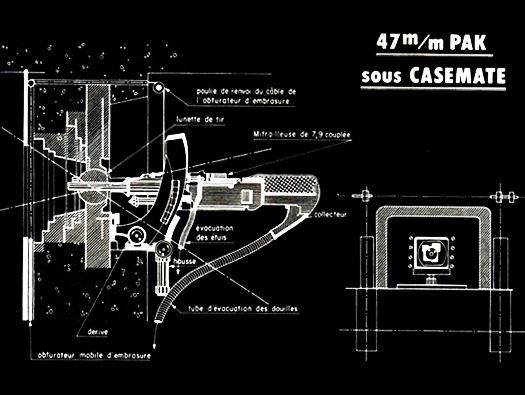

4.7cm Skoda Pak. It was designed to fit inside a bunker and a special steel embrasure set into the concrete of the bunker.

30 October 2010

The gun in situ.
The gun in situ.
Vf Skoda bunker (SK Pak).
Vf Skoda bunker (SK Pak).

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

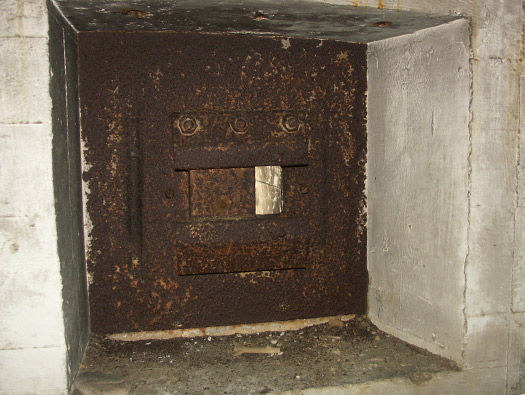

The special steel embrasure set into the concrete of the bunker. .

30 October 2010

770P4 steel embrasure.
770P4 steel embrasure.
4.7cm shell case.
4.7cm shell case.
Wn Trou08 Criqueboeuf plage
Vf Skoda bunker (SK Pak).
Vf Skoda bunker (SK Pak).

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Vf Skoda bunker (SK Pak). The observation slit where the gun commander would shout fire orders to the gunners.

30 October 2010

Gun commander viewing through the slit.
Gun commander viewing through the slit.

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage
Vf Skoda bunker (SK Pak).

30 October 2010

Wn Trou08 Criqueboeuf plage

Wn Trou08 Criqueboeuf plage

Casemate pour canon de 47mm.

SHM
