Vill13 Mont Canisy

HKB · StP.Gruppe Villers sur Mer · AOK 15 Haute-Normandie · France

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255, here I have added over 70 photos, I could have added many more, what I have shown is a very nice walk around, if you wish to spend more time, there are many more bunkers to find, many French from 1939. There is a German tunnel system which is open to the public and although I have never visited when its open, it is very worth a trip. I have also added a plan of the French batterie, from the Martian report (British Government document) of the German plan of their first batterie which increased the batterie from four to six guns and then the three of four casemates that still exist. Pete I have to thank you for all your help with plans & details and all the time you spent at the archives. I will continue updating the page, so keep checking it out.

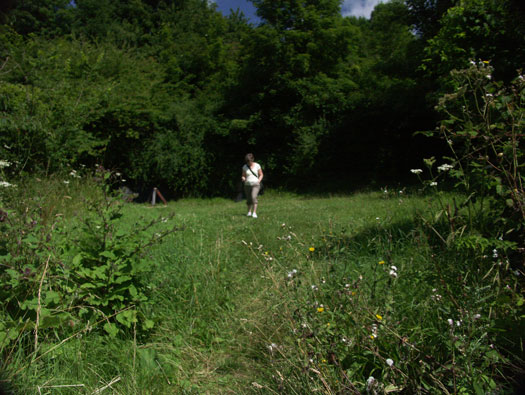

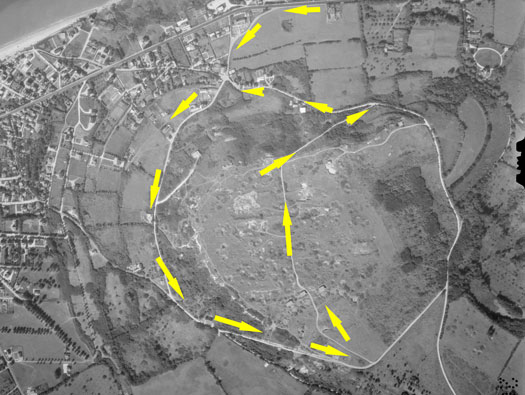

The start of our walk, in 2008 my wife and I stayed in Trouville for a few days and walked the sea front of Deauville to Mont Canisy and then walked around the hill to the western side and entered the batterie position from there.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

Heers Kusten Batterie Canisy.
Batterie 2./Heers Kusten Artillerie Ableitung 1255.
3 x R679 casemates (+1 under construction).
6 x open emplacements (French) installed in 1938 part of the Maginot extended plan, which included coastal defences.
6 x 134/SK ammunition bunkers.
1 x R501 grouppenunterstand small group bunker.
1 x V2a grouppenunterstand small group bunker.
2 x Vf67 Tobruk for a tank turret. 10 x Vf58c Tobruks.
1 x Vf3a machine gun/observation.
1 x R612 Casemate for an assault gun.
3 x R675 Wasser bunker.
2 x 5cm KwK Ringstands.
2 x Leitstand/SK (Fire control posts).
13 x Vf Field bunkers.
1 x Stollen (Tunnel). Weapons.

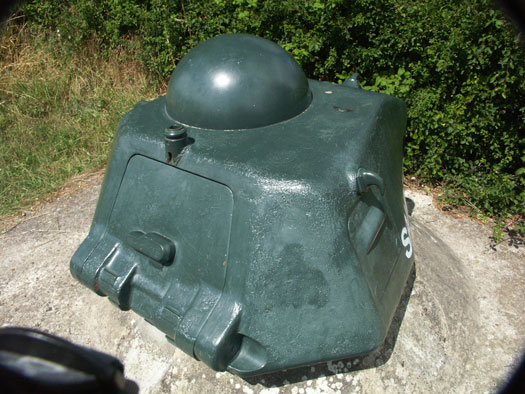

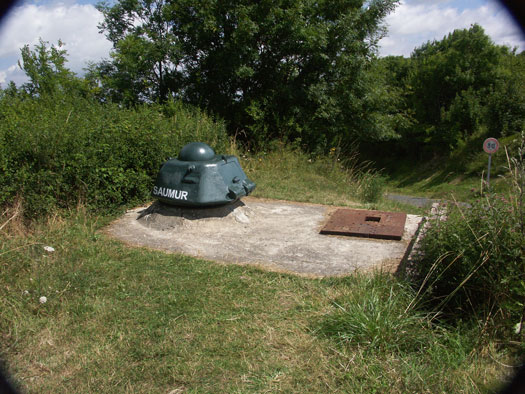

1 x Pz.T. R35 3.7cm KwK 144 (Tank turret).
1 x 2cm Flak 38.
1 x 2cm Flak 38 Vierling (four barrels).
2 x 5cm KwK guns.
6 x 15.5cm K.420 (f) guns.
1 x 10.5cm le.F.H.325 (f) gun.
1 x 7.62cm F.K.39 gun.

ignf

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

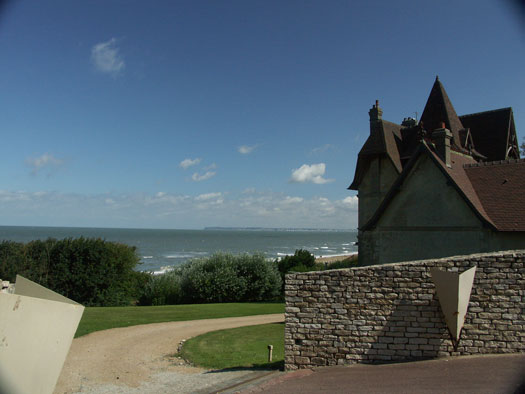

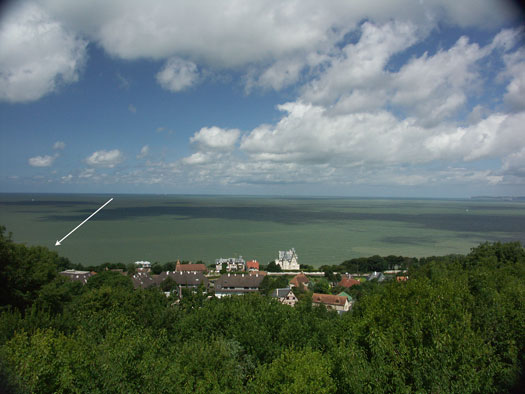

The view from Av. du Littoral.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

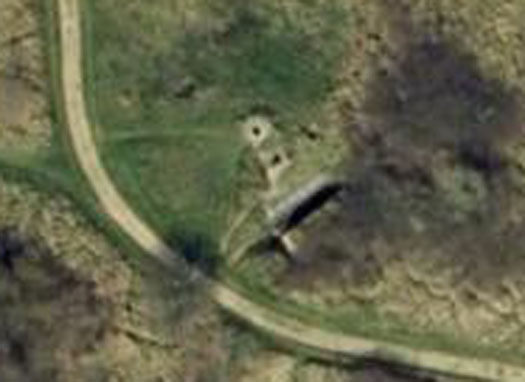

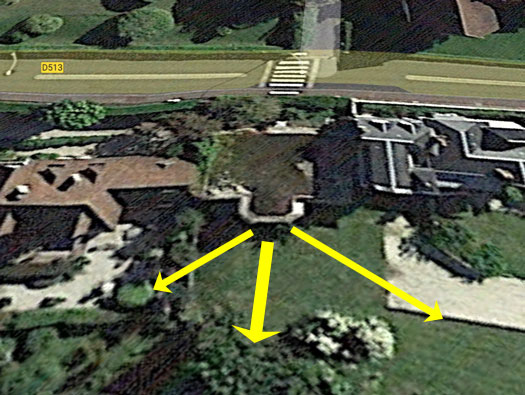

SK Leitstand (Fire Control Post). SK - Sonderkonstruktionen, special construction, either a one off or modified from the original drawings. The French used the top of the hill, the Germans preferred to place theirs lower down, presumably to enable them to see under low cloud or as fog is lifting ?

Google

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

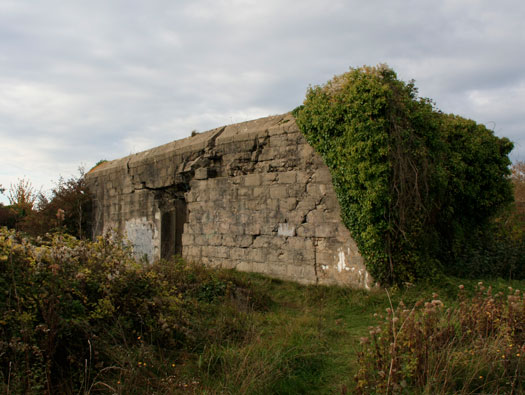

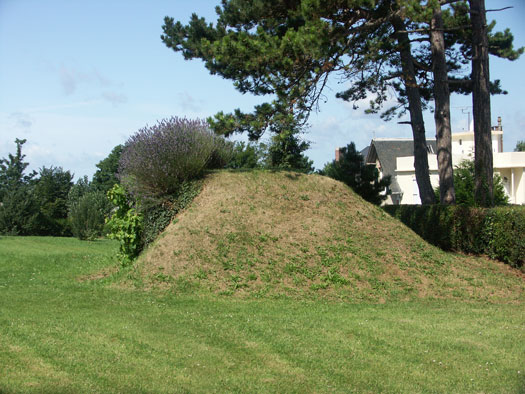

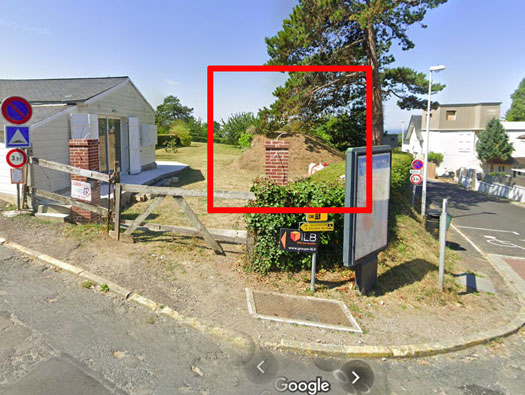

Unknown bunker by the rond point on the Chem. des Enclose. There are a few odd bits, a small garage as well.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

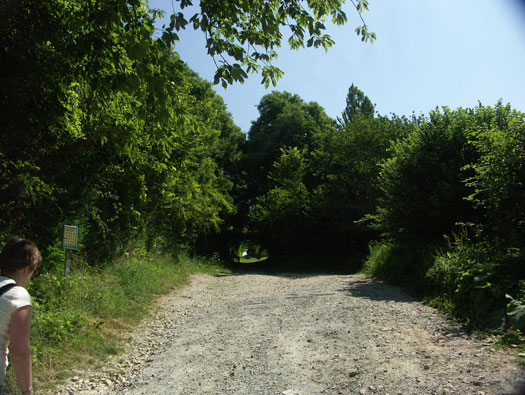

The entrance all the supplies and ammunition would have come up from the railway down in the valley.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

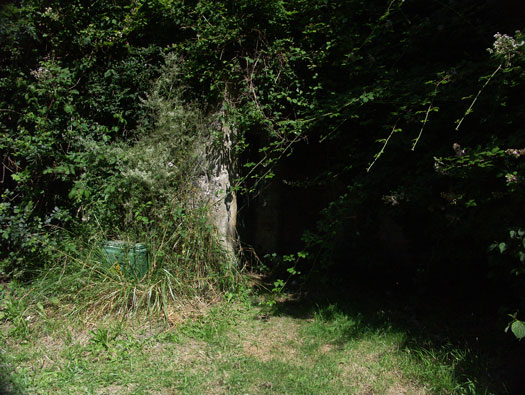

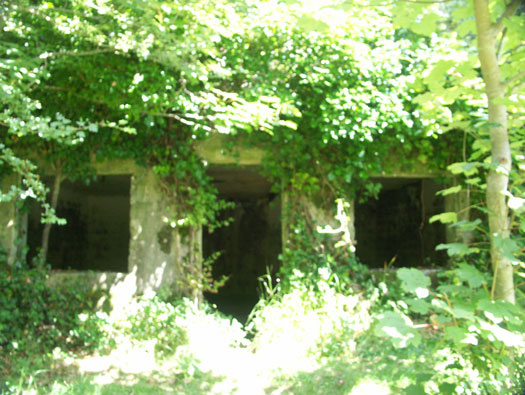

On the left of the track there are several bunker/huts set into the soft rock.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

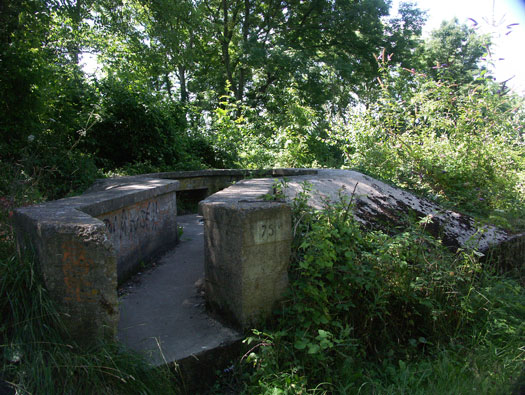

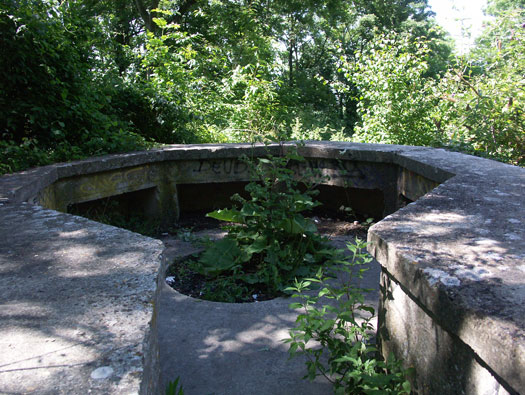

Bf66 Ringstand 5cm KwK Ringstand.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

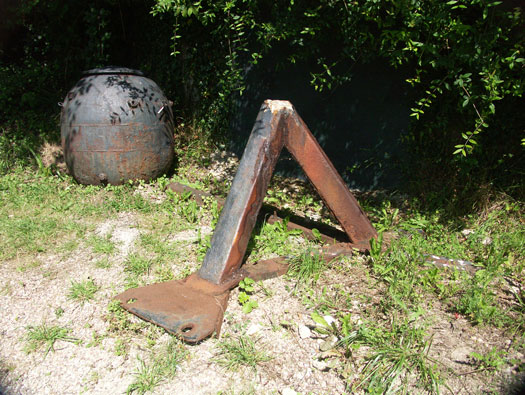

A sea mine and a beach obstacle on display.

21 July 2008

Mine crusher, a boat would hit the wooden post which was hinged and the engaged the mines fuze and then blow up.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

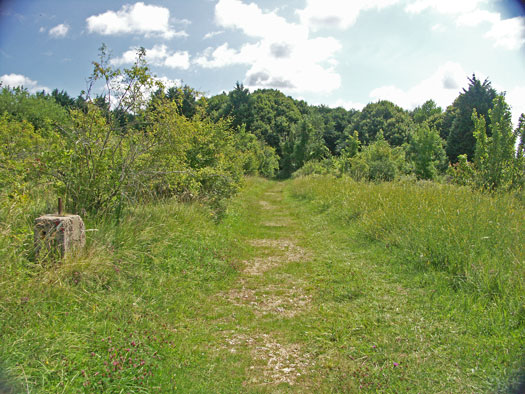

Continuing on into the complex.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

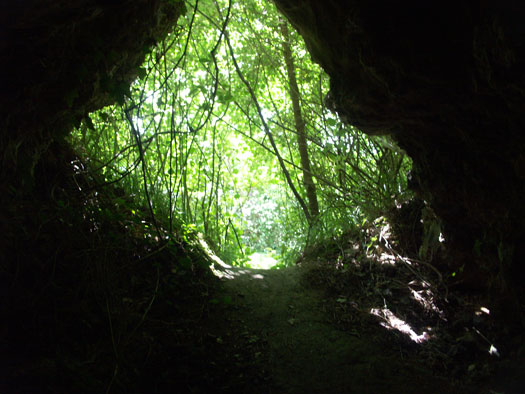

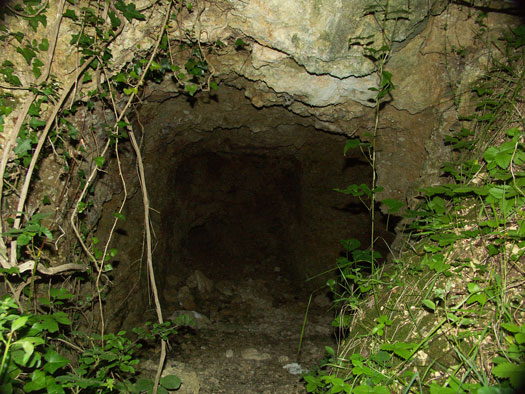

Stollen (tunnel) small. One of the small tunnels along this cliff edge.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

Set into the cliff side, this could be the guard room for the main gate.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

The main gate pillar.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

R501 grouppenunterstand small group bunker.

21 July 2008

Google

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

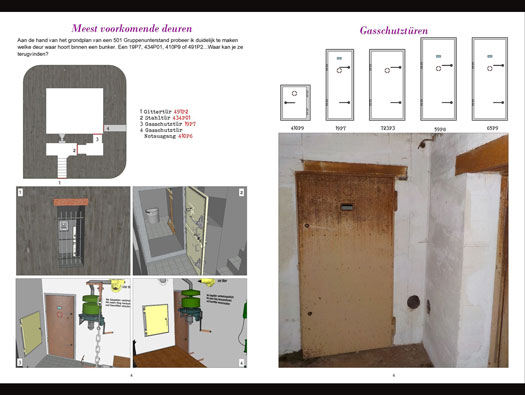

Plan of an R501 grouppenunterstand, small group bunker.

Plan Kurt

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

R501 grouppenunterstand small group bunker. This could be an anti-aircraft defence for a machine gun? set on the R501 bunker.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

R501 grouppenunterstand small group bunker. Tobruk defence.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

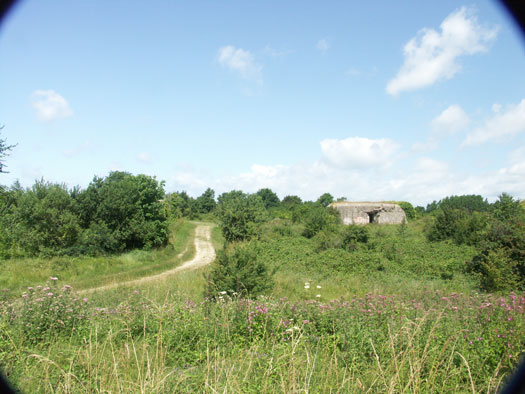

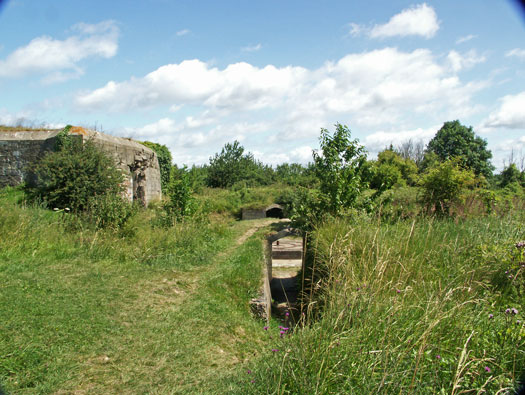

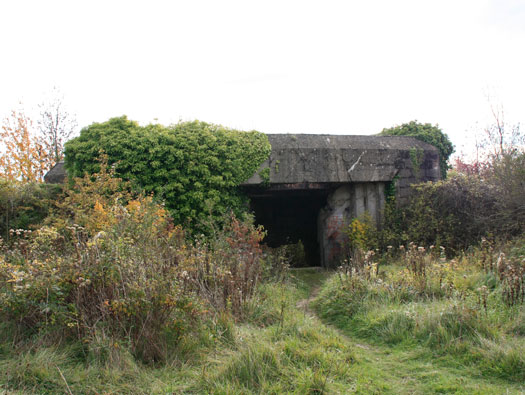

Moving on. The R679 rear of the casemate out in front.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

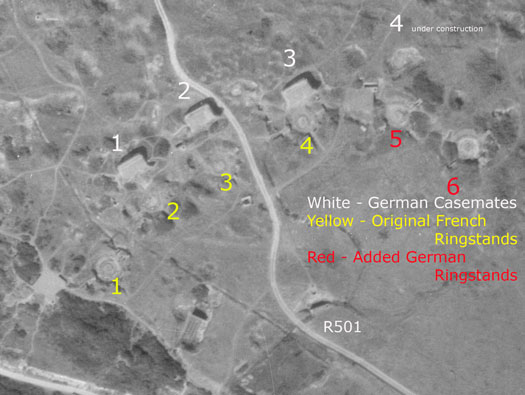

Yellow the original French 1939 batterie position. Red, the added two German positions. White the three + 1under construction casemates of R679 type.

IGNF

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

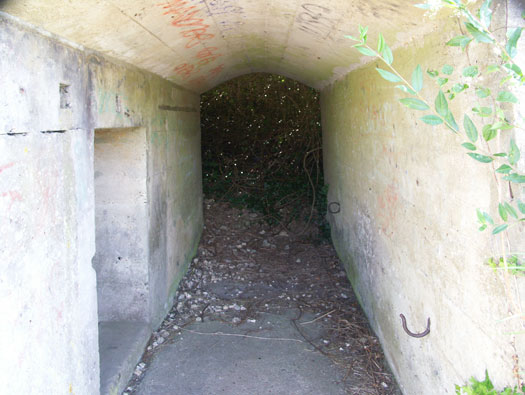

Ammunition passageway into one of the French gun emplacements.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

Initially designed as a gunnery school in 1937, a new battery consisting of four 138 mm guns would protect the Bay of the Seine and the anti-submarine net, which would be reinstalled in 1939. A 1.5 m diameter searchlight would complete the system. Captain Lemonnier, in charge of the coastal sector south of the Seine, received orders to evacuate the site on June 14, 1940, after disabling the guns and searchlight and sinking the metal net across the entrance to Trouville/Deauville harbour to allow ships to leave the port more quickly.
France in the 1930's started to re arm after WW1 and under the Maginot plan, the main line of resistance ran along the Franco/German border, but also French ports in metropolitan France, but also North Africa and many parts of the French colonies. Planned on a grand scale, very little was accomplished as the war came too quickly for fruition of plans.

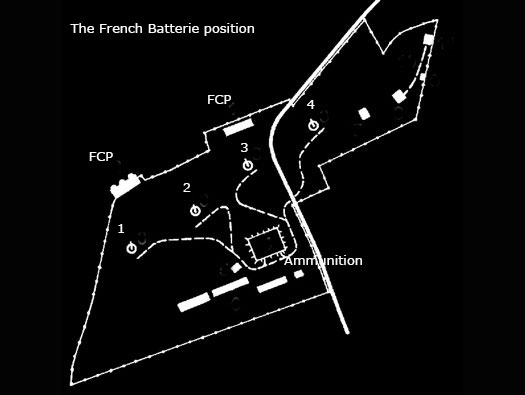

French plan - RAF

A British anti submarine net from Scapa Flow, Scotland.

A net being laid across a port in Scotland.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

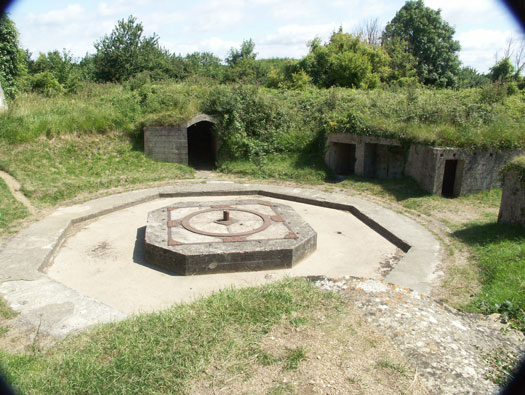

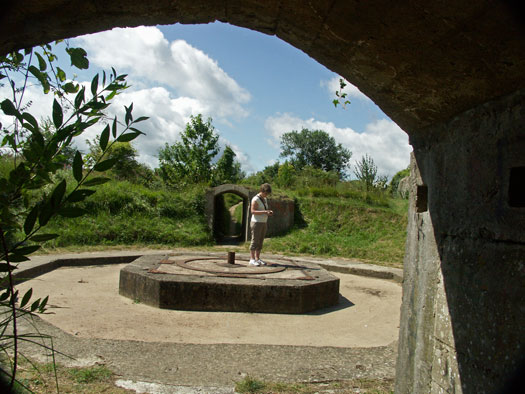

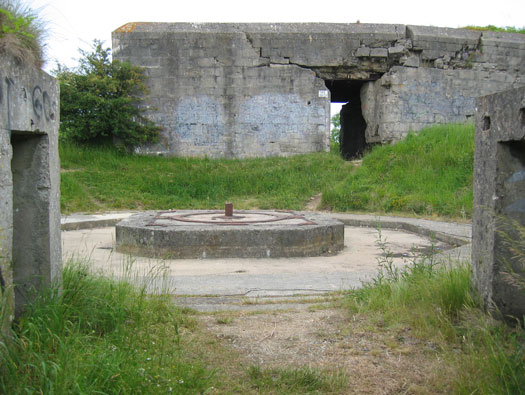

French open emplacement for 4 x 138 mm guns.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

Ready ammunition rooms and passage. Hooks on the wall to hold the cleaning/ramming rods.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

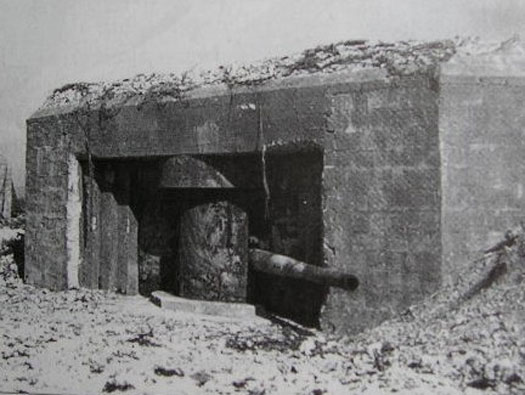

The French ringstands were re purposed by the Germans after the French soldiers had damaged their guns. The Germans arrived in Trouville-sur-Mer on 19 June , 1940, the occupying forces gradually became aware of the importance of this exceptional strategic location for defending the entrance to the Seine and the port of Le Havre. Thus, the German army did not begin work on installing a battery on the site until mid-1941, a year after their arrival. Thus, the German army did not begin work on installing a battery on the site until mid-1941, a year after their arrival. Six 155mm guns of French origin (Schneider-St. Chamond) with a maximum range of 18 to 20 km were installed in the centre of the site on circular concrete bunkers. By December 1941, four guns were operational, with the last two in February 1942. The first batterie that arrived here were the 2./H.K.A.A510.

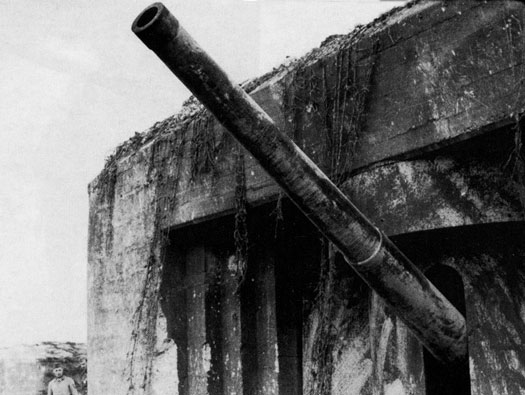

21 July 2008 - German crew

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

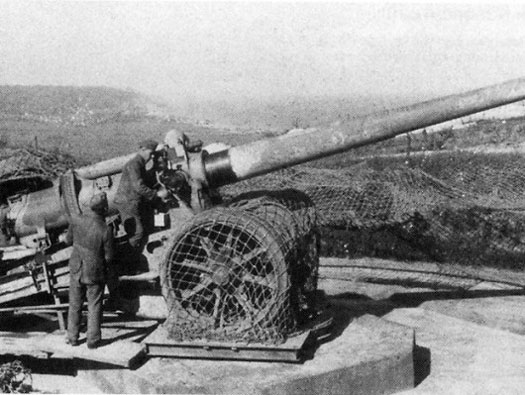

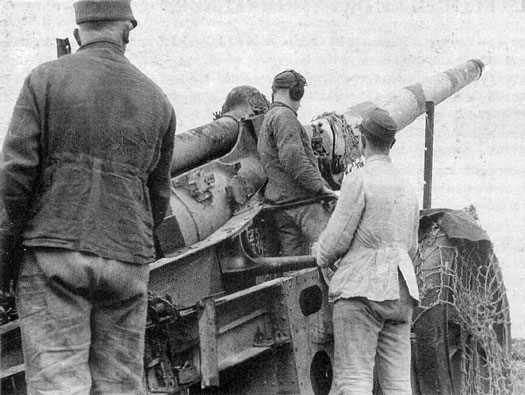

6 x 15.5cm K.420 (f) guns of the 2./H.K.A.A510.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

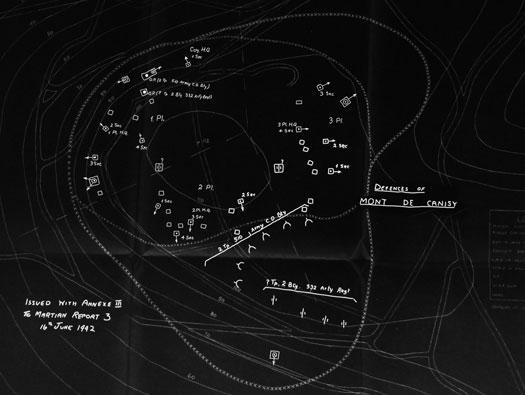

I have to thank Pete for this, he spent hours in the National Archive recording details, this is one which records what was at Mont Canisy before the casemates were built.

Martian Report 1942

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

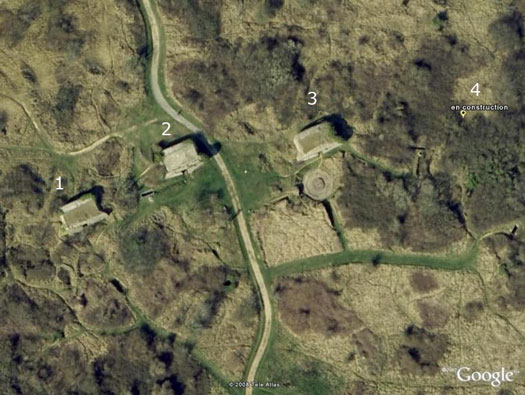

The three R679 casemates and the site of the fourth under construction.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

The three R679 casemates.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

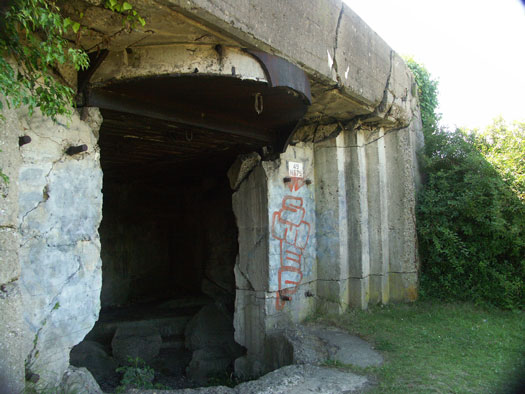

R679 casemates. The steel plate that was fitted around the top of the embrasure possibly a 731aP1 plate.

21 July 2008

An R679 casemate showing the two steel plates either side of the gun embrasure used as extra protection.

731aP3 is the steel semi circular plate around the top.

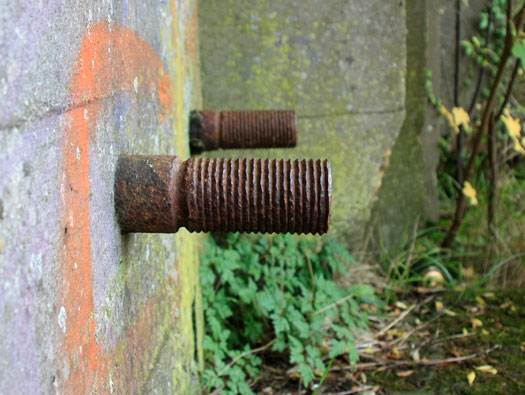

One the nut was still on the thread, these plates may never have been placed here as many steel plates had not arrived in France or was in the stores but not arrived at the emplacements.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

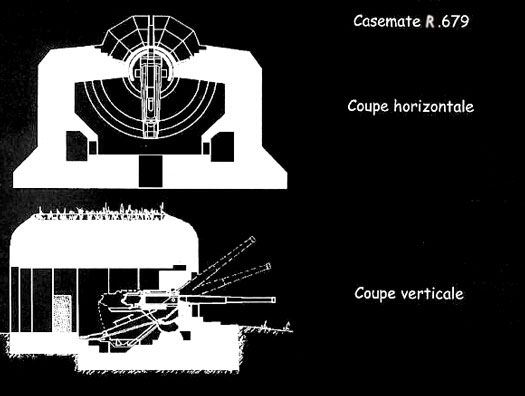

R679 casemates. Built with formstein blocks outside and inside and filled with steel reinforcement and poured concrete.

21 July 2008

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

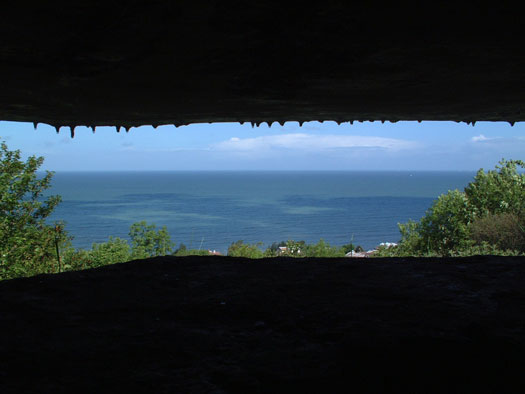

R679 casemates. The gun room.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

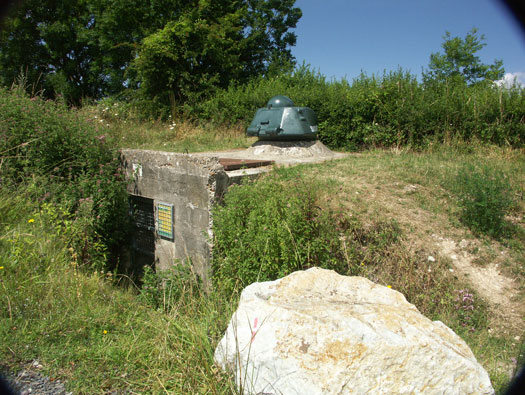

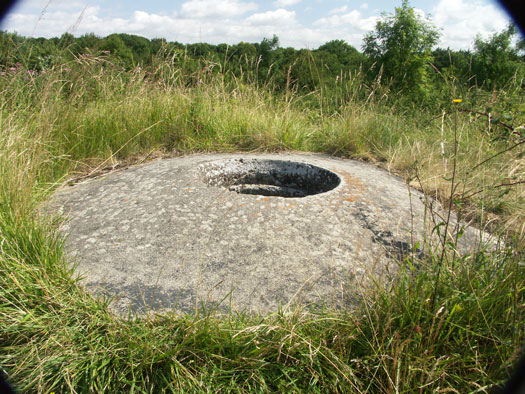

Tobruk attached to a bunker.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

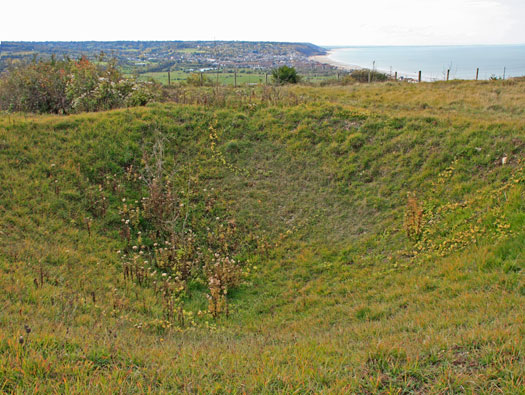

Bomb or shell crater, the site was bombed and shelled on D-Day by HMS Warspite, Ramillies and HMS Roberts. Due to Allied bombing, Hitler has now ordered all open emplacements to be Casemated. Three casemates had been built and guns installed. The Battleships fired from of Sword beach a good 35km away (about 22 miles), The Allies were concerned that Vill013 could fire on Sword Beach, but they got that very wrong, the guns 15.5cm K.420(f) gun, a German adaptation of the French 155mm GPF, had a maximum range of approximately 26,500 meters (29,000 yards).. So there were no threat after all.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

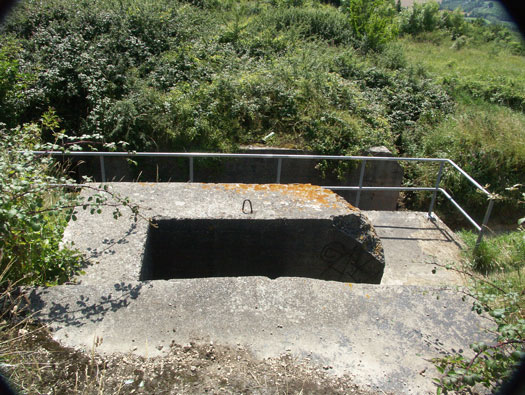

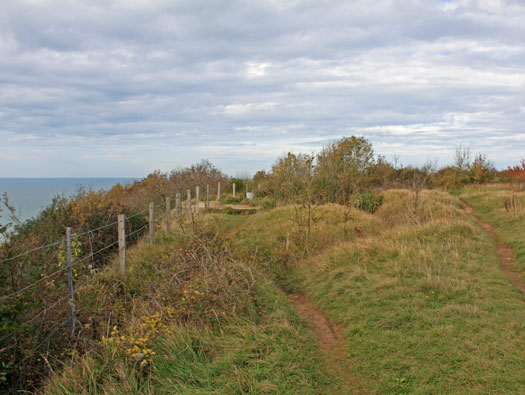

Tobruk & trench systems.

21 July 2008

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

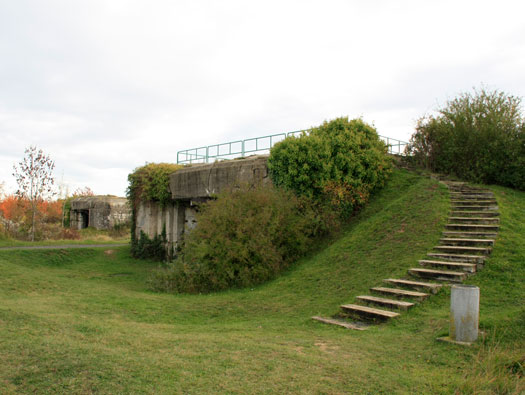

French FCP re used by the artillery units here.

21 July 2008

Range finder, director the type of equipment that may have been used when originally built.

Vill013 Benerville, H.K.B. Canisy Batterie 2./H.K.A.A. 1255

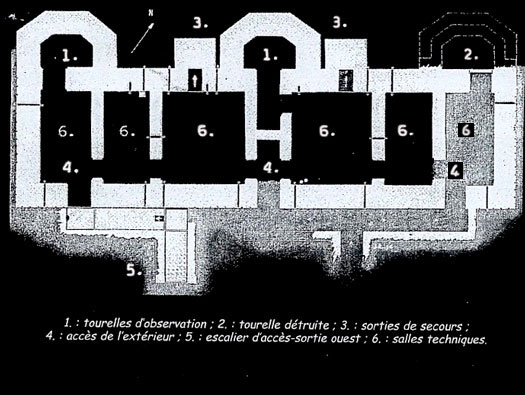

The second French FCP plan.
1 - Observation turret.
2 - Turret destroyed.
3 - Escape routes.
4 - Ways in and out.
5 - Steps to the west exit.
6 - Technical rooms or plotting rooms.

Plan - 21 July 2008
