RAF Weston Zoyland, Somerset Aviation Petrol Installation.

Somerset · England · United Kingdom

Opened in 1926 - Closed 1969. When up graded to 'A' class bomber station, the amounts of fuel that were needed to be stored was immense. About 72,000gal each. When the Jet age started, even more fuel was needed to feed these hungry brutes and extra bladder tank house was added. Here in this section I am covering just the Aviation Petrol Installation.

Scammell or Bedford articulated road tankers would deliver fuel to the API’s and stopping at the Picket Post first to sign in and then show their dips. When emptied, the dips would be taken again and checked that ALL the fuel was delivered and signed for.

Albion bowser’s in the early part of the war would have been used or a trailer tanker towed by a tractor.

AEC Matador was another bowser that gradually took over as quantities increased. Americans even used their large articulated bowser’s.

Google

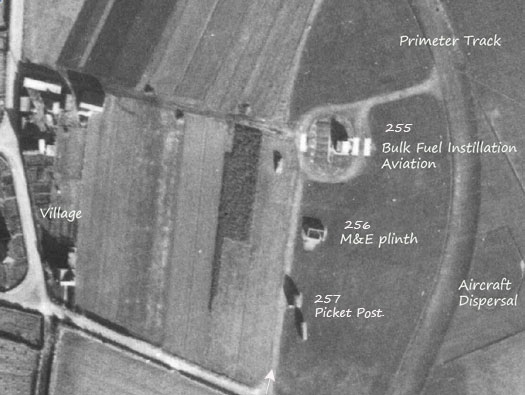

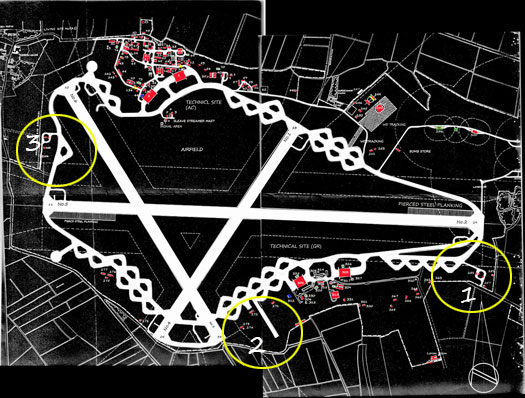

The three API's placed around the airfield. 1 & 2 can be seen but 3 has completely vanished.

AIR 4049/45

API 2. On the 1945 plan, there is no sign of the API or the pillboxes, but here today they can be seen easily.

There are many extant buildings around the airfield and it makes a very good drive & walk to search for them.

19 August 2012

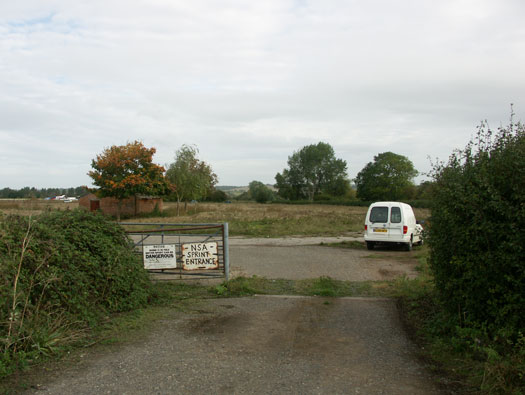

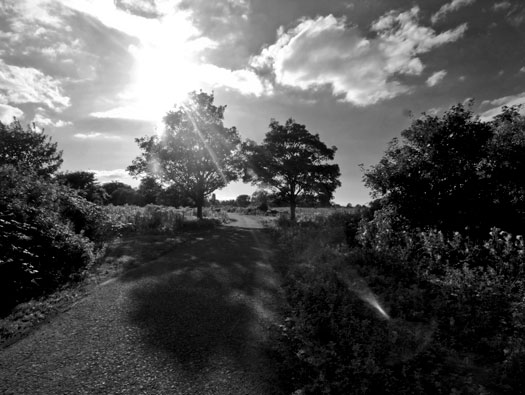

This is the entrance to the first of the API's. 255 - Aviation Petrol Installation (72,000gal) Type 'E' - 9846/41.

02 Aug 2005

With a link to the perimeter track and to the road outside, delivery tankers could arrive without having to use the airfield. In the south west of England the petrol came via the railways to fuel depots where they would be trans shipped by POOL tankers to the airfield.

19 August 2012

But sending fuel via the roads and rail made the precious fuel far too vulnerable to aerial attack. The solution was to bury a pipeline – safe from enemy bombers. A Government Pipelines and Storage System (GPSS), was carried out with the utmost secrecy; the pipeline channels were even dug at night so that enemy reconnaissance aircraft could not see any interesting activity. Stephen Dowling
13th May 2016 BBC.
But I think at RAF Weston Zoyland that the fuel came directly from Avonmouth docks by articulated tankers. — But sending fuel via the roads and rail made the precious fuel far too vulnerable to aerial attack. The solution was to bury a pipeline – safe from enemy bombers. A Government Pipelines and Storage System (GPSS), was carried out with the utmost secrecy; the pipeline channels were even dug at night so that enemy reconnaissance aircraft could not see any interesting activity. Stephen Dowling 13th May 2016 BBC. But I think at RAF Weston Zoyland that the fuel came directly from Avonmouth docks by articulated tankers.

Bedford POOL tanker. POOL was a generic name for all the petrol companies, amalgamated in wartime.

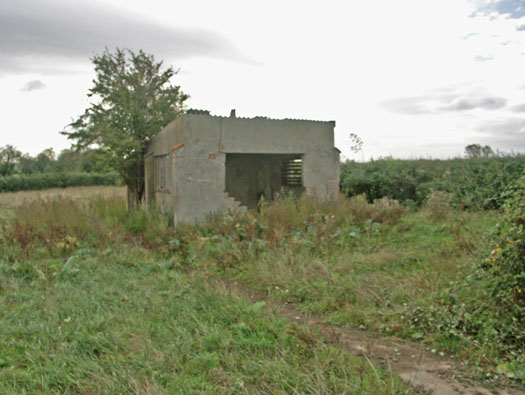

With a path running from the road is a picket post, where anybody arriving at the fuel installation would book in with the corporal in charge.

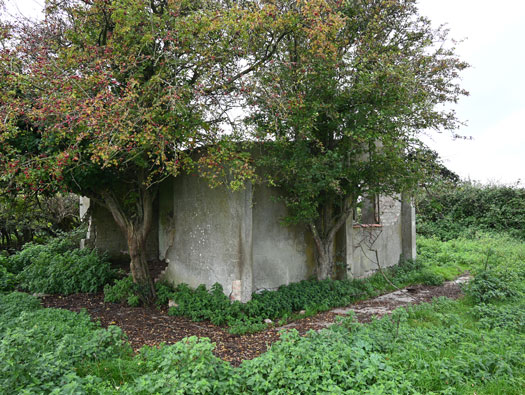

257 - Picket Post - (type 'B') - N - 12404/41 now this is quite interesting as there is no N - Nissen hut. So the Picket post must have been replaced in the late 1940's/50's with the one you see.

02 October 2005

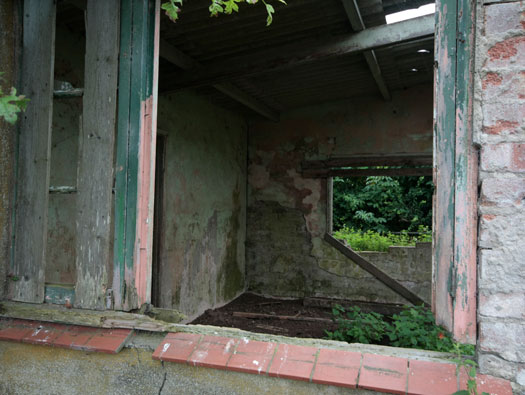

Picket Post inside.

19 August 2012

Picket Post rear.

27 September 2019

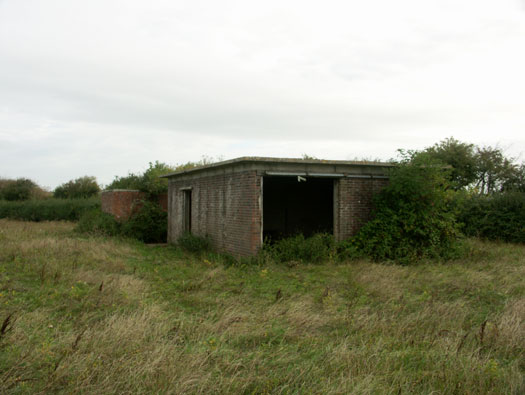

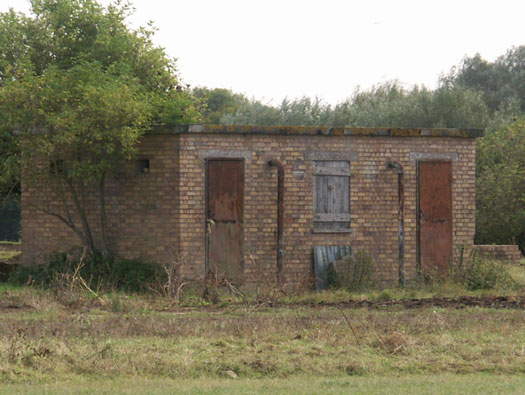

Bulk Fuel for Bladder Tanks, is a later building probably from the time of jets when they were stationed here and held pumps in one end and a large fuel bladder tank in the other.

02 October 2005

The only picture I could find of a bladder tank.

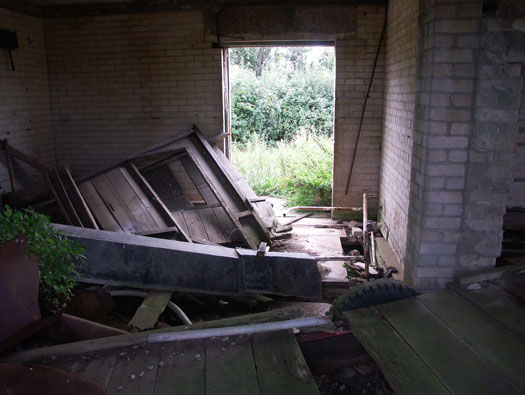

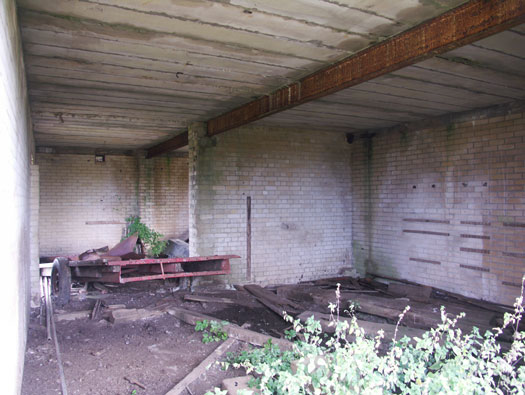

Looking inside the bladder tank room, it was protected by a thick concrete roof and had channels running through the floor for fuel pipes.

07 October 2005

This is the pump room and you can see the channel in the floor on the right and the rear door.

02 October 2005

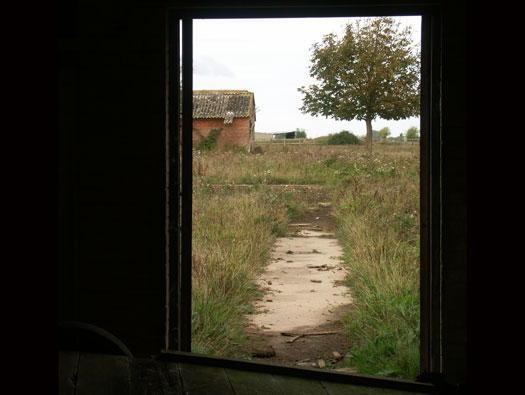

Looking through a door at the main pump house.

02 October 2005

Behind is an M&E plinth.

27 September 2019

M&E plinth.

02 October 2005

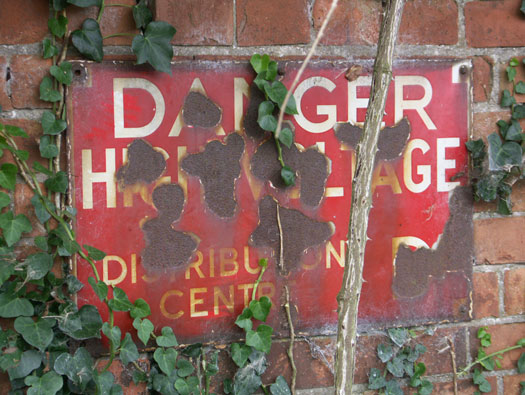

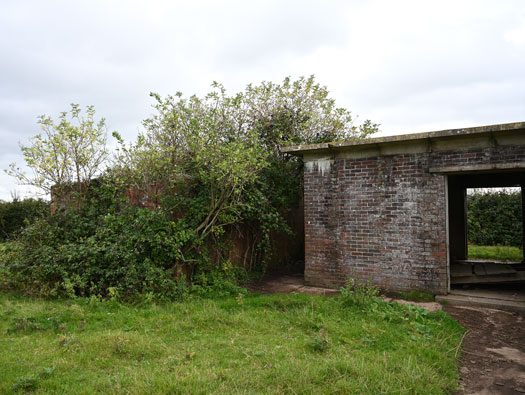

M&E Plinth (mechanical & electrical) this would have converted the electricity from its higher voltage down to the voltage used by the fuel pumps here. We could not get inside to see if any fittings were left here.

02 October 2005

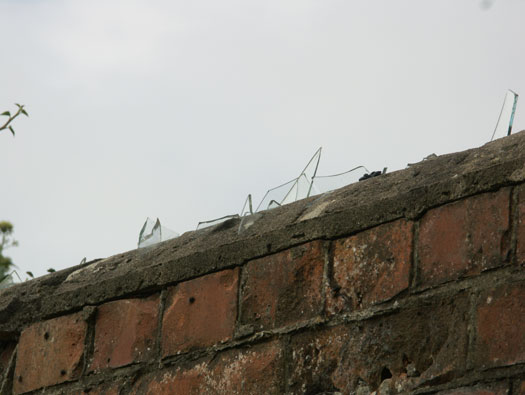

Broken glass set into the top of the wall. It is only on M&E plinths that I have seen this on old RAF station.

The glass that was used in the top of the walls I am sure sometimes was from bottles of beer the builders drank whilst building them.

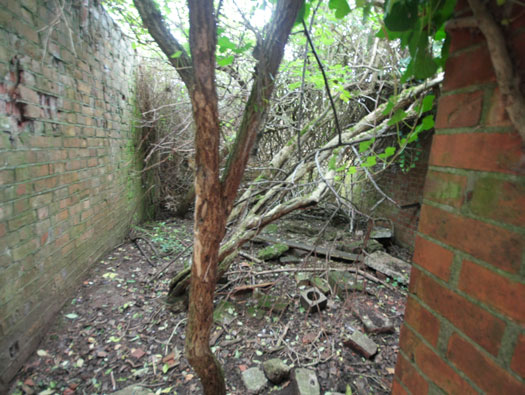

Inside

19 August 2012

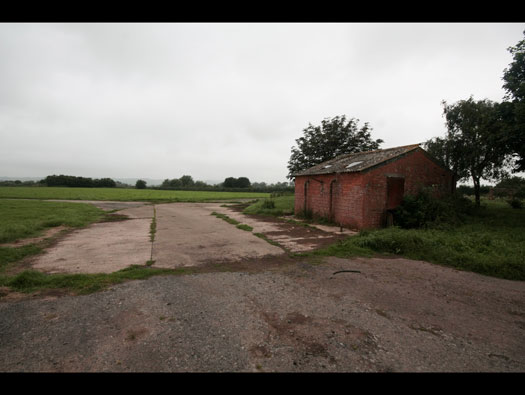

255 - Aviation Petrol Installation - 9846/41. The concrete is level to allow tankers to park and have their tanks dipped before and after delivery. This would be recorded by the man in charge of the fuel installation or the picket post corporal. Also concrete because if tarmac, the fuel would react to it and damage the surface.

19 August 2012

Checking the dips. I have done this hundreds of times in our garage in Wiltshire.

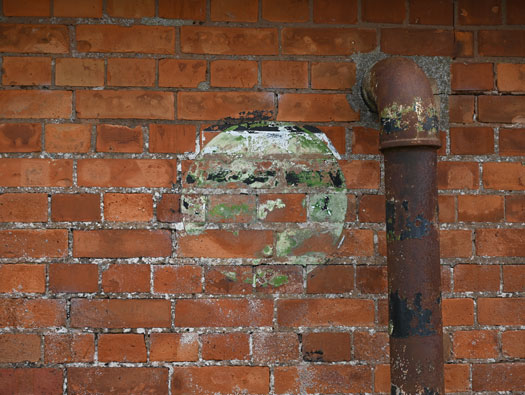

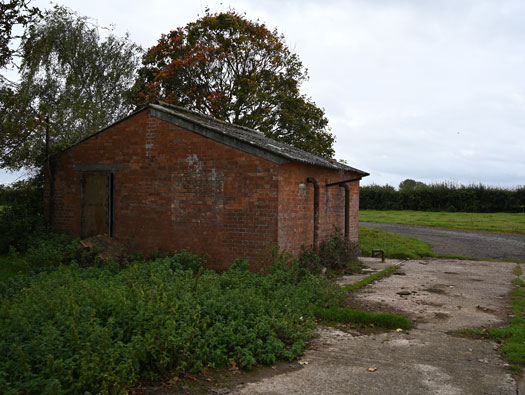

255 - Aviation Petrol Installation - 9846/41. Pump house with pipes still in place.

27 September 2019

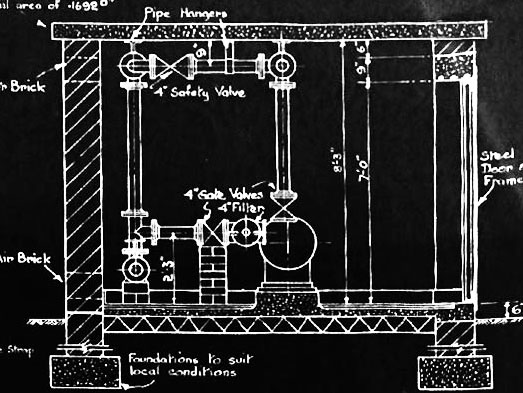

The plan of a 15425/40 Pump house showing the inside workings.

15425/40 Pump house ARG

255 - Aviation Petrol Installation - 984641.

27 September 2019

An American tanker. They also could tow a tanker trailer.

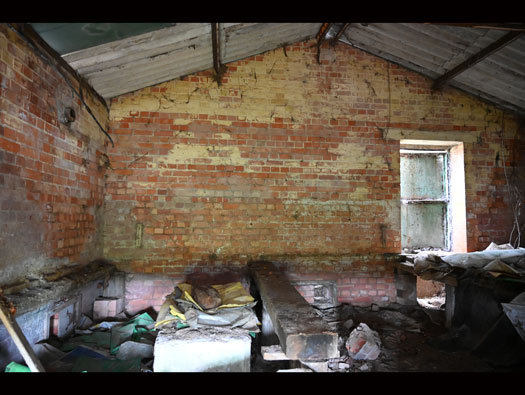

255 - Aviation Petrol Installation - 984641. Inside the pump room.

27 September 2019

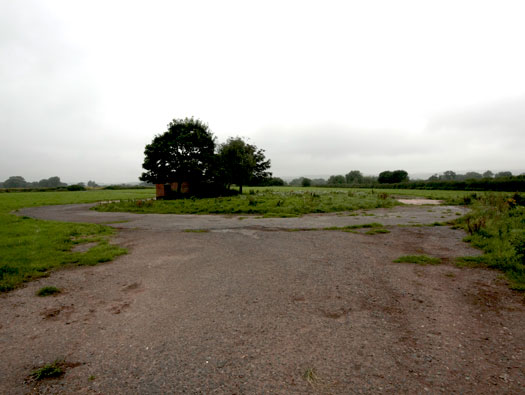

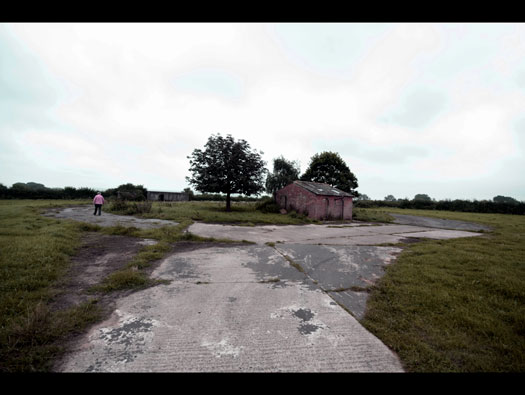

255 - Aviation Petrol Installation - 9846/41. Why is it round. This allows tanker delivery lorries to drive in, off load, and drive around and out. It also allows fuel bowsers to come off the perimeter track, fill up and drive around back onto the airfield.

19 September 2012

B17 being filled up by an RAF tanker, an AEC.

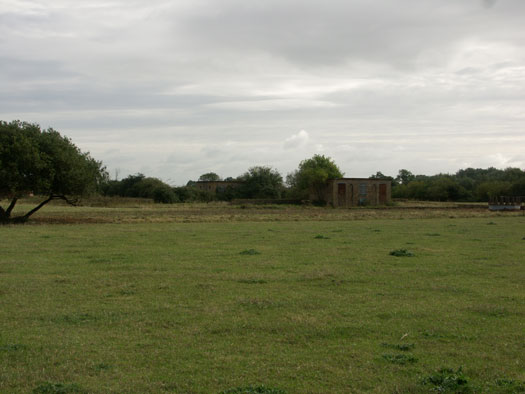

We are now over the other side of the airfield.

02 October 2005

This is the view from the runway/perimeter track.

19 August 2012

No details on the 1945 plan of this API. It may have been added later post war, when jets started to use the airfield.

Google

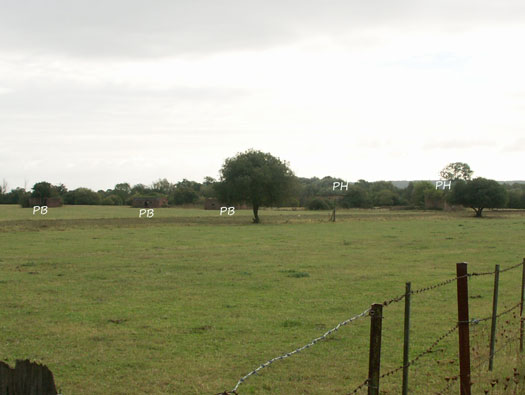

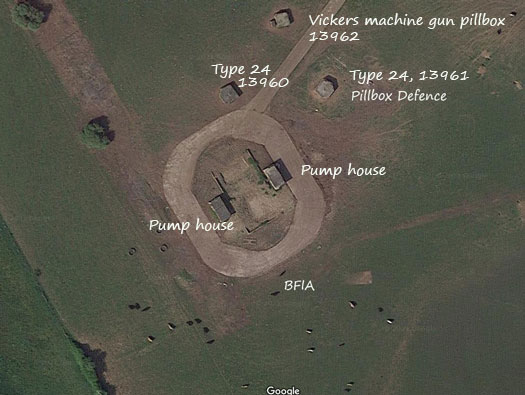

PB - Pillbox. PH - Pump house.

02 October 2005

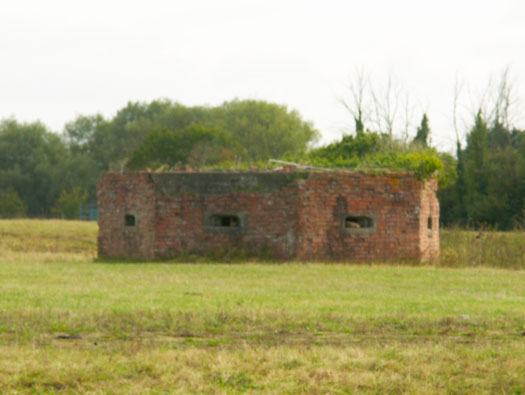

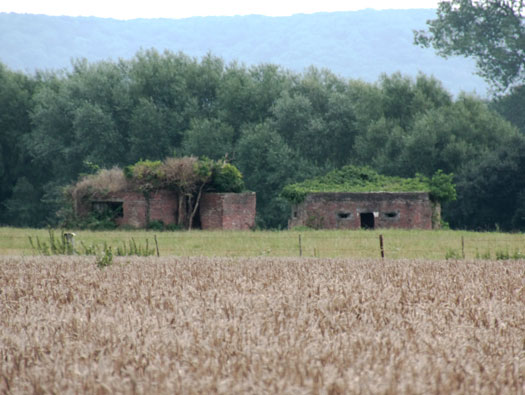

Left - 13962, Vickers machine gun pillbox.
Right - 13961 A thick-walled type 24 pillbox.

On its own - 13960 thick-walled type 24 pillbox.

Contemporary sources show that the pillboxes were authorised late in 1940:
Letter from HQ 8 Corps to Southern Command "Defence works at Yeovilton and Westonzoyland aerodromes is of such urgency that it must proceed without delay (bullet proof PBs only)" (4/10/1940).
Southern Command letter SC z/6049 RE "[works] Service at Yeovilton and WZ estimated at £21,000. Difference between shell proof and bullet proof PBs several thousand pounds.
Somerset Historic Environmental Record.

19 August 2012

Somerset HER image 57882. Photo by Chris Perry on 26 May 2018.

To pump houses here, one each side with sunken tanks below ground. Note the two semi armoured doors and the external pipework.

02 October 2005

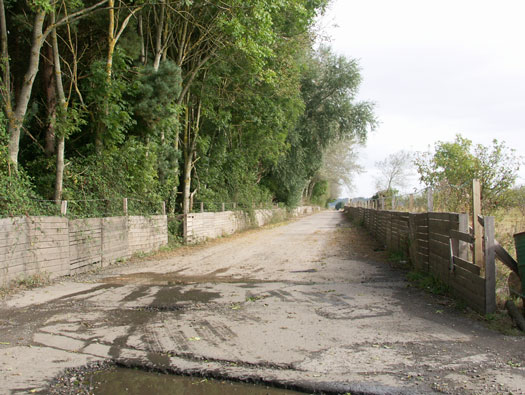

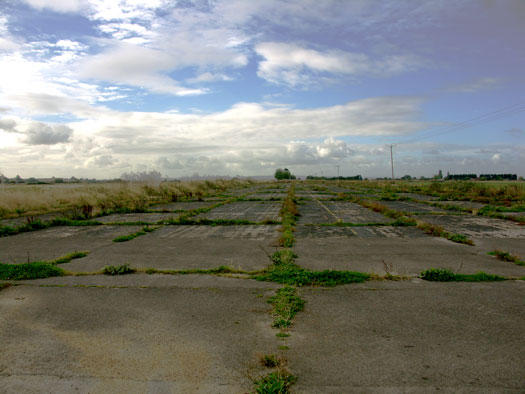

Main runway.

02 October 2005

02 October 2005

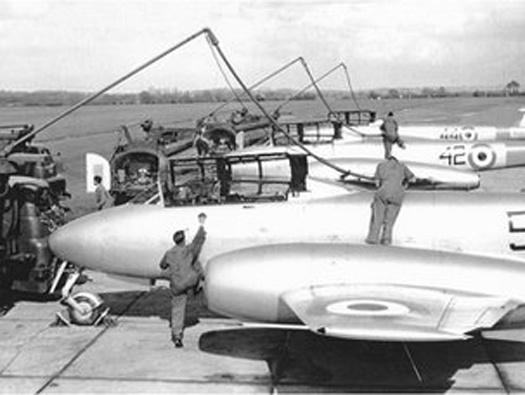

Meteors refuling.

Bridgewater Mercury

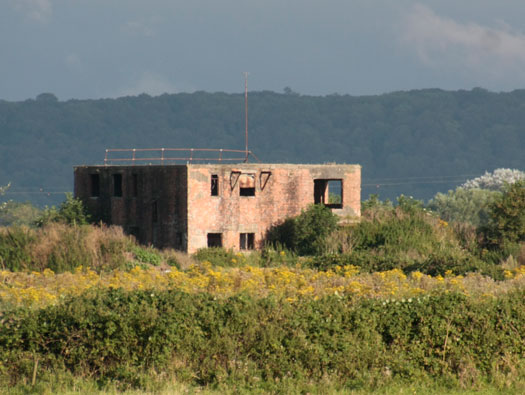

Control tower.

02 October 2005

12779/41 - 4097/43 - it was built in 1943.

This is the third API on the airfield. 281 - Aviation Petrol Installation (72000galls) Type 'E' - 9846/41. 280 - Transformer Plinth. 279 - Picket Post (type 'B') - N - 12404/41. This was a Nissen hut. Nothing remains of this one.

Somerset Historic Environment Record RAF aerial 1946

Mine
