RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

RAF · Somerset · England · United Kingdom

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
Situated on the eastern side of the airfield is: - Accommodation Sites (GR) [Ground Crew]. There were five sites in all, HF/DF Station, Sewage Works, Communal Site (GR), and Living Sites No. 1 & 2.

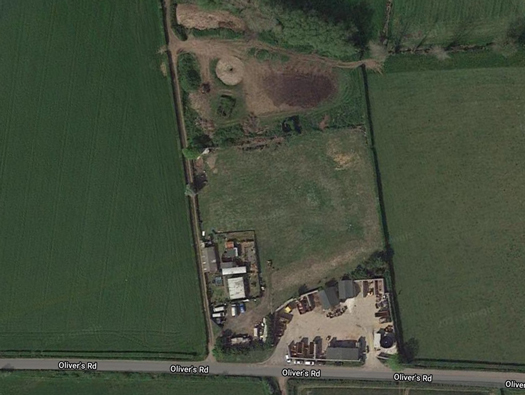

HF./D.F. Site, High Frequency and Direction Finding.
HF./D.F. Site, High Frequency and Direction Finding.
Sewage Site.
Sewage Site.
Living Site No.1 (GR).
Living Site No.1 (GR).
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

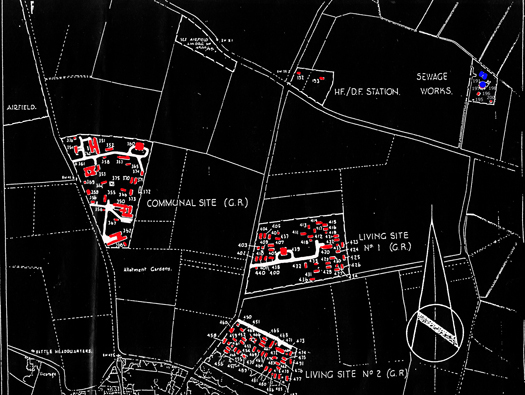

Plan of the dispersed sites with two living sites and a large communal site.

AIR 4049/45 Plan

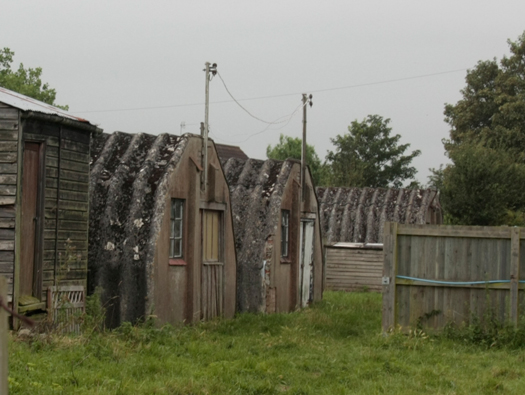

Handcraft Hut.
Handcraft Hut.

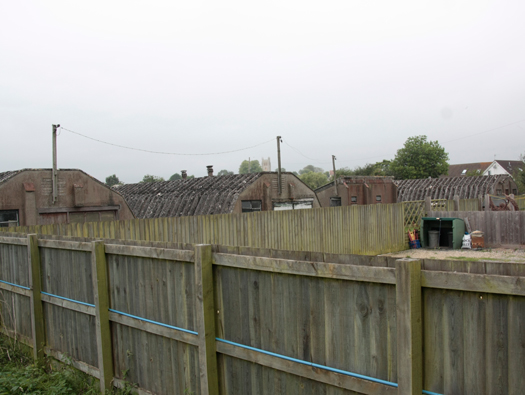

TB or Temporary Brick huts.
TB or Temporary Brick huts.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

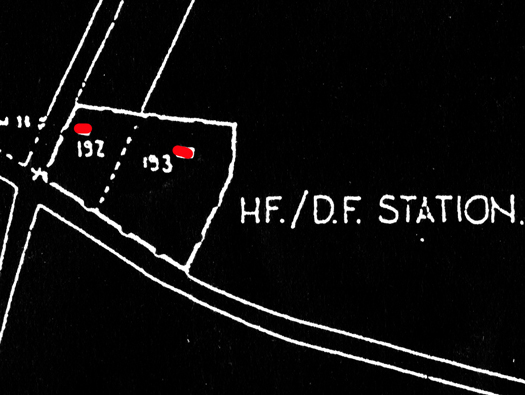

HF. D.F. Station with two huts: -
192 - Rest Hut - TB - 4561/40.
193 - HF/DF Hut - T - Marconi.
"T" = Tin. "TB" = Temporary Brick.

.

WW2 RAF Military HF Communications Receiver R1155A.
WW2 RAF Military HF Communications Receiver R1155A.
Direction Finding meter for WW2 RAF T1154/R1155.
Direction Finding meter for WW2 RAF T1154/R1155.
DF station on Lerwick, I am not sure what aerials were used here.
DF station on Lerwick, I am not sure what aerials were used here.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

google

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

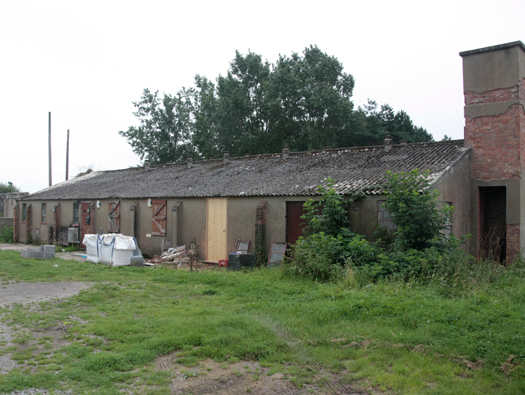

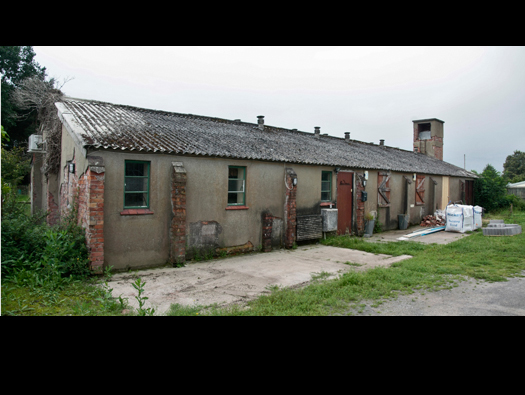

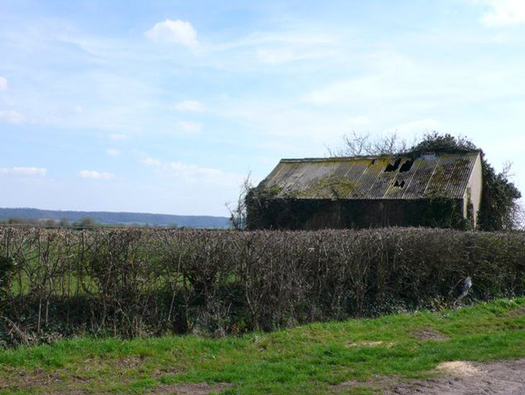

HF. D.F. Station. 192 - Rest Hut - TB - 4561/40. Its still there.

19 August 2012

A US radio room in Northern Ireland.
A US radio room in Northern Ireland.
W.A.A.F. radio operator.
W.A.A.F. radio operator.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

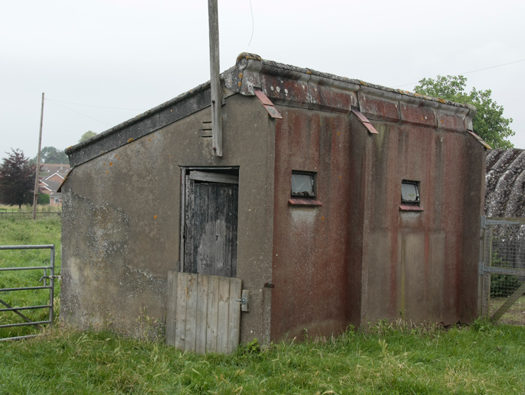

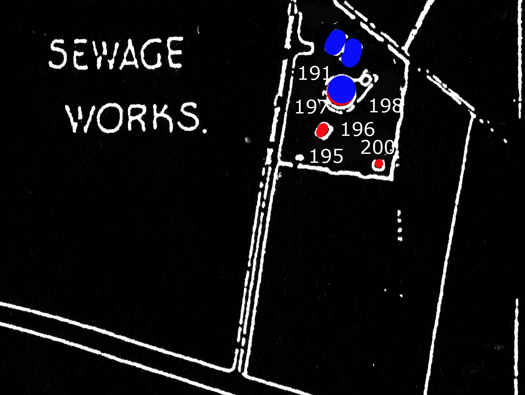

Sewage Works.

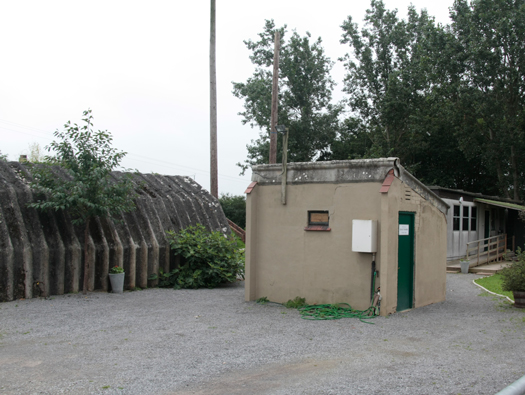

194 - Sewage pump house - TB - 17515/40.
195 - Tool house - 7493/40.
196 - Sedimentation tank - 1452/41.
197 - Percolating filter - 1453/41.
198 - Humus tank - 1454/41.
199 - Sludge drying beds - 1454/41.
200 - Transformer plinth.

AIR 4049/45 Plan

197 - Percolating filter - 1453/41.
197 - Percolating filter - 1453/41.
195 - Tool house - 7493/40.
195 - Tool house - 7493/40.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

google

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

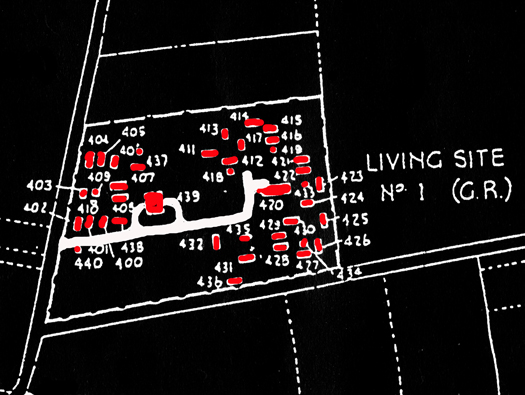

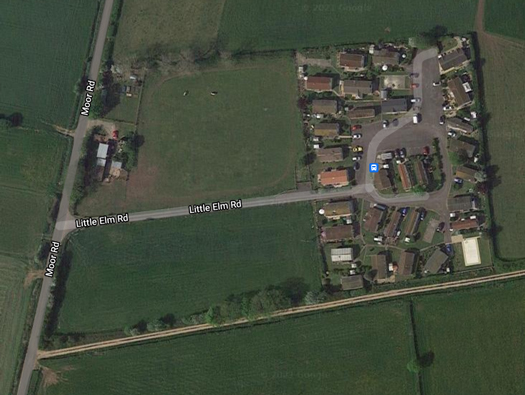

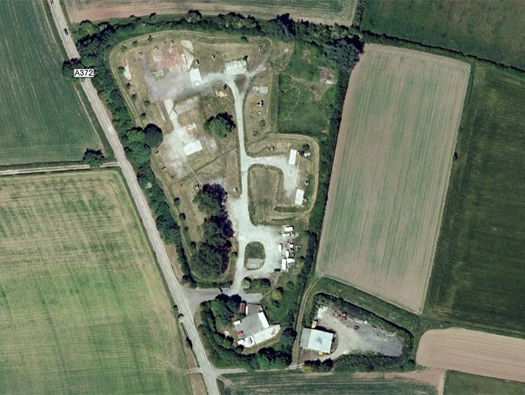

Living Site No.1 (GR). Handcraft huts for Officers and servants, Sergeants nine or ten per hut, Airmen‘s huts for 18men. About 50 Officers, 68 Sergeants and 216 men.

AIR 4049/45 Plan

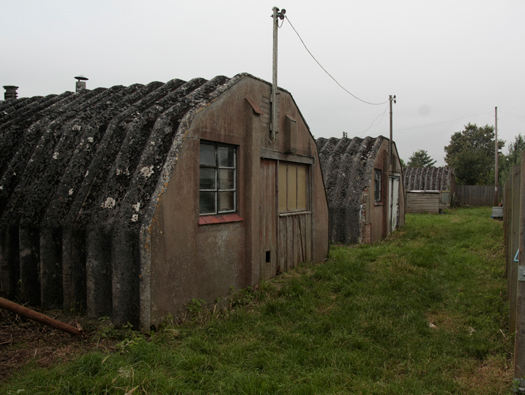

Handcraft hut.
Handcraft hut.
Ablutions.
Ablutions.
Latrines.
Latrines.
437 - Fuel compound (54'x45') - Wire fence - 9109/41. To store coal & coke for the heating of the huts.
437 - Fuel compound (54'x45') - Wire fence - 9109/41. To store coal & coke for the heating of the huts.
438 - Air Raid Shelters (Stanton) 50 persons - AM Supply.
438 - Air Raid Shelters (Stanton) 50 persons - AM Supply.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

google

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

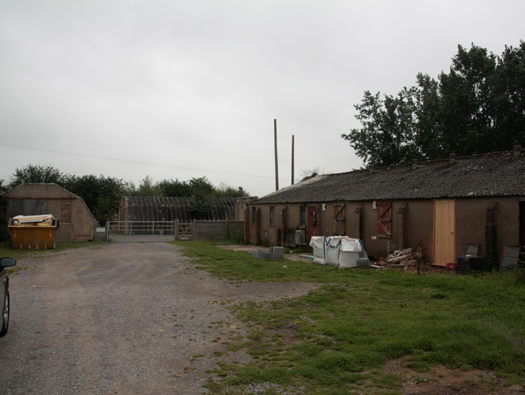

Now luckily on our visit we managed to see what was left. About 50 Officers, 68 Sergeants & 200 men in Handcraft huts.

AIR 4049/45 Plan

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

google

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

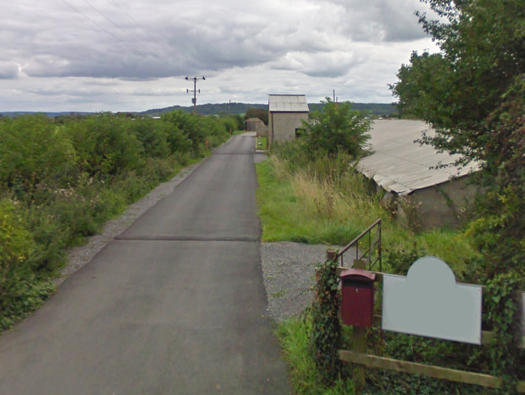

Main entrance. 450 - Picket post (type 'A') - N - 12404/41.

Google

Picket post.
Picket post.
Picket post plan.
Picket post plan.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

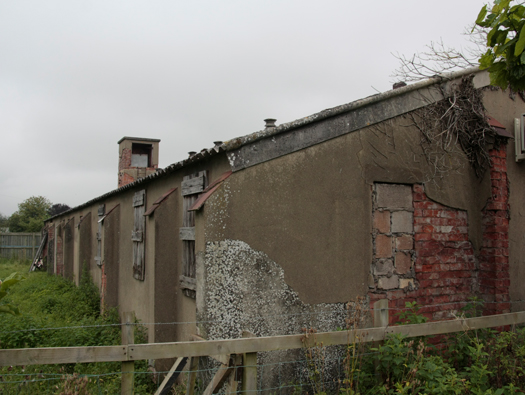

472 - Sergeants & A/Ms Ablutions & Drying Room(s) - TB - 16317/41.

19 August 2012

16317/41.
16317/41.
Bathroom.
Bathroom.
Hot tank & water heater.
Hot tank & water heater.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
472 - Sergeants & A/Ms Ablutions & Drying Room(s) - TB - 16317/41.

19 August 2012

Information
Information
Nissen hut drying room.
Nissen hut drying room.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

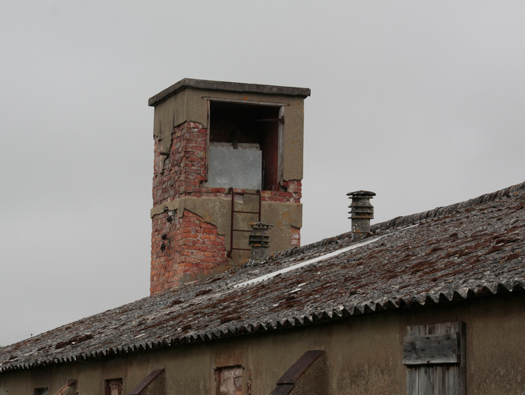

472 - Sergeants & A/Ms Ablutions & Drying Room(s) - TB - 16317/41. Water tank in the tower, which also doubles as a chimney for the heating plant.

19 August 2012

Water tank.
Water tank.
Ventilation.
Ventilation.
Water tank.
Water tank.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
472 - Sergeants & A/Ms Ablutions & Drying Room(s) - TB - 16317/41. Note the Temporary Brick construction with a line of brick piers holding the joists up. Brick walls and rendered walls.

19 August 2012

Temporary Brick bond. Single brick with brick piers to hold the wooden or steel joists.
Temporary Brick bond. Single brick with brick piers to hold the wooden or steel joists.
Plan of shows and baths.
Plan of shows and baths.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

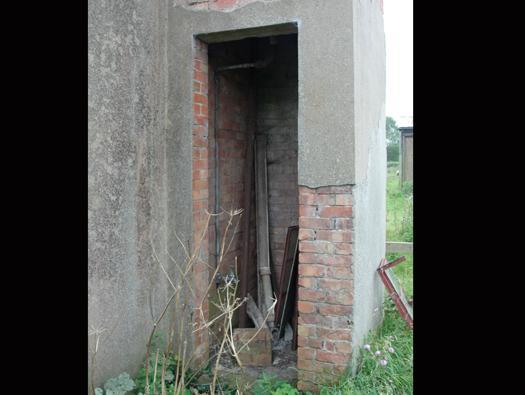

472 - Sergeants & A/Ms Ablutions & Drying Room(s) - TB - 16317/41. The bottom of the water tower and you can see the galvanised water pipe running up inside.

19 August 2012

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

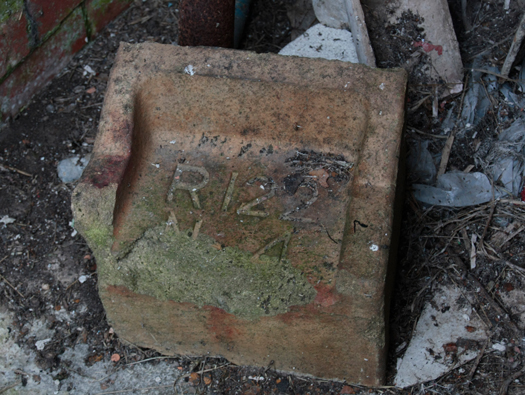

472 - Sergeants & A/Ms Ablutions & Drying Room(s) - TB - 16317/41. Unsure what this brick was for??

19 August 2012

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

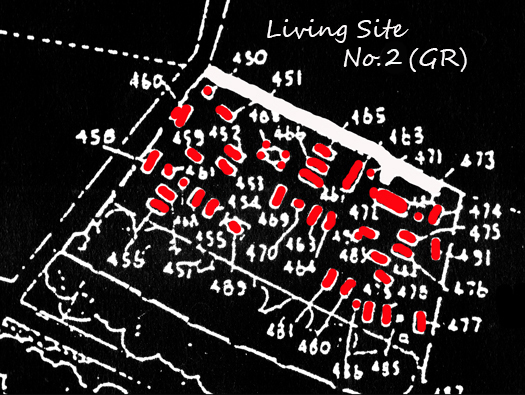

469/463/464 - Sergeants Quarters (for 10) (type 'B') - H - 14420/41. 478 - Latrines - TB - 16330/41.

19 August 2012

Handcraft hut inside.
Handcraft hut inside.
Latrines.
Latrines.
Plan.
Plan.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
Three Sergeants Handcraft huts in a row.

19 August 2012

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
478 - Latrines - TB - 16330/41.

19 August 2012

Plan.
Plan.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
484 - Airmen‘s Latrines (22) - TB - 14330/42. A small latrine.

19 August 2012

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

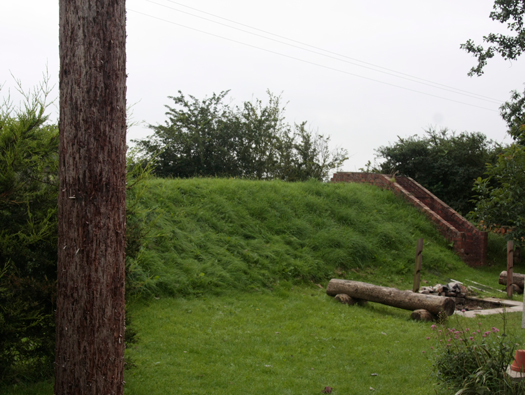

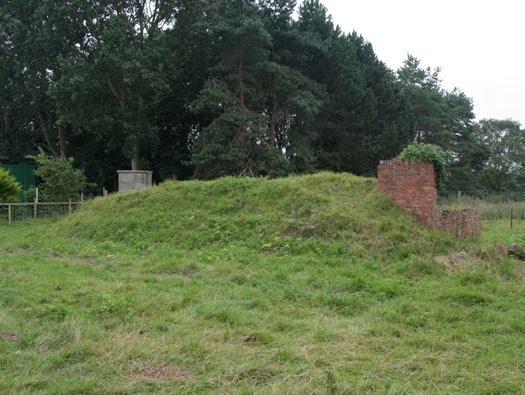

Stanton air raid shelter for 50men.

19 August 2012

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

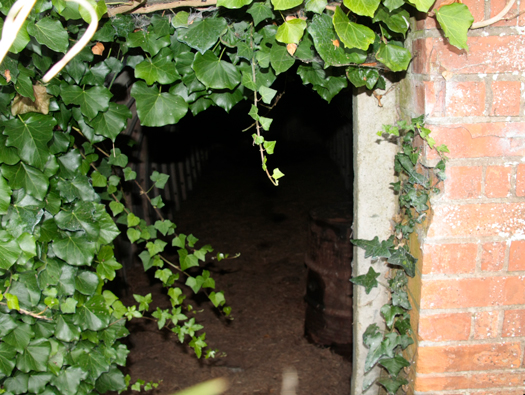

Stanton air raid shelter for 50men. Bricked entrance.

19 August 2012

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
Stanton air raid shelter for 50men. The view inside.

19 August 2012

Shelter design.
Shelter design.
Stanton shelter halves and look like a set of whale bones.
Stanton shelter halves and look like a set of whale bones.
Inside a shelter.
Inside a shelter.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

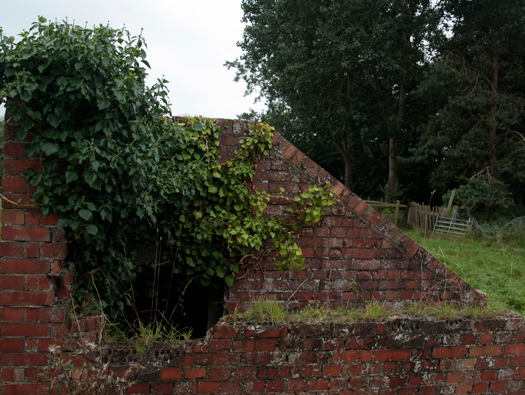

The second Stanton air raid shelter for 50men. There were three Stanton and also two blast shelters.

19 August 2012

Type 2360/41 50man blast shelters.
Type 2360/41 50man blast shelters.
Type 2360/41 50man blast shelters, the type that were here..
Type 2360/41 50man blast shelters, the type that were here..
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

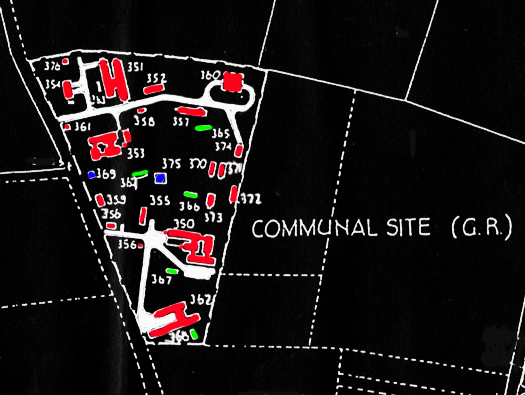

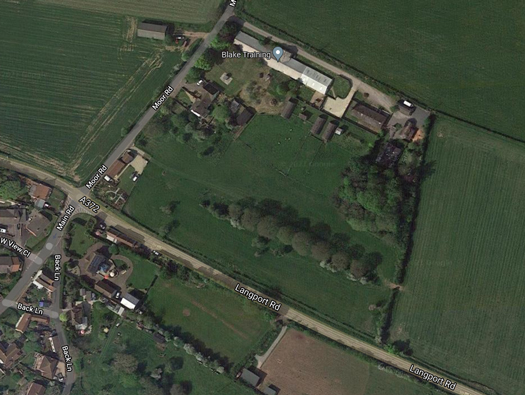

Very little is left now. The Communal site was the area where all ranks could come for their meals and also to relax after work. The Officers had an Officers Mess, quite plush with leather chairs around a large open fire, plus their dining room for meals. With table cloths and meals served to them by W.A.A.F.'s or civilian servants. The Sergeants in a comfortable mess, made better by being the group that ran the RAF supply system, always were well looked after. Then the Corporals mess, not quite so comfy. Then the Men's Institute and dinning hall. Large feeding rooms, areas where they can relax, write letters, read books/magazines and play card/darts games etc.
350 - Officers Mess (65) - H - 12877/41.
351 - Dining Room (352) - H - 12310/41.
353 - Institute with NAAFI Staff quarters (60 Cpls) - TB - 19041/41.
357 - A/M Showers, Ablutions Etc. 6 W.A.A.F. - 1861/42.
360 - Fuel Co,pound (54'x46') - Wire fence - 9108/41.
361 - Picket Post (Type 'A') - H - 12404/41.
362 - Sergeant Mess (120) - H - 12404/41.
369 - H.L. Water Tank (50,000gal) - 12008/41.
375 - Static Water Tank (25,000gal) - 4100/40.

AIR 4049/45 Plan

Plan of a 2064/42 at RAF Stoney Cross very like the one here.,
Plan of a 2064/42 at RAF Stoney Cross very like the one here.,
Officers Mess at RAF Chilbolton a 9029/41 in 24ft Nissen but the Mess here would have looked very like this one.
Officers Mess at RAF Chilbolton a 9029/41 in 24ft Nissen but the Mess here would have looked very like this one.
H.L. Water Tank (50,000gal) a Braithwaite tower type.
H.L. Water Tank (50,000gal) a Braithwaite tower type.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

google

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

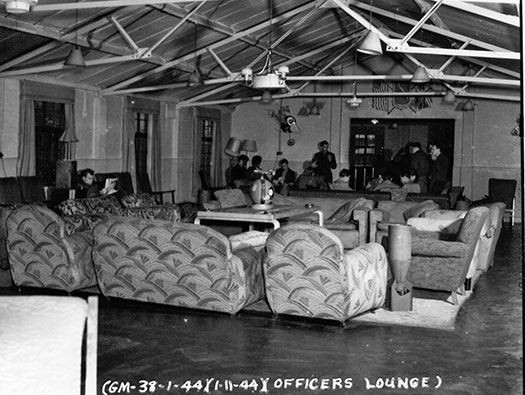

Inside an Officers Mess lounge, this type of hut is a temporary Brick where as here at ZW it was a Handcraft hut.

Archive

RAF Weston Zoyland, Somerset, Dispersed Sites (GC)
Sergeants Mess breakfast, look at the slices of bead!.

Archive

RAF Honeybourne's Sergeants Mess.
RAF Honeybourne's Sergeants Mess.
Plan of the Sergeants Mess here, 362 - Sergeant Mess (120) - H - 12404/41.
Plan of the Sergeants Mess here, 362 - Sergeant Mess (120) - H - 12404/41.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)


Archive

Canteen staff.
Canteen staff.
RAF Weston Zoyland, Somerset, Dispersed Sites (GC)

19 August 2012
