RFC/RAF Weston-on-the-Green, Oxfordshire
RFC · Oxfordshire · England · United Kingdom
RFC/RAF Weston-on-the-Green
What can be found :
The whole airfield is intact and can be viewed safely without needing to enter the site. Three good places are the south and north side and also a lay-by on the B430.
There are many WW2 buildings extant, a nice T2 hangar several Temporary (TB) Brick huts, a perimeter track, the sites north side and south side where at least one Blister hangar was placed and flight offices. WW1 there is what I feel is a Sergeants Mess and an Officers Mess building. There maybe more to find.
What was there :
WW1- Opened around 1915/16 - but building started by German prisoners of war and Canadian military personnel in 1917 becoming No.28 TDS.
It was closed in 1921 and redeveloped when a number of the original buildings were demolished.
Originally No's 50 & 64 Training Sqn 1917/18.
No.28 Training Depot Station, formed 15 August 1918, disbanded 31 March 1919.
Aircraft - Salamander, Avro 504K and Camel.
6 x GS sheds (General Service).
1 x ARS (Aircraft Repair Shed).
2 x Aeroplane stores.
1 x Power house. Etc. WW2 -
2 x 12bay Bessoneau hangars.
1 x T2 hangar.
4 x Double 69´ Blister hangars.
6 x Single 69´ Blister hangars.
697 x Officers, SNCO´s & O.R., SNCO´s & O.R´s.
134 x WAAF´s.
By 1921 the camp went very quite and became a satellite to RAF Brize Norton and by WW2 it became training station for new pilots. Later it was found that pilots could be trained in the US, Canada, Southern Africa and it then went over to glider and parachute training.
It is still in RAF service today and used as a DZ for Joint Services Parachute Centre.
RFC/RAF Weston-on-the-Green
RFC/RAF Weston-on-the-Green

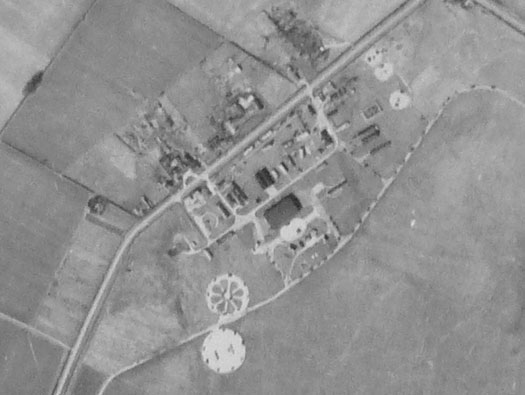

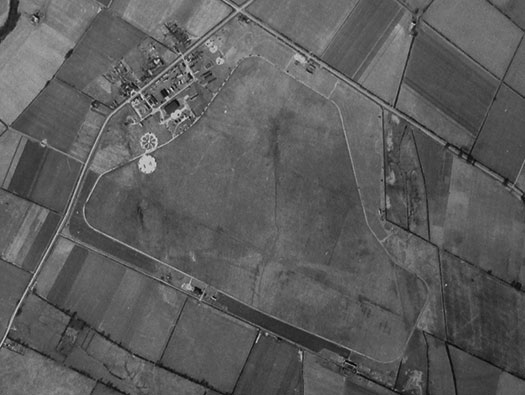

A 1951 air photo of the complete airfield.
20 March 1951
RFC/RAF Weston-on-the-Green
Inside is the airfield site where all the work was carried out. Outside the accommodation site.
The two round shapes on the south side are hard stands for barrage balloons used for parachuting. Balloons were used as a way of getting a parachutist through his/her course quite quickly and cheaply. You only need to fill with a stick of parachutists, raise, drop them, lower and start all over again.
20 March 1951
RFC/RAF Weston-on-the-Green

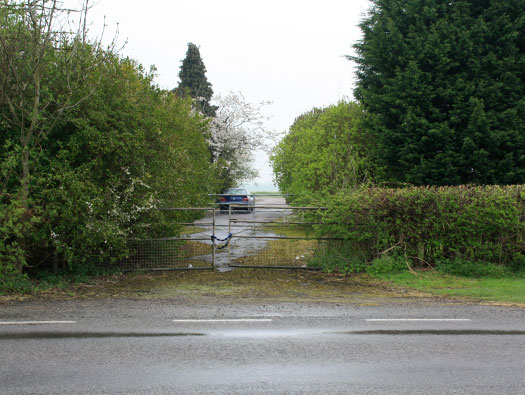

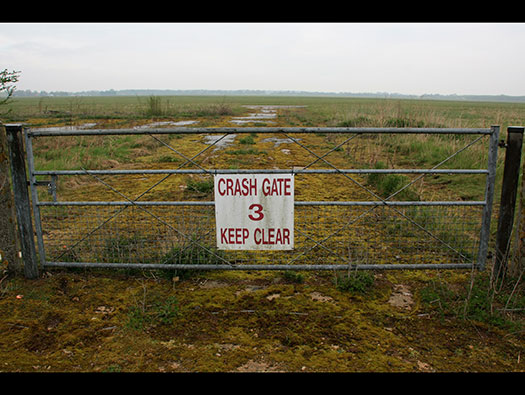

South side a crash gate on to the airfield where a large concrete hard stand for a Blister hangar and a flight hut for training aircraft to work from.
25 April 2010
RFC/RAF Weston-on-the-Green

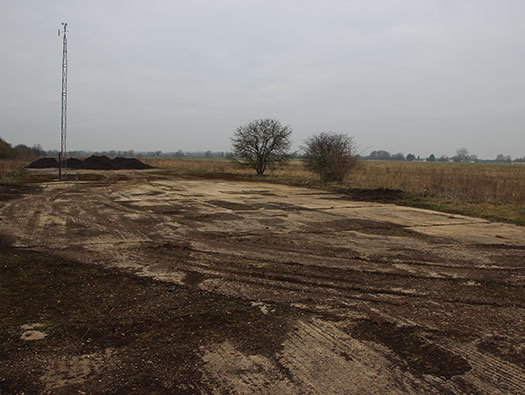

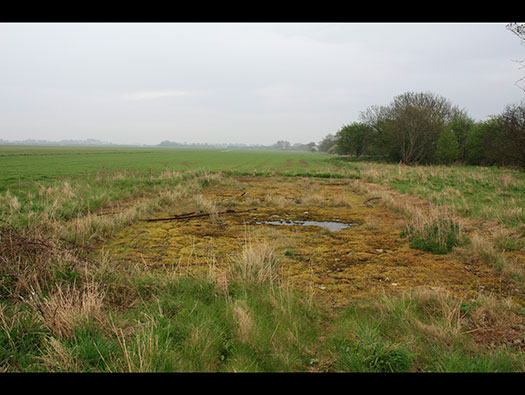

Site of the Blister hangar.
25 April 2010
RFC/RAF Weston-on-the-Green

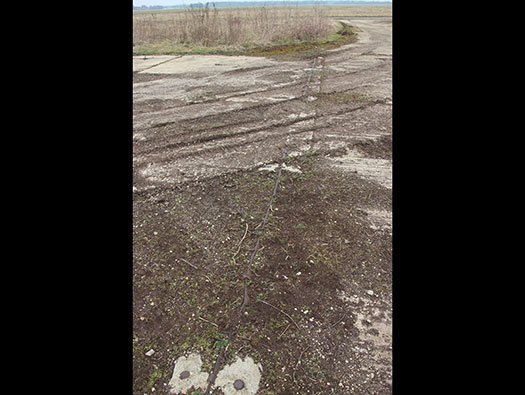

Hold fast and pins to hold the door curtains down for the hangar.
25 April 2010
RFC/RAF Weston-on-the-Green

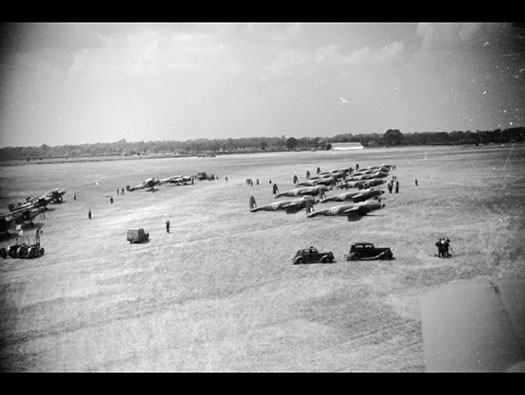

Left side is an Anson then several Hawker Hart/Hind type glider tugs.
On the right about eleven Hotspur training gliders.
In the far distance you can just see another Blister hangar.
At the outbreak of war in 1939, flying came back to the airfield as a Relief Landing Ground (RLG) for Operational Training Units (OTU). There was no real infrastructure, airmen were being billeted out on villagers. The airfield needed upgrading. Its next task was as a Glider Training School (GTS) with Hotspur training gliders. This was an ideal site as the area was relatively flat, so gliders could if necessary, land anywhere in the surrounding countryside. A few Bessonneau, temporary hangars were erected as hangarage. By 1943 there were four Bessonneau and eight Blister hangars, by the end of the war, a T2 hangar, plus five extra over double Blister hangars. With war ending, No.3 Maintenance Unit (MU) turn up and use the airfield for storage.
1945 and RAF Upper Heyford became No1 Parachute Training School (PTS) and the airfield became a landing ground for parachuting. Another addition was adding a Kite balloon to allow pupil parachutists to be raised to about 400ft and then jump out of the basket.
25 April 2010
RFC/RAF Weston-on-the-Green
Hotspur training glider landing.
25 April 2010
RFC/RAF Weston-on-the-Green
Flight office base.
25 April 2010
RFC/RAF Weston-on-the-Green

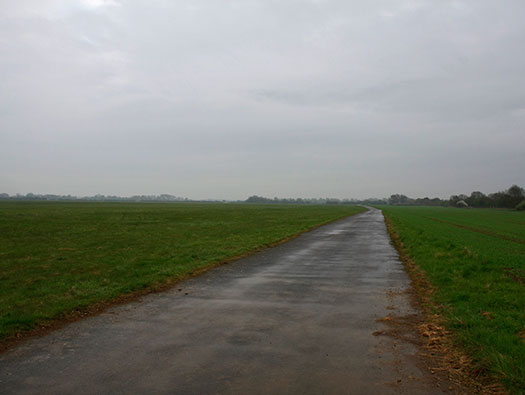

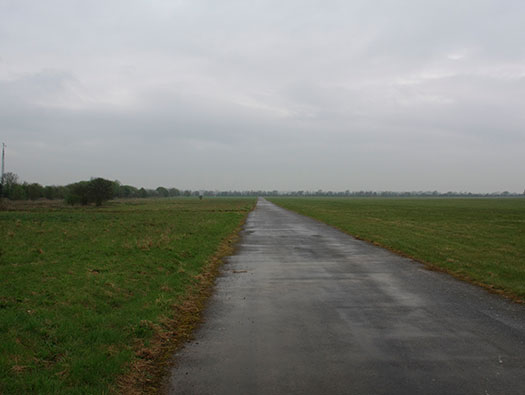

Perimeter track looking west.
25 April 2010
RFC/RAF Weston-on-the-Green
Perimeter looking east. This is a standard perimeter track for fighter and training stations and not used for moving aircraft around unlike the 50ft perimeter tracks on bomber and bomber training stations.
25 April 2010
RFC/RAF Weston-on-the-Green
Airfield site.
25 April 2010
RFC/RAF Weston-on-the-Green

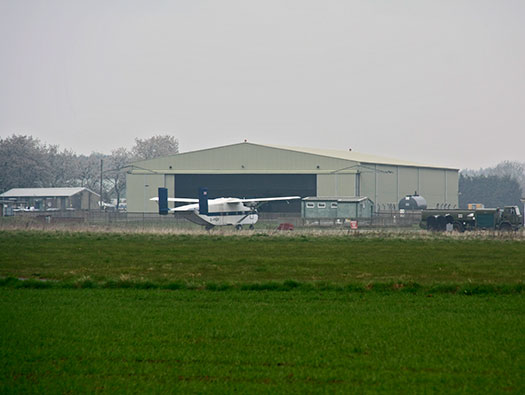

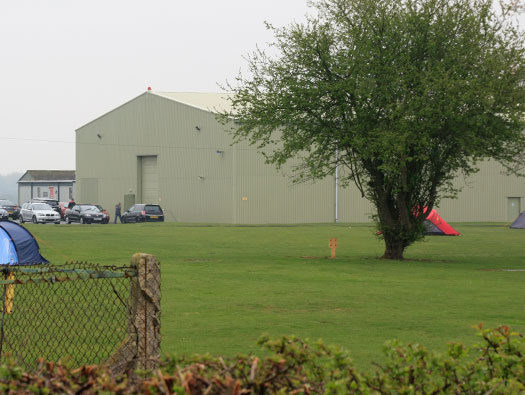

T2 hangar. As WW2 started hangars were called the old name of Sheds. With an American influence and a modernising of names the word hangar (French) became used.
25 April 2010
RFC/RAF Weston-on-the-Green
This T2 hangar has been split between an aircraft hangar for their parachute plane and the other end a parachute training area where the teaching of packing and using parachutes.
25 April 2010
RFC/RAF Weston-on-the-Green

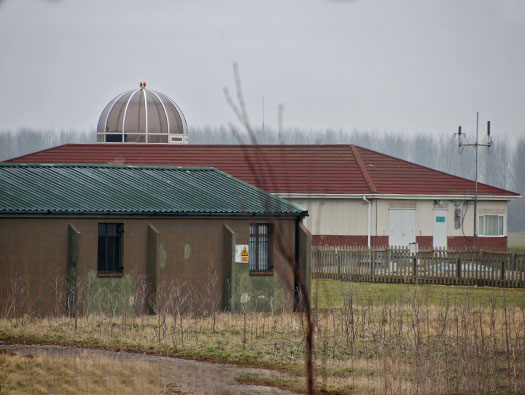

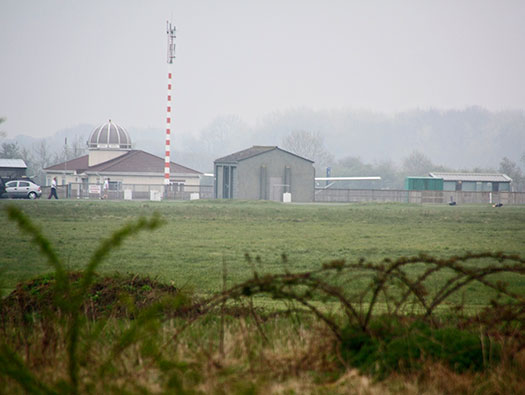

This very odd designed domed building is it the new control tower for the airfield. I am presuming the dome is so there is a 360° horizontal view and a full view of the skies above to watch for parachutes?
25 April 2010
RFC/RAF Weston-on-the-Green
Another view of the control tower?? and the NFE (Night Flying Equipment) store. This store would be full of night time landing aids, as there was usually no electricity on the flying area, lights were needed to show the wind direction when landing at night and also a line of Goose necked flares to make up runway lights.
25 April 2010
RFC/RAF Weston-on-the-Green

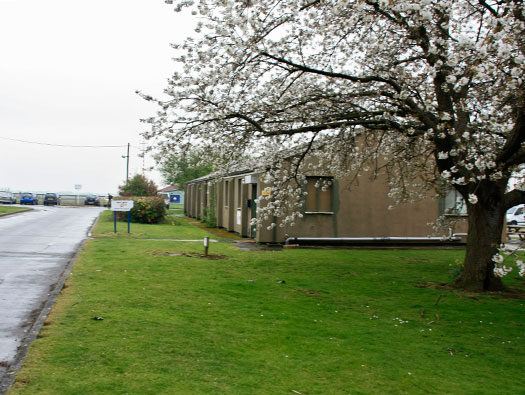

A standard TB hut could have originally been a class room for pilot training.
25 April 2010
RFC/RAF Weston-on-the-Green

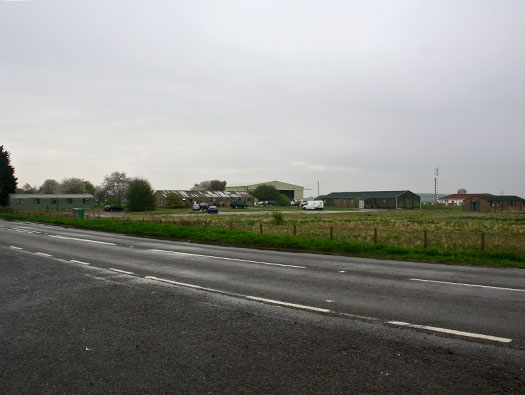

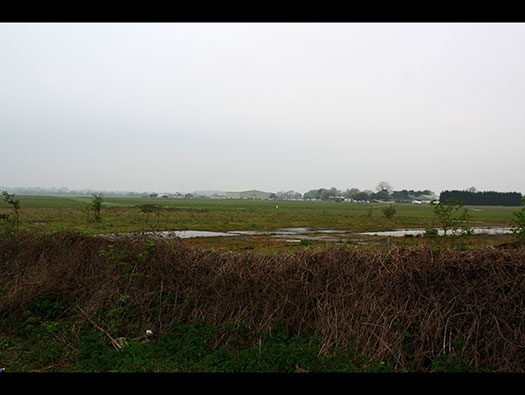

Airfield site from the lay-by.
25 April 2010
RFC/RAF Weston-on-the-Green

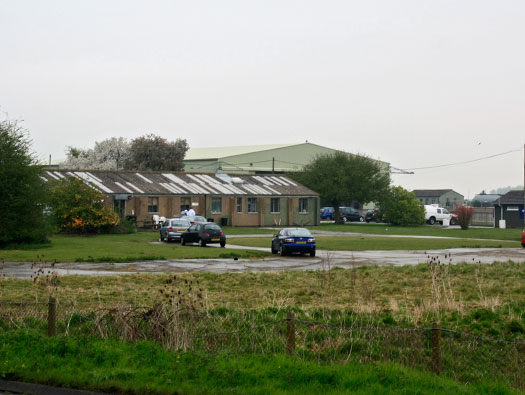

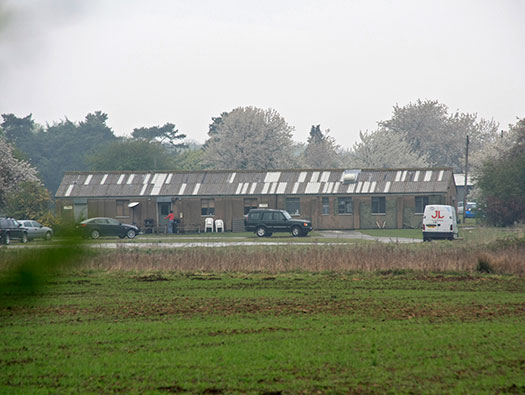

Another double aspect TB hut, this may have been the operations hut where operations would be planned and pilots and crews briefed.
25 April 2010
RFC/RAF Weston-on-the-Green

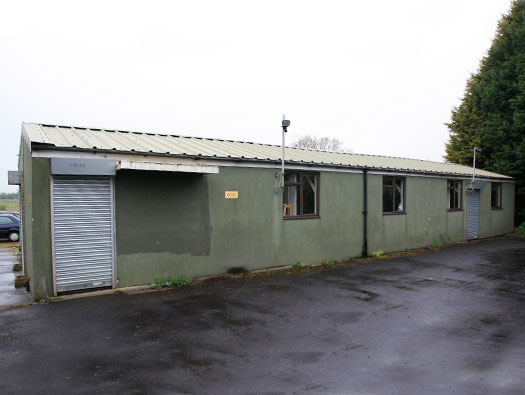

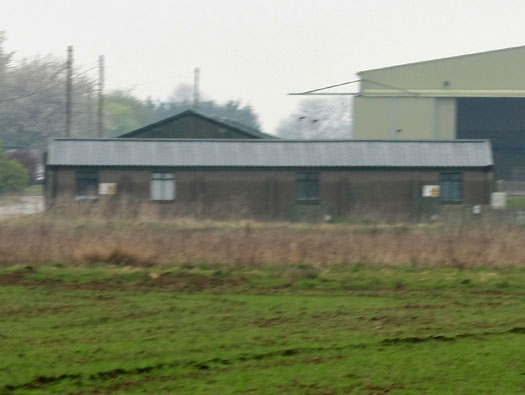

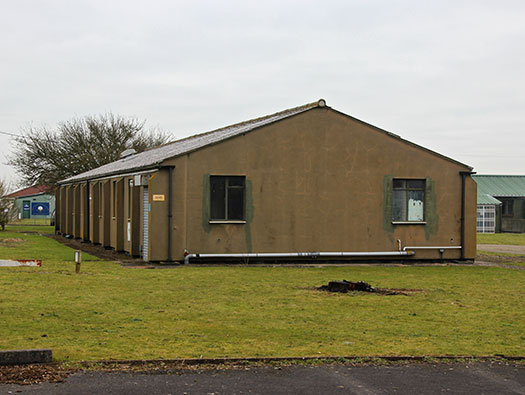

Double aspect TB hut.
25 April 2010
RFC/RAF Weston-on-the-Green
Double aspect TB hut.
03 March 2013
RFC/RAF Weston-on-the-Green

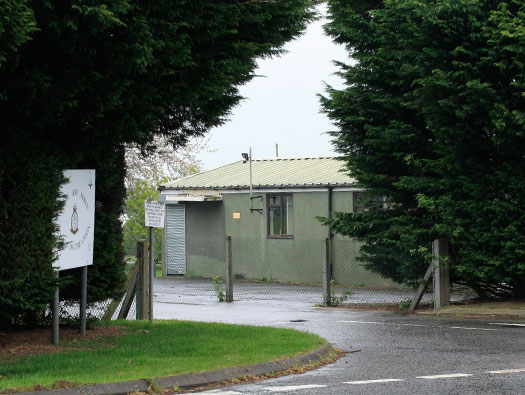

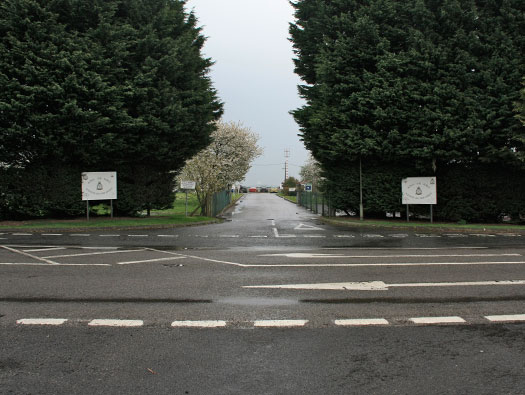

Main entrance today.
25 April 2010
RFC/RAF Weston-on-the-Green

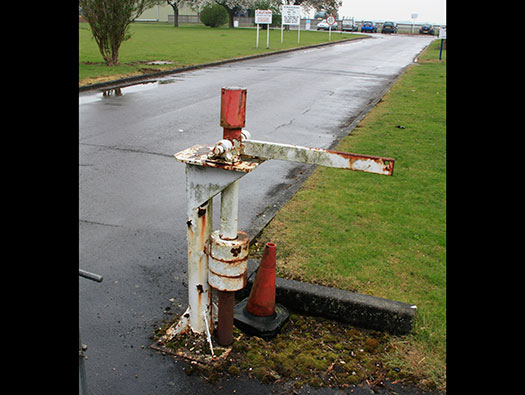

The old road barrier.
25 April 2010
RFC/RAF Weston-on-the-Green
A Hall hut.
25 April 2010
RFC/RAF Weston-on-the-Green
Hall hut.
25 April 2010
RFC/RAF Weston-on-the-Green
This picture was taken inside a Hall hut at RAF Weston-on-the-Green and has the same dimensions and roof joists that the earlier hut has so maybe the same hut?
AIR doc
RFC/RAF Weston-on-the-Green
The large TB hut.
25 April 2010
RFC/RAF Weston-on-the-Green

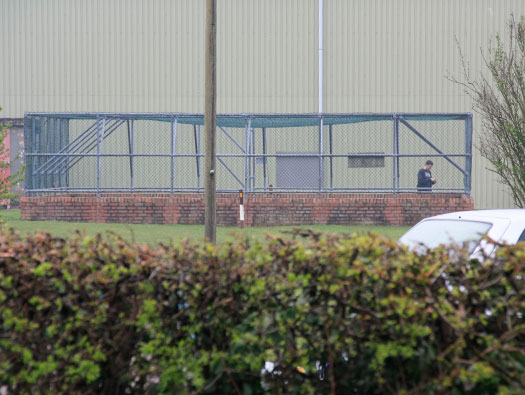

Emergency Water Supply (EWS) in case of fire.
Static Water Tank about 60,000gal 511/41.
25 April 2010
RFC/RAF Weston-on-the-Green
Ready Use Pyrotechnic Store 2647/37.
To store any flairs etc. that have to be removed from planes being repaired in the hangar.
25 April 2010
RFC/RAF Weston-on-the-Green
T2 hangar.
25 April 2010
RFC/RAF Weston-on-the-Green
T2 hangar. The rear side has been sealed up and used to train parachutists.
25 April 2010
RFC/RAF Weston-on-the-Green
The second entrance. Most military establishments had two entrances, this was the original Main Gate and in WW1 the Guard house would have sat on one side.
25 April 2010
RFC/RAF Weston-on-the-Green

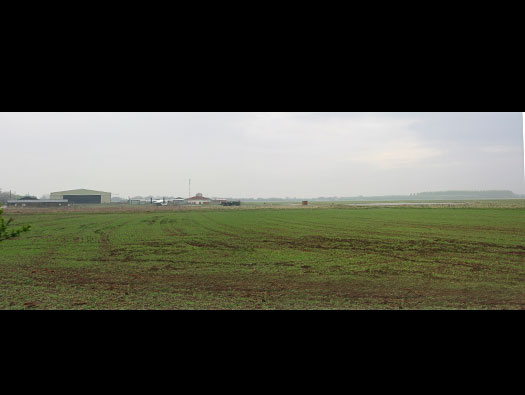

The view from the north.
25 April 2010
RFC/RAF Weston-on-the-Green

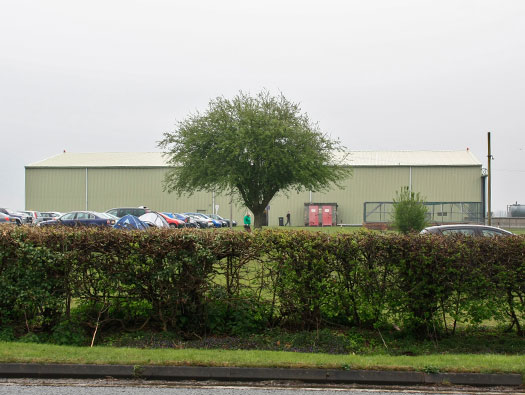

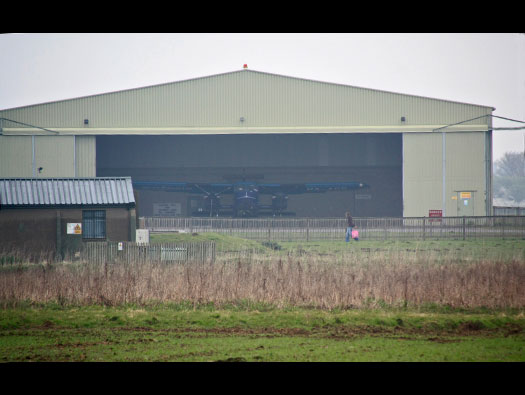

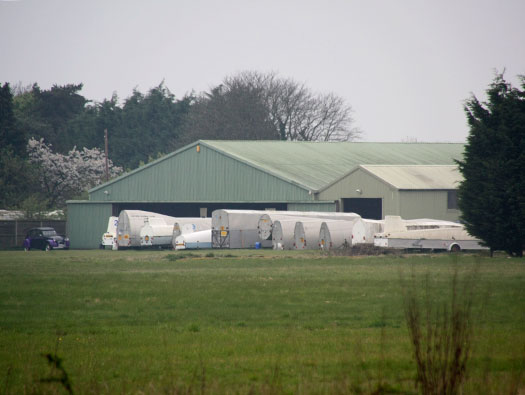

Oxford Gliding Club´s new hangar.
25 April 2010
RFC/RAF Weston-on-the-Green

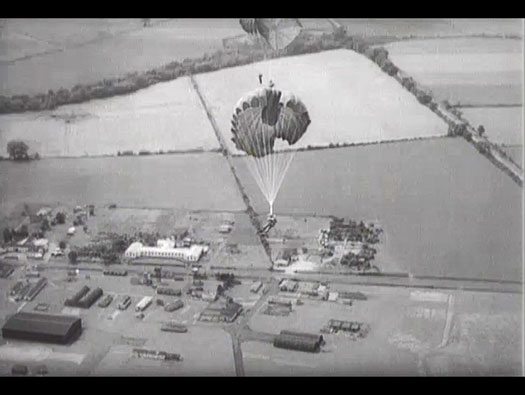

WW2 parachute training over the camp, the Officers mess and the T2 hangar show up very well. Several Romney/Nissen huts.
25 April 2010
RFC/RAF Weston-on-the-Green
õltere Anlage ansch. als Unterkunft benutzt : -
Older facility subsequently used as accommodation.
This is a Luftwaffe plan of dated 1941, they had photographed nearly every RAF airfield they could by the start of the war.
Lfl. Kdo, 2 Februar 1941 Luftwaffe plan of RAF Weston on the Green
RFC/RAF Weston-on-the-Green

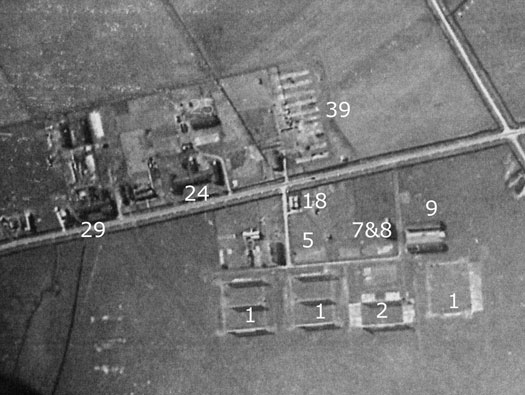

Now we head back to World War One and the original Royal Flying Corps/Royal Air Force station of 1917 to 1919.
No.28 Training Depot Station.
Aircraft at one time were:
36 x Salamanders.
36 x Avro 504's.
Possibly constructed by Canadians and German POW's, which was normal practice, the POW's built a lot of RFC's TDS's.
A railway was laid from RFC Bicester to aid in bringing in materials for its construction.

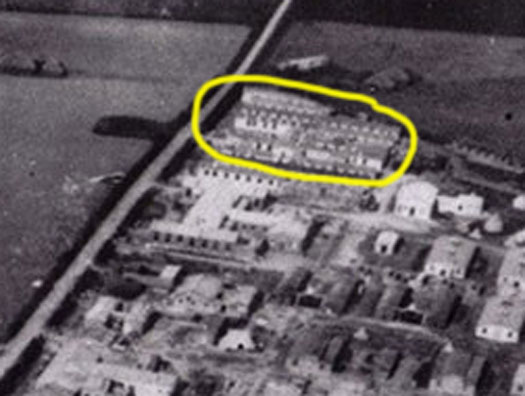

The bottom of the picture is the technical site with (the photos was taken in the 1920's and a lot is missing) with the:
1 - 3 x Twin Belfast Truss hangars.
2 - ARS shed, Aircraft Repair Shed. With tow attached aircraft stores for wings, body’s, etc.
5 - Technical Store.
7&8 - Workshops woodwork & metal.
9 - Motor transport, two rows of open sheds 13 bays per shed and an MT office.
18 - Guard house.
The top of the picture is the communal site.
24 - Officers Mess and probably huts behind for Officers quarters (pupils).
29 - Sergeants Mess.
39 - Hostel (Women), there could be on some stations up-to 200 women. Women's Auxiliary Army Corps.
Hangars are often known as Sheds (hangar in French is shed) either is acceptable.
Belfast Truss hangars - General Service Flight Sheds..
From Airfield Focus N°73 - RAF Tallaght
RFC/RAF Weston-on-the-Green
Things to Come by Alexander Korda 1936. You can watch it here, they used the old hangars as a backdrop in the film.
20 September 2025
RFC/RAF Weston-on-the-Green

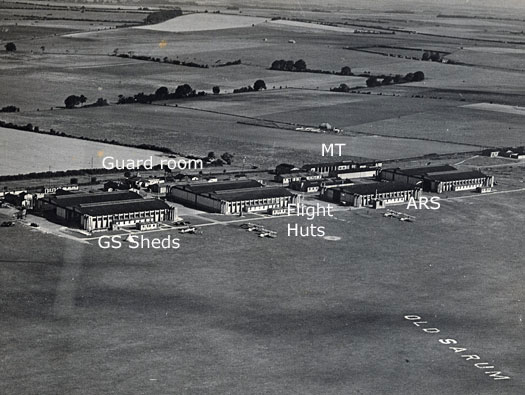

I have used RFC/RAF Old Sarum here with several photos showing what Weston-on-the-Green would have looked like.
Here is another 1920 Old Sarum with the same hangar layout and even the Motor Transport is in the same place.
1920
RFC/RAF Weston-on-the-Green
29 on plan.

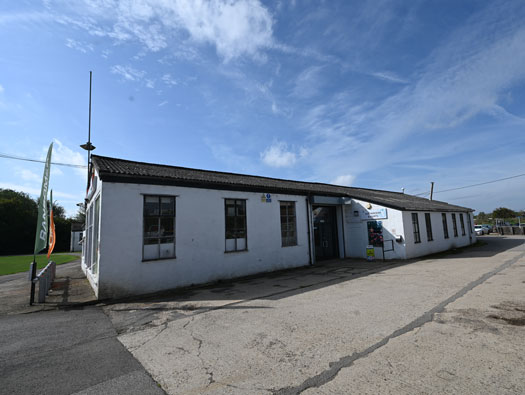

This is the WW1 Sergeants Mess, also like the Officers Mess, re used for WW2.
20 September 2025
RFC/RAF Weston-on-the-Green
29 on plan.

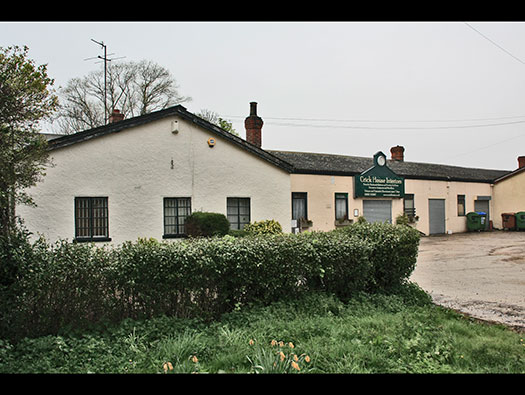

WW1 Sergeants Mess front view.
25 April 2010
RFC/RAF Weston-on-the-Green
29 on plan.
WW1 Sergeants Mess.
25 April 2010
RFC/RAF Weston-on-the-Green
29 on plan.
WW1 Sergeants Mess.
20 September 2025
RFC/RAF Weston-on-the-Green
29 on plan.
WW1 Sergeants Mess.
20 September 2025
RFC/RAF Weston-on-the-Green
29 on plan.
WW1 Sergeants Mess one of the anti-rooms with a fireplace.
20 September 2025
RFC/RAF Weston-on-the-Green
29 on plan.

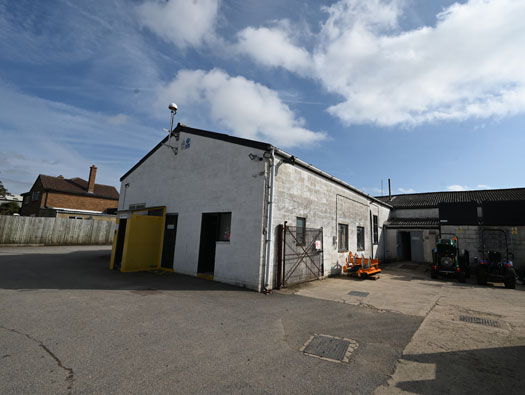

WW1 Sergeants Mess the side.
25 April 2010 - 19 September 2025
RFC/RAF Weston-on-the-Green
29 on plan.
WW1 Sergeants Mess the rear.
20 September 2025
RFC/RAF Weston-on-the-Green

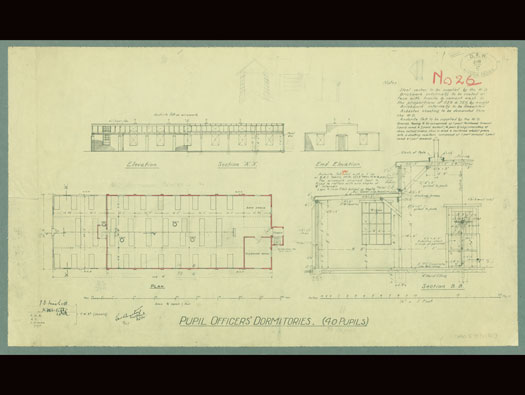

Pupil Officers Dormitories.
DFW 518/17 National Archives in Dublin -- Old Sarum 1918
RFC/RAF Weston-on-the-Green
Pupil Officers Dormitories.
Men's accommodation.
eBay
RFC/RAF Weston-on-the-Green
39 on plan - Hostel For W.A.A.C.
Women’s Auxiliary Army Corps.
RAF Old Sarum 1918 - AM W&B 234/18 National Archives in Dublin
RFC/RAF Weston-on-the-Green
24 on plan - Officers Mess, would be accommodation, rest room and Mess. Each Officer would have either a room to himself or share with one other. They would have a servant to polish their boots, clean his brass and wake him in the morning with a cup of tea. A different world.
25 April 2010 - 20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.
20 September 2025
RFC/RAF Weston-on-the-Green

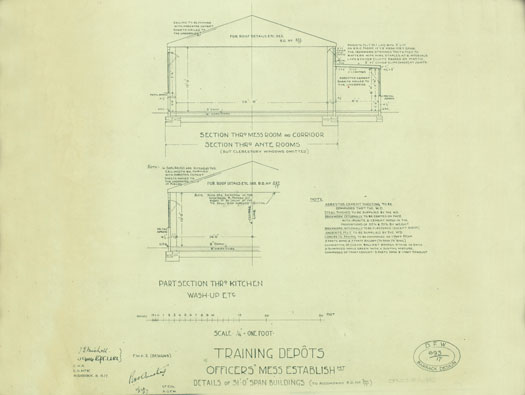

Officers Mess elevation.
DFW 693/17 National Archives in Dublin
RFC/RAF Weston-on-the-Green

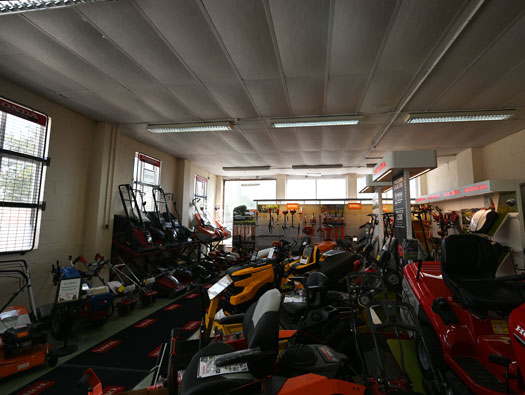

24 on plan.

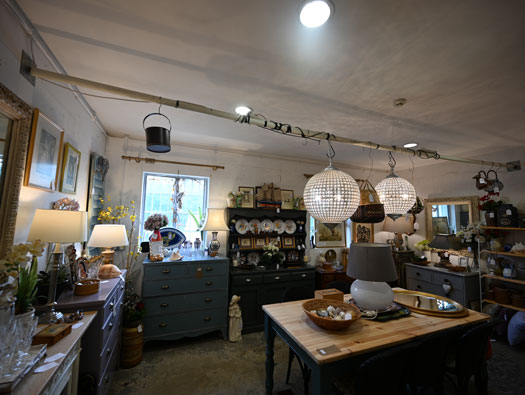

Officers Mess inside.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.

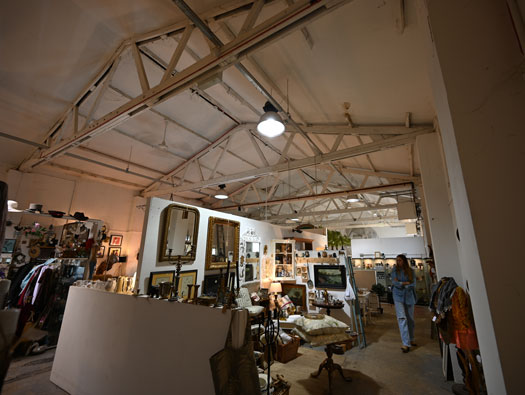

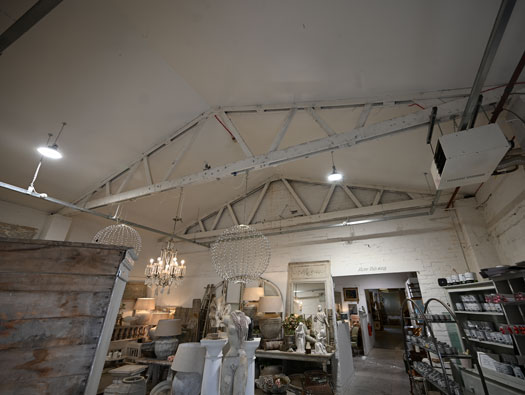

This is the main room, there would have been large windows all down the left side and the wall to the side and covers about 3/4 of the width.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
This is the other side of the last picture and is about 1/3 of the width and runs right down the length as well.
How this all worked out, I have no idea. I have never seen internal photos of the Offices Mess's.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.

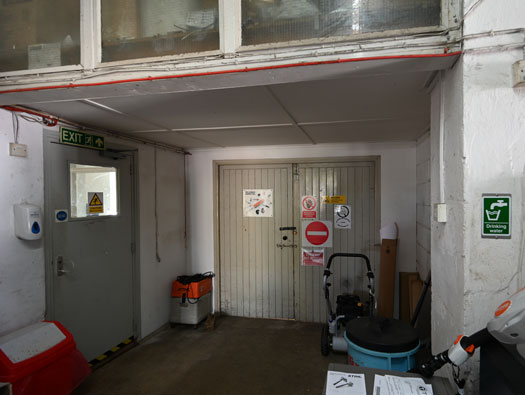

Now out of the back possibly food preparation/kitchen area.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.
Further out and consensus of myself and the very kind gentleman from the company. That this was possibly meat preparation area. A high walled room, with what we thought was the site of an over head water tank. The internal wall and door are more modern.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.

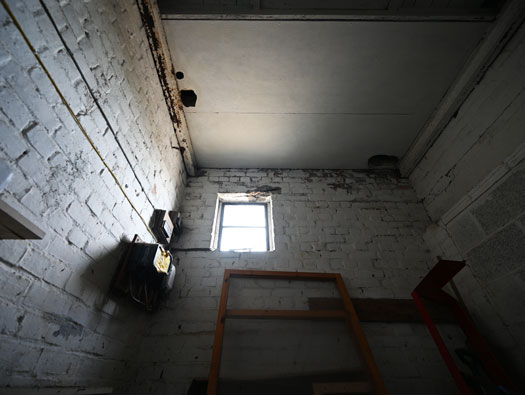

The high square room is the one we were last in and further on could be the main cooking area, thus the chimney?.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.

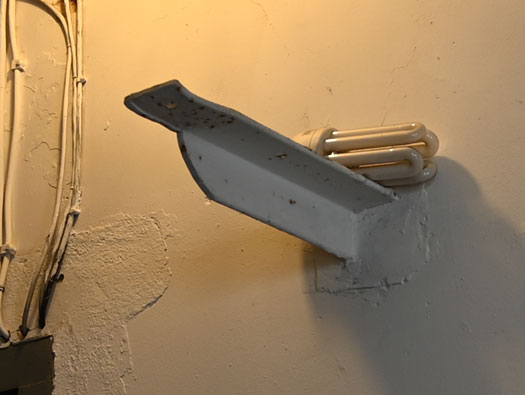

Wall brackets run all along the inside and the prep area.
20 September 2025
RFC/RAF Weston-on-the-Green
24 on plan.
Officers Mess.

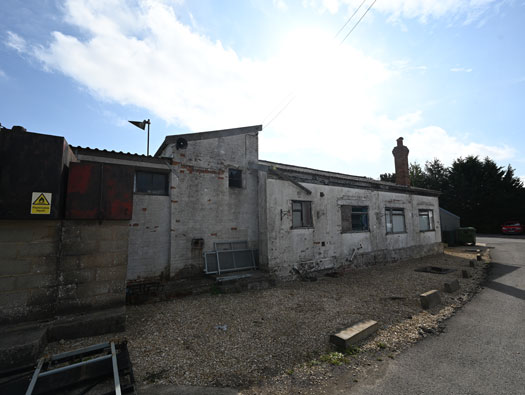

This is the rear area and this may be an extension?? it look it.
20 September 2025

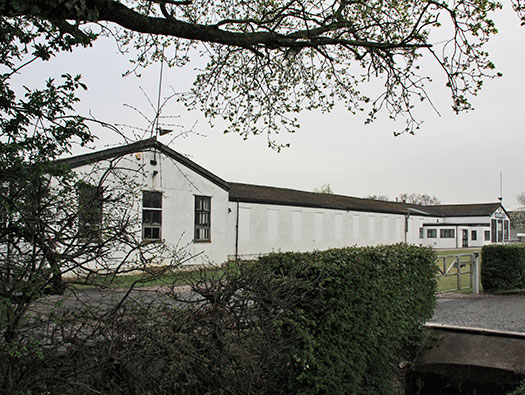

RFC/RAF Weston-on-the-Green
24 on plan.
The Officers Mess.

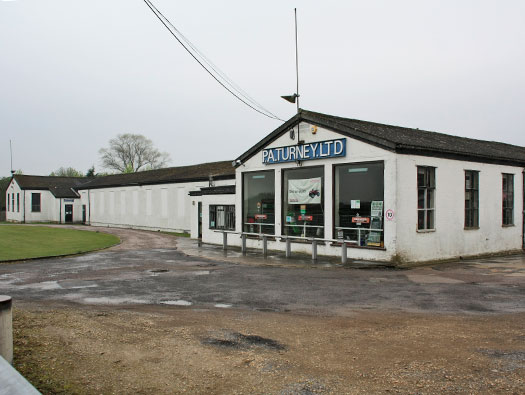

Back to the front and you see all the front windows bricked up.
There are plans to pull it down and replace it with a purpose built shop and workshops. Difficult to agree with them, but what else can they do. The building is old, its not fit for their purposes and if they were made to leave it. What would it be used for??
25 April 2010
RFC/RAF Weston-on-the-Green

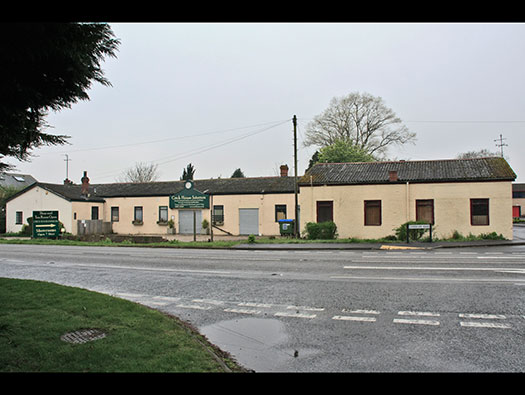

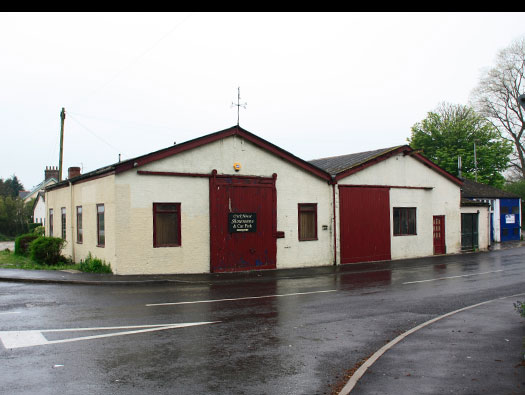

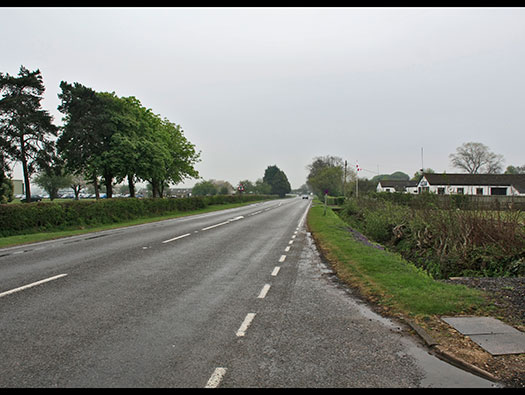

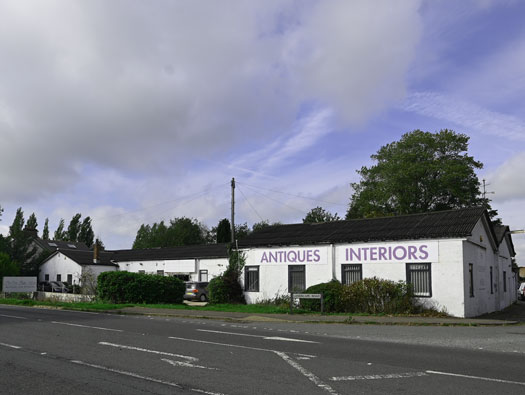

Back to the B430 looking due south and on the right is what I feel is the WW1 RFC/RAF Officers Mess.
25 April 2010
