Wn208 'Gabelweihe', Pointe aux Oies E. Bttr.
WN · K.V.Gruppe Boulogne · AOK 15 Nord Pas de Calais · France
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
A Dombunker for two K5 railway guns, an air-raid shelter at the station and more around the site.
Facebook Chrris-toff Thery
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
Batterie E.713
1 x Dombunker
3 x Vf bunkers
1 x SK/Peilstand (FCP)
2 x 5cm KwK Ringstand's
1 x Luftschutzbunker
2 x 28cm K5 railway guns
2 x 2cm Flak 30.
2 x 2cm Flak 38.
2 x 5cmKwK L/42
1 x 2cm KwK 38.
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

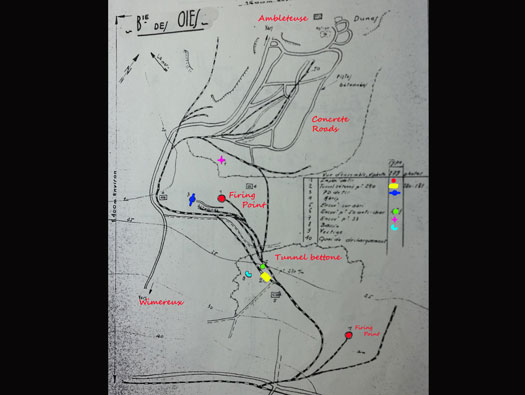

Batterie E.713
1 x Dombunker yellow.
3 x Vf bunkers.
1 x SK/Peilstand (FCP) blue.
2 x 5cm KwK Ringstand's.
1 x Luftschutzbunker.
2 x 28cm K5 railway guns.
2 x 2cm Flak 30.
2 x 2cm Flak 38.
2 x 5cmKwK L/42
1 x 2cm KwK 38.
2 x firing points red.
x 3.7cm Flak purple.
SHM
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
A Dombunker was designed to store one or two K5 railway guns, huge 28cm barrel plus its long railway chassis with two six wheeled bogies.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
Two types of high explosive projectile were used with the K5. The 28cm G35 weighed 255 kilograms (562 lb) and contained a charge of 30.5 kilograms (67 lb) of TNT. The 28cm Gr.39 m. Hbgr. Z. was slightly heavier, weighing 265 kilograms (584 lb) and containing around 44.5 kilograms (98 lb) of TNT (Wiki).
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
The marks of the door fittings across the top.
The railway guns arrived down into France from Germany in 1940 to protect the flanks of Operation Seelöwe. 1941 and with Operation Seelöwe cancelled, the guns had to go on the defensive and help cover this part of the Atlantikwall and Dombunker's were made to protect the guns. Before the Canadians arrived to capture this part of France in 1944, the guns were withdrawn to Germany.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

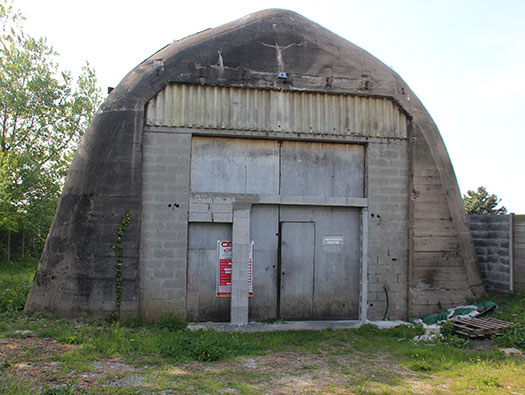

Heavy steel doors closed off the two entrances to protect the guns.
17 August 2018

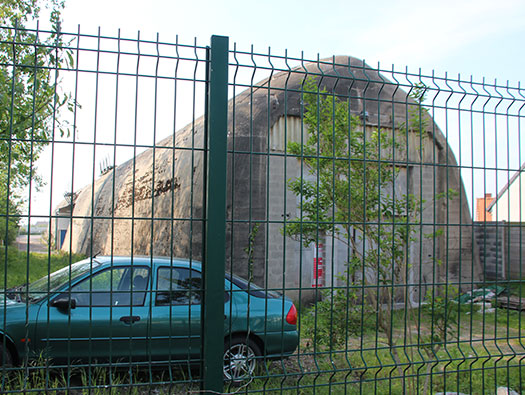

Wn208 Gabelweihe, Pointe aux Oies E. Bttr

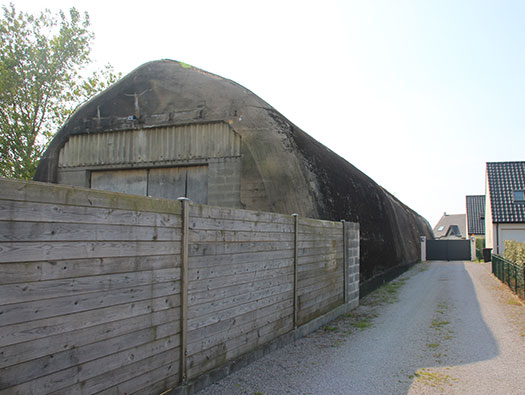

You can see the length of the building and it would have had earthed heaped up on both sides to serve as camouflage and also extra protection.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

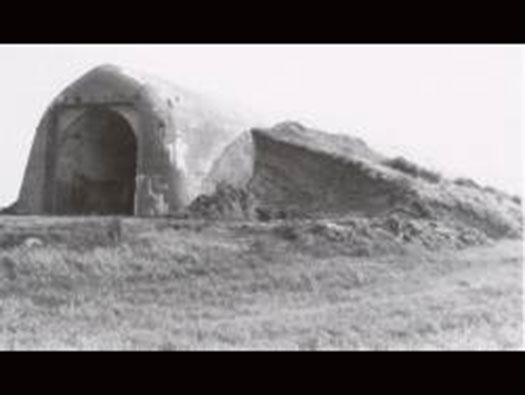

A picture of this bunker having the earth removed post war.

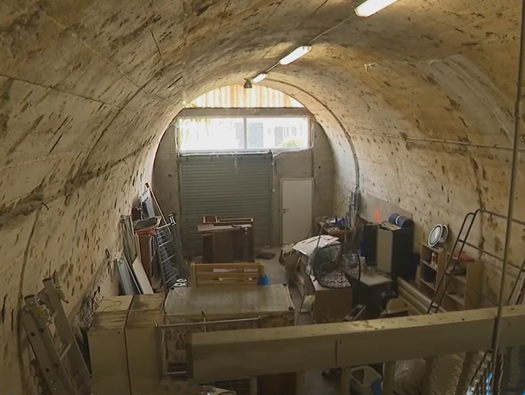

And today inside.
2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

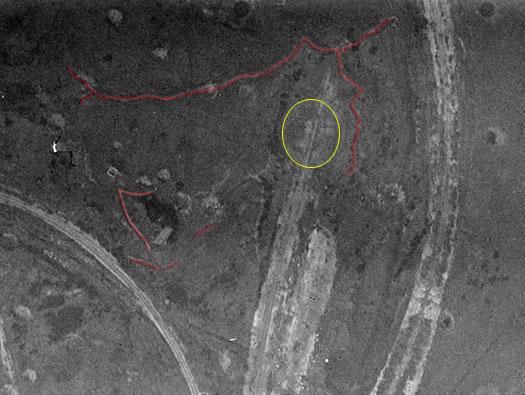

Here, there was a Vögel Turntable.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

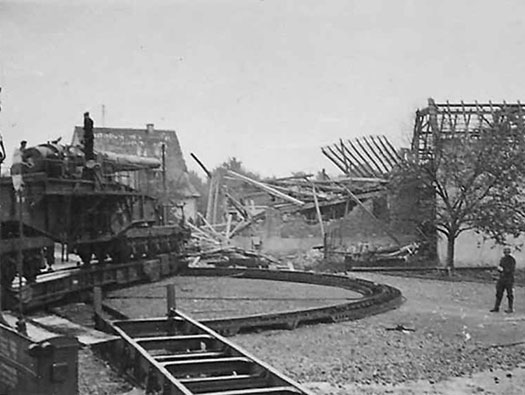

Vögel Turntable was a portable turntable that could be carried with the gun on railway trucks and assembled where it was needed. The gun was pushed up a ramp onto a railway turntable base and could turn 360°.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

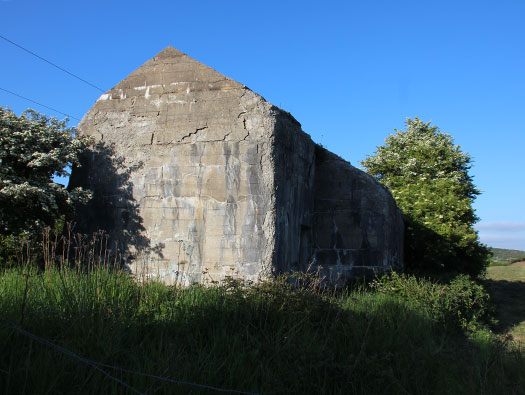

SK bunker still in somebodies garden.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

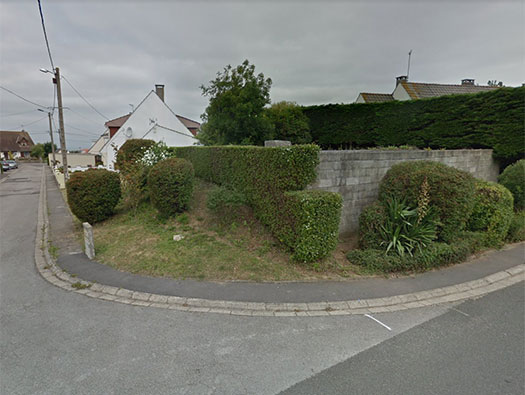

This is the second Fire point lower down now a housing estate.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

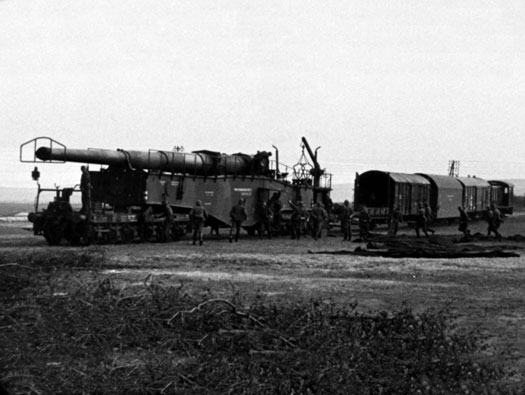

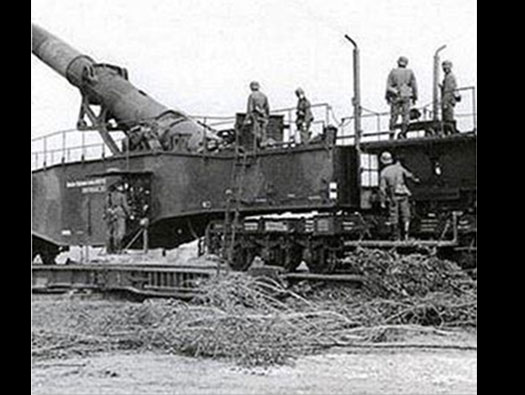

A K5 being ready to fire.
Calibre - 283mm.
Length - 30m.
Shell weight - 225kg.
Range - 64km.
1946 Geoportail
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
The railway line follows the line of the old railway along the coast.
1946 Geoportail
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

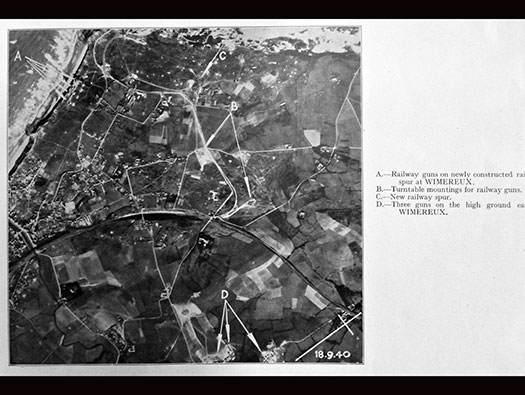

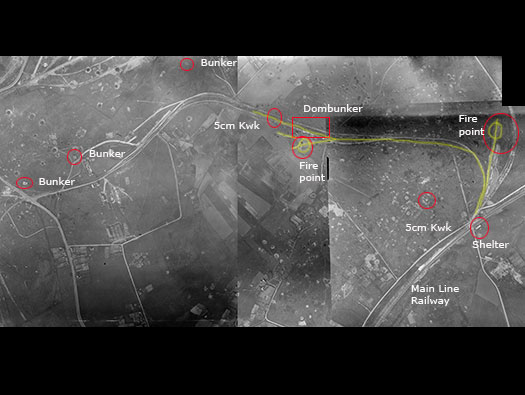

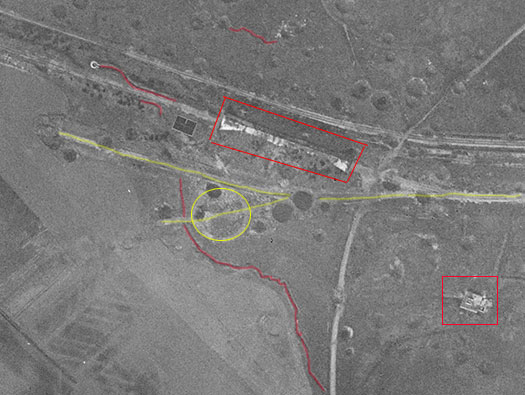

An RAF air-photo showing the gun positions.
Air 20/2335 Characteristics Air Photographs.
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

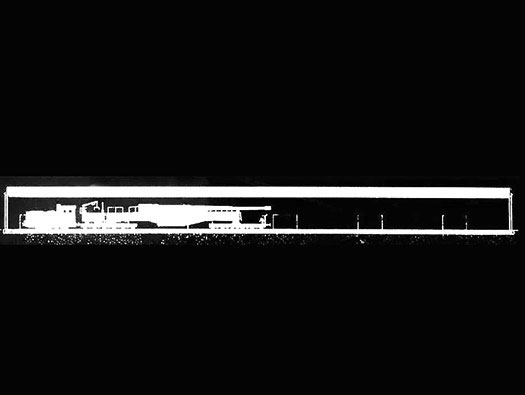

Dombunker showing the engine (diesel) and the gun in place and also showing that two guns and their engines would fit in.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

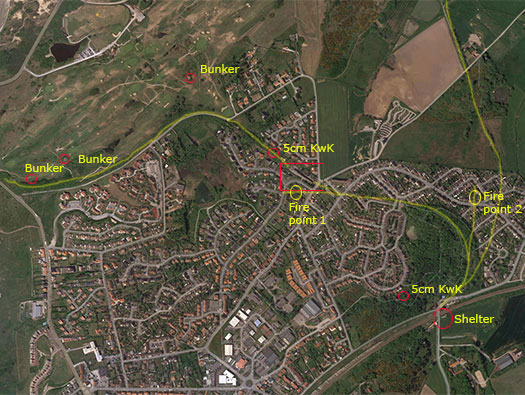

Railways station at Baston N/E of Wimereux. There is a large Luftschutzbunker (air-raid) bunker at the station.
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

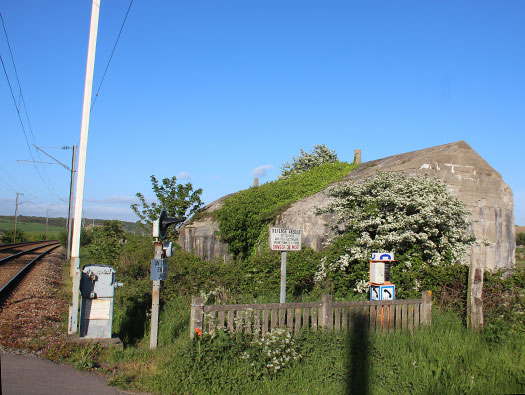

This is an air raid shelter set down by the old railway station and a level crossing on the main line and the old railway turned left and through a small valley rising up to the Dombunker. Quite a pull for an engine.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

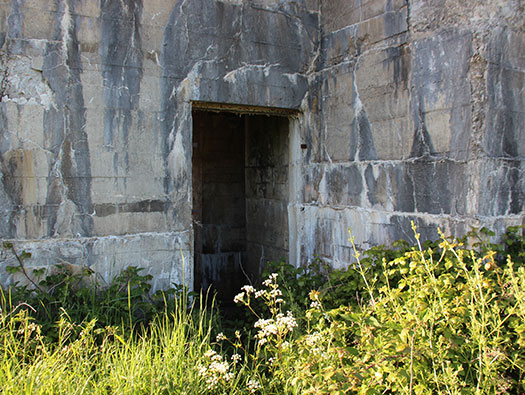

The rear entrance.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

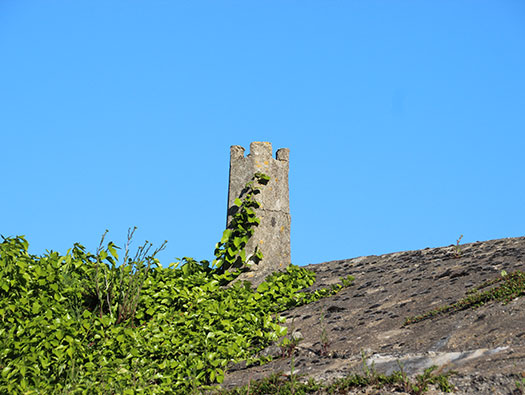

Air vent on the roof.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
Rear door.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

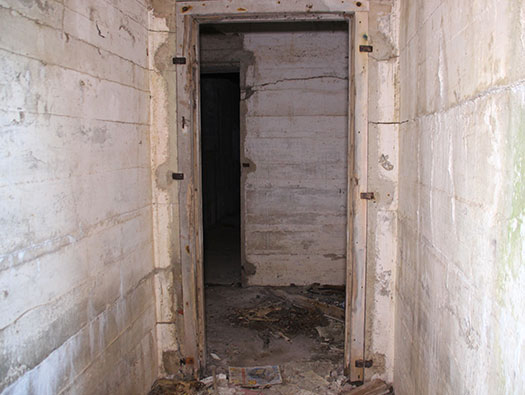

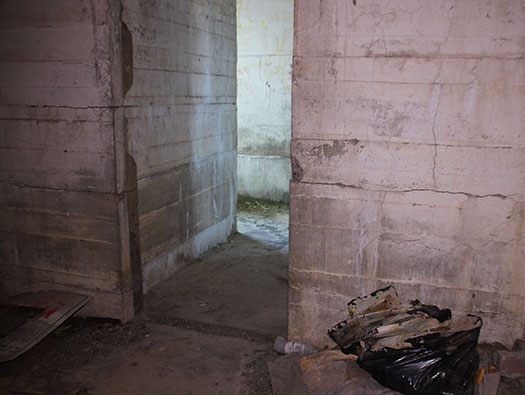

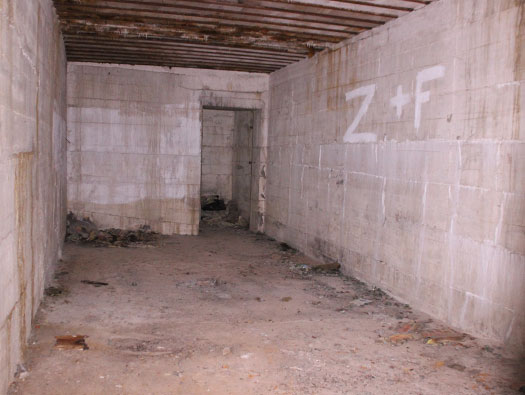

The main shelter room. I believe it was the French Railway SNCF that built the shelters, some prior to the war in preparation.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
Far door.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

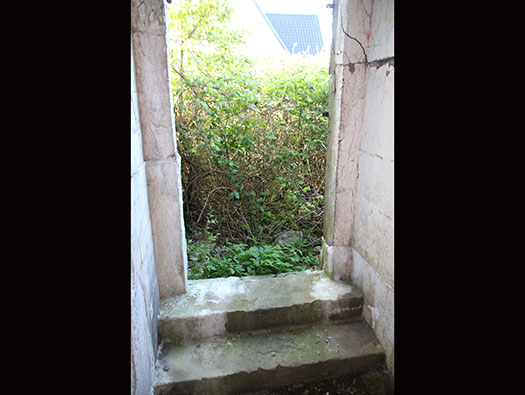

The second door almost impenetrable brambles.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

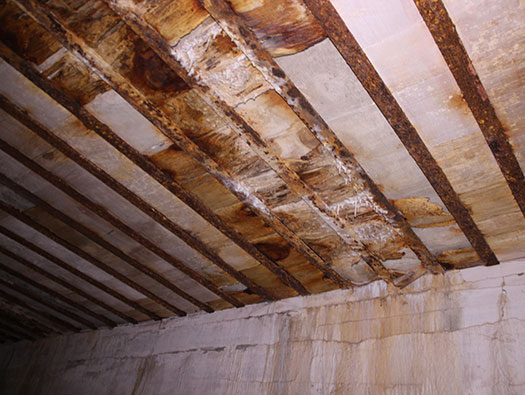

Bunker roof.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

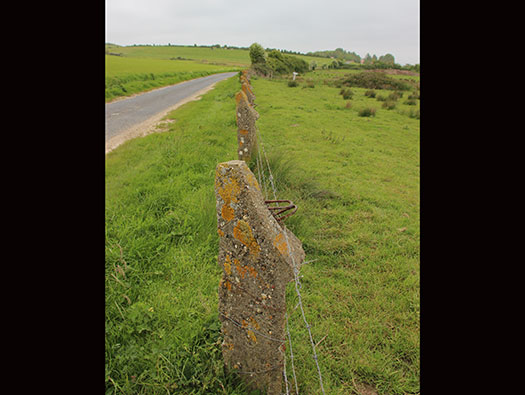

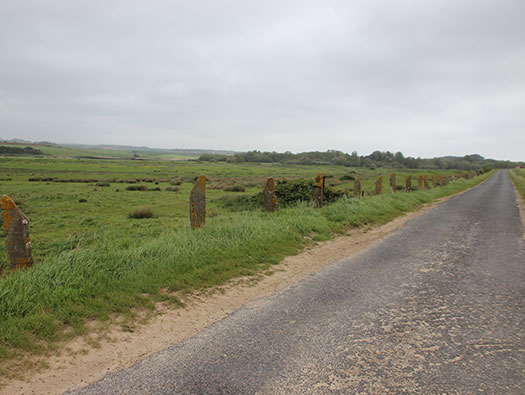

They are concrete beach defences Rommel's Asparagus.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr
The steel wire to connect the three uprights together.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

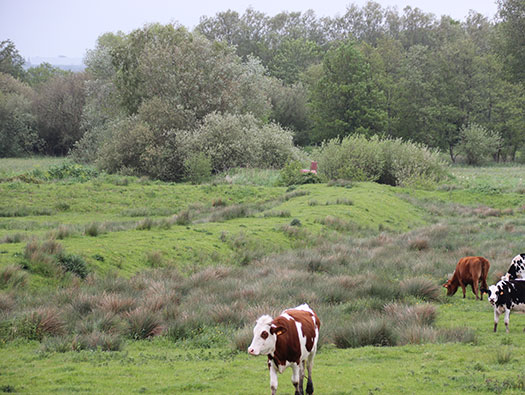

The bank through the field is a continuation of the railway line.
17 August 2018
Wn208 Gabelweihe, Pointe aux Oies E. Bttr

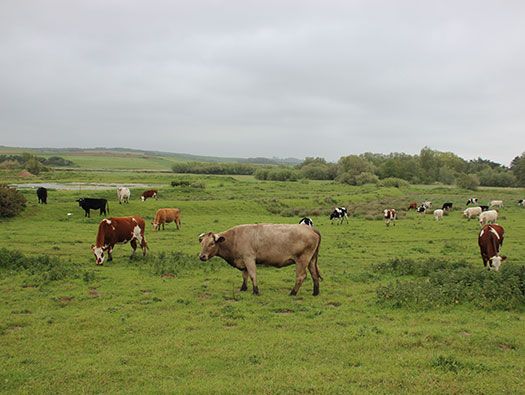

You can see the embankment here. It leads to the left to the next E Batterie at StP Schwarztal, Noirbernes, K.V.Gruppe Wissant.
17 August 2018
