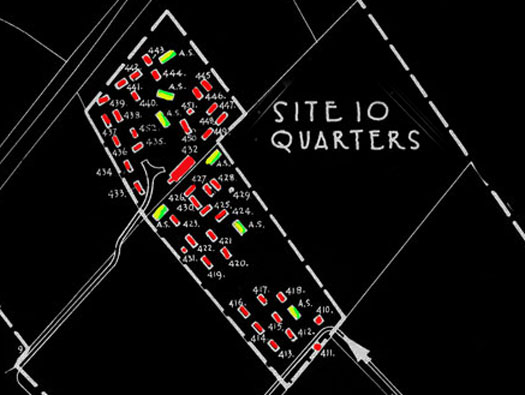

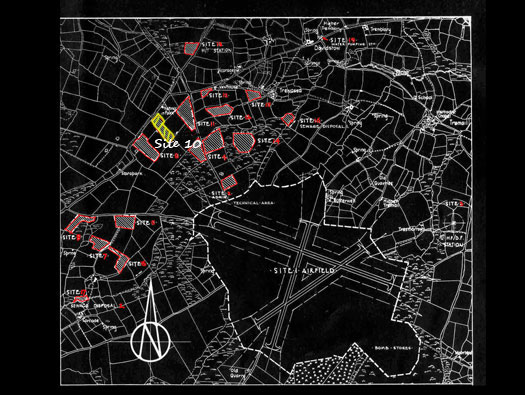

RAF Davidstow Moor Site No.10 Quarters.

410 - Picket Post - N - 12404/41.
411 - M&E Plinth- 10 K.V.A.
412to417 - Quarters Officers - H.C. - 4men - 14420/41.
418 - Ablutions & Latrines Officers - C.B. - 17to24men - 16330/41.
419to428 - Quarters Sergeants - H.C. - 8men - 14420/41.
429to431 - Latrines Sergeants - C.B. - 32men - 16330/41.
432 - Ablutions & Drying Rooms Sergts' & A/men - C.B. - [57to80Sgt 181to252A/M] - 16329/41.
433to450 - Quarters Airmen - H.C. - 12men - 14420/41.
451 - Latrines Airmen - C.B. - 16330/41.
452 - Latrines Sergeants - 32men - C.B. - 16330/41.
C.B. = Concrete block.
H.C. = Hand Craft Hut.
N     = Nissen.

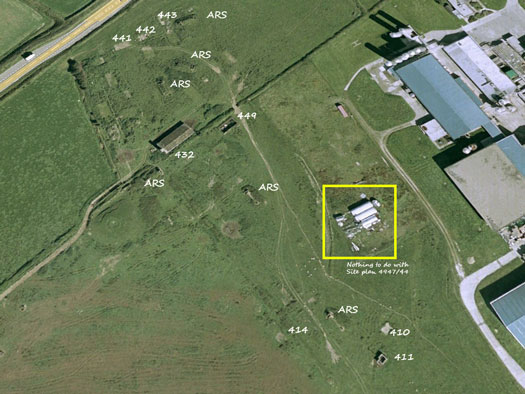

410 - Picket Post - N - 12404/41.
411 - M&E Plinth - 10 K.V.A.
414 - Quarters Officers - H.C. - 4men - 14420/41.
421to423 - Quarters Sergeants - H.C. - 8men - 14420/41.
432 - Ablutions & Drying Rooms Sergts' & A/men - C.B. - [57to80Sgt 181to252A/M] - 16329/41.
ARS - Stanton Air-Raid shelters.

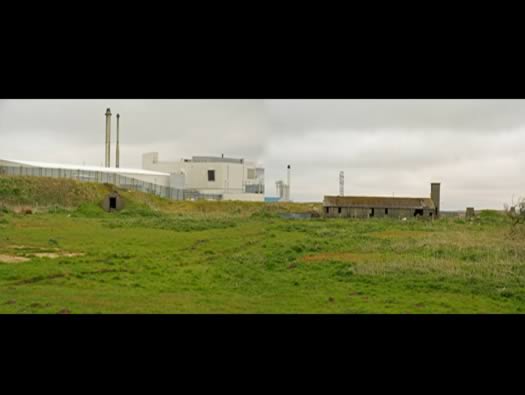

All that was left in 2012.
432 - Ablutions & Drying Rooms Sergts' & A/men - C.B. - [57to80Sgt 181to252A/M] - 16329/41.

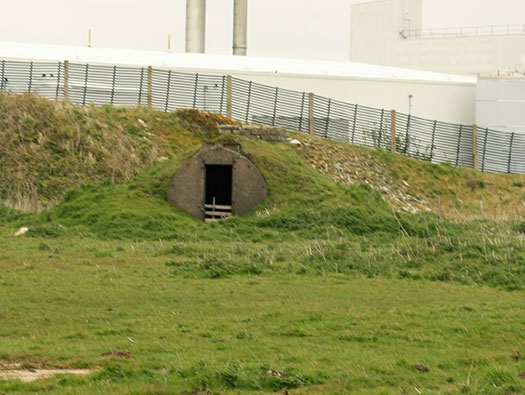

ARS - Stanton Air-Raid shelters.

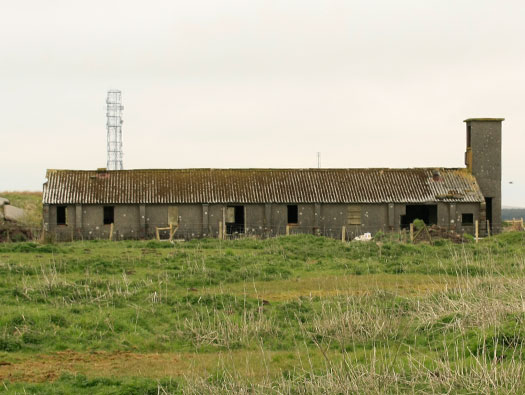

432 - Ablutions & Drying Rooms Sergts' & A/men - C.B. - [57to80Sgt 181to252A/M] - 16329/41.
The design no. is 16329/41, which could be made in Nissen or Temporary Brick. T.B. is a half brick wall with buttresses equally spaced along the walls. Here they uses a concrete block as I am sure they were locally sourced. The windows would have been a standard Crittall steel frame. The tower on the end held the water reservoir in the top and a boiler house below. Coal would have been drawn from the Fuel Store in Site No.9. Usually a civilian boiler man would be employed to keep several boilers working, moving around the different sites on a bicycle.

432 - Ablutions & Drying Rooms Sergts' & A/men - C.B. - [57to80Sgt 181to252A/M] - 16329/41.

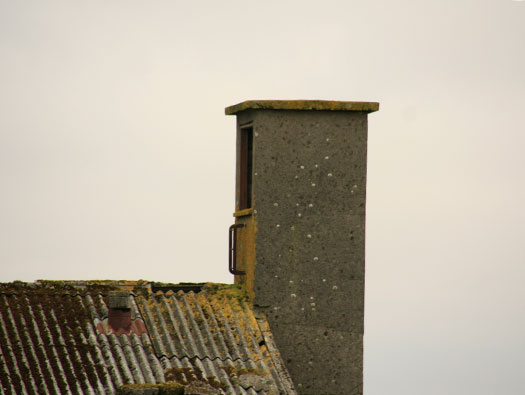

The water tower and chimney with access into the water tank via a ladder and hand rails attached to he tower.
