RAF Davidstow Moor, Site No.14 Quarters.

Quarters for at least 200 Officers, Sergeants and Airmen. 4 Officers to a hut in single rooms, 8 Sergeants to a hut in double rooms and 12 Airmen to an open hut.

RAF Davidstow Moor, Site No.14 Quarters.

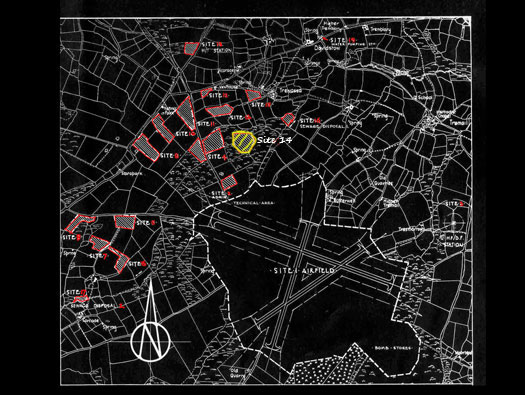

Site No.14 not far from Site No.6 communal, where all the Mess's are the Institute and more. Not a very long walk.

AIR 20/7587

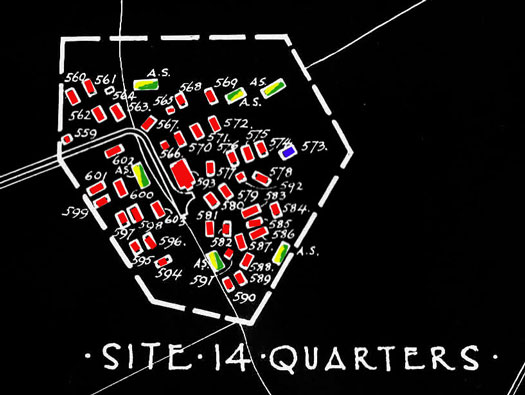

RAF Davidstow Moor, Site No.14 Quarters.

559 - Picket Post - N - 12404/41.
590to593 - Quarters Sergeants - H.C. - 8men - 14420/41.
564to566 - Latrines Sergeants - C.B. - 16330/41.
567to572 - Quarters Sergeants - N - 8men - 14420/41.
573 - Static Water Pool.
574 - 590 - Quarters Airmen - N - 12men - 14420/41.
591to592 - Latrines Airmen - N - 16330/41.
593 - Ablutions & Drying Room Sergts. & A/men - [57to80Serg 181to252men] - 16329/41.
594to602 - Quarters Officers - H.C. 4men - 14420/41. 603 Ablutions & Latrines Officers - C.B. 17to24men - 16330/41.

AIR 20/7587

RAF Davidstow Moor, Site No.14 Quarters.

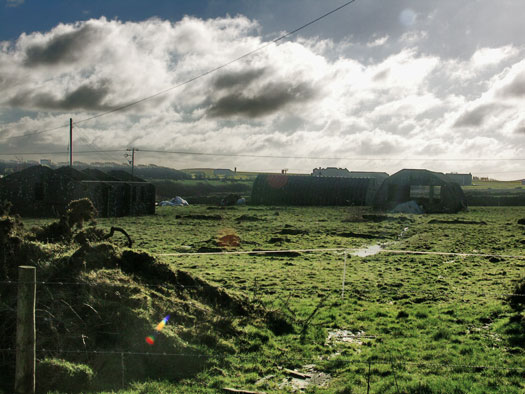

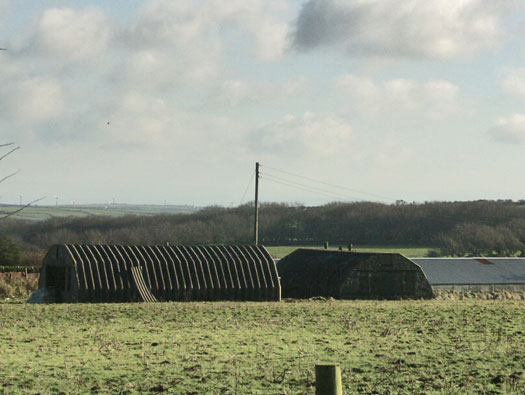

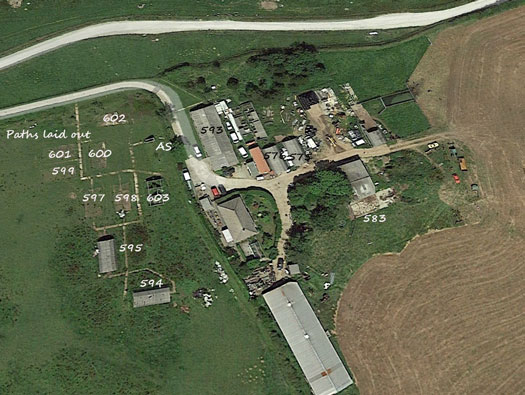

Quarters for at least 200 Officers, Sergeants and Airmen. 4 Officers to a hut in single rooms, 8 Sergeants to a hut in double rooms and 12 Airmen to an open hut. The Officers were in the huts on the left, Airmen around hut 583 and in Nissen huts. Sergeants at the top of the site.

google

RAF Davidstow Moor, Site No.14 Quarters.

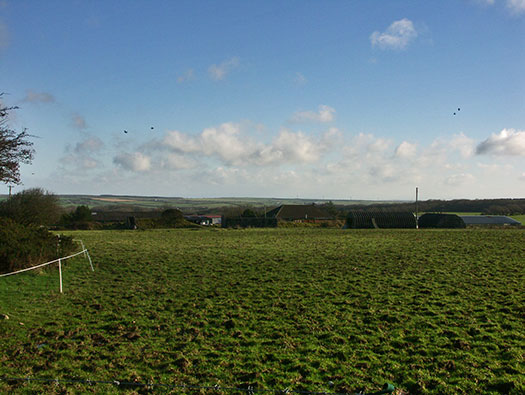

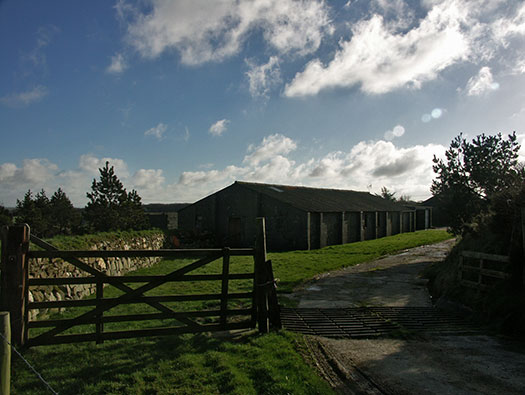

The site as you walk down the track.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.

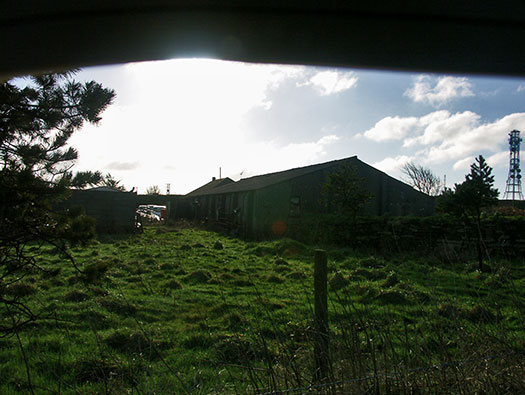

594 and 595 Officers Quarters in Hand Craft huts.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.

594 and 595 Officers Quarters in Hand Craft huts.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.

593 - Ablutions & Drying Room Sergts. & A/men - [57to80Serg 181to252men] - 16329/41. Made of concrete blocks to an Air Ministry plan 16329/41. But could also have been made in 4inch brick or Nissen. The layouts inside would be very similar.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.

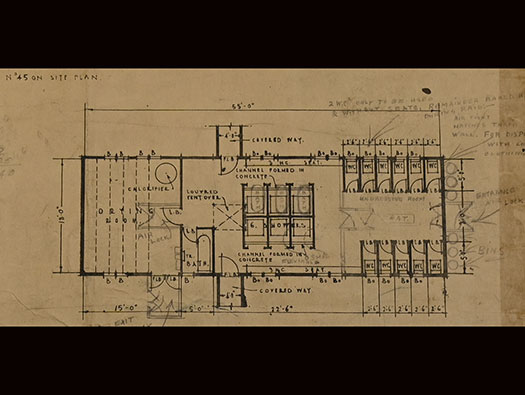

Ablutions & Drying - 7665/39 very like 16329/41. It shows toilets, showers, baths and a drying area..

AR Plan 7665/39 ARGAR Plan 7665/39 ARG

RAF Davidstow Moor, Site No.14 Quarters.

593 - Ablutions & Drying Room Sergts. & A/men - [57to80Serg 181to252men] - 16329/41.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.

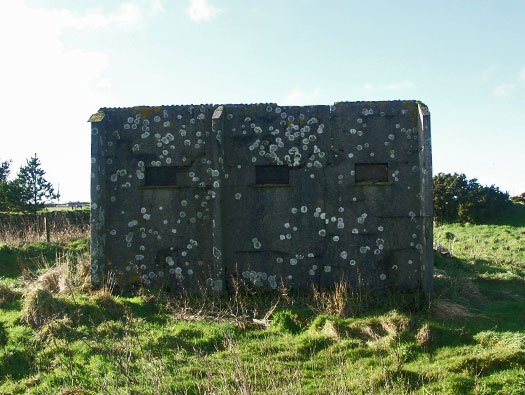

565 - Latrines Sergeants - C.B. - 16330/41.
One of the Sergeants Latrines where on a dark night after a long session in the pub, this is where he would find himself.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.

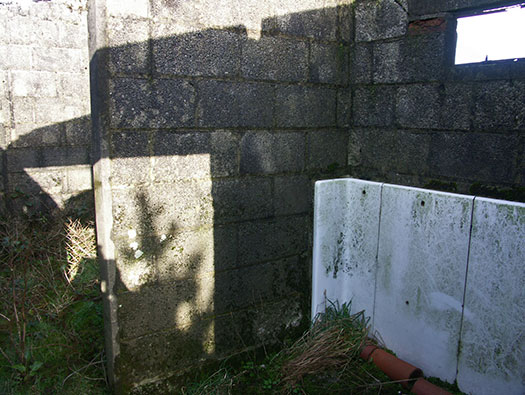

Inside the urinal and a toilet. Remember these were not heated and usually the door had been left open BRRRR. Its not been cleaned for a while.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.

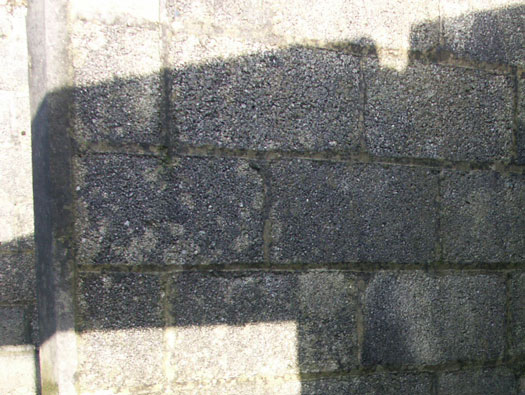

I have mentioned Concrete Block and these were the blocks used to build instead of the standard red brick of most RAF camps of the period. They must have been made locally from quarried stone.

22 January 2005

RAF Davidstow Moor, Site No.14 Quarters.
